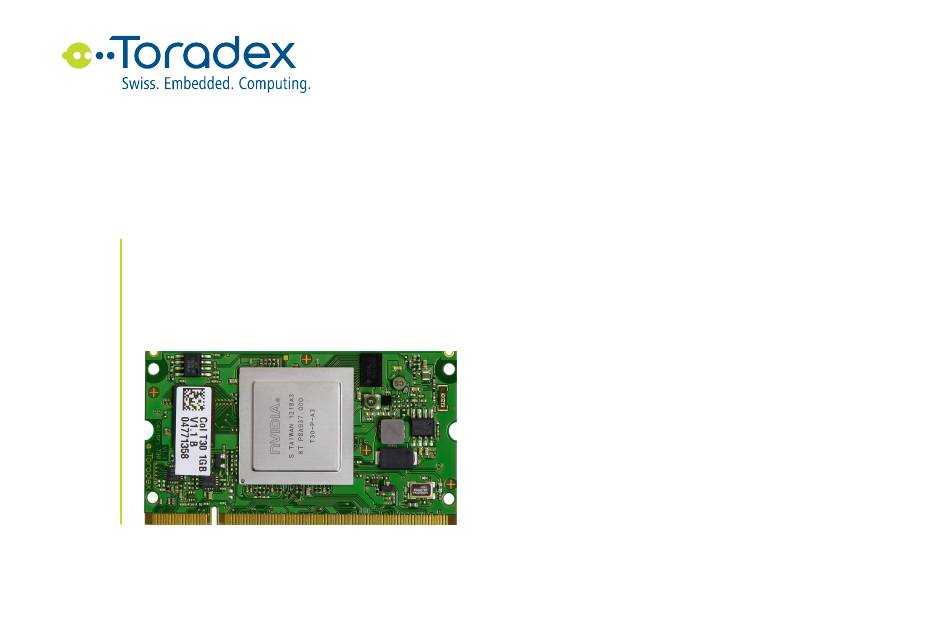

- Page 1 Toradex Colibri Migration Guide...
- Page 2 Add first preliminary information for the Colibri T20 06-Sep-10 Rev. 2.1 Added details for Colibri PXA270 V2.2 and Colibri PXA320 V2.0 modules (Chapter 3, notes 10 and 11) Add information about Colibri T20 address signals (Chapter 3, note 24) 27-Dec-10 Rev.
-
Page 3: Table Of Contents
Compatibility List Colibri PXAxxx Modules ..................9 SODIMM Connector ........................9 Extension Connector (on the back of the Module) ............... 14 Page | 3 Toradex AG l Altsagenstrasse 5 l 6048 Horw l Switzerland l +41 41 500 48 00 l www.toradex.com info@toradex.com... -
Page 4: Introduction
Toradex Colibri Migration Guide 1. Introduction This migration guide contains the needed steps to switch between the several Toradex Colibri modules and some general design guidelines. We are always enhancing our Colibri module software. Visit our web page for BSP updates. http://developer.toradex.com... -
Page 5: Migration Guide For Colibri Modules
Audio and Touch interface No Audio and Touch interface Audio and Touch interface Audio and Touch interface Audio and Touch interface Page | 5 Toradex AG l Altsagenstrasse 5 l 6048 Horw l Switzerland l +41 41 500 48 00 l www.toradex.com info@toradex.com... -
Page 6: Migration Guide For Colibri Evaluation Board V3.1
Insert the Colibri module into the Orchid and power the device. The WinCE will start up and all interfaces will. Page | 6 Toradex AG l Altsagenstrasse 5 l 6048 Horw l Switzerland l +41 41 500 48 00 l www.toradex.com... -
Page 7: Protea V1.1
Insert the Colibri module into the Protea and power the device. The WinCE will start up and all interfaces will work (except CAN and RS485/422 because this drivers aren’t included in the Toradex standard WinCE image). Page | 7 Toradex AG l Altsagenstrasse 5 l 6048 Horw l Switzerland l +41 41 500 48 00 l www.toradex.com... -
Page 8: Design Guide For Customer Specific Hardware
3. SODIMM pin 22 is nVDD_FAULT on the Colibri PXA270 and nGPIO_RESET on the Colibri PXA3x0. Make sure you have the proper glue logic to generate the right behavior if both modules will be used. -
Page 9: Compatibility List Colibri Pxaxxx Modules
GPIO-L.07 CIF_DD<9>, KP_MKOUT<3> SDA2 (PS2 Keyboard GPIO) GPIO17 GPIO55 GPIO45 GPIO45 GPIO_A7 GPIO_L4 GPIO-A.07 GPIO-L.04 PWM<D> ,CIF_DD<6 > Page | 9 Toradex AG l Altsagenstrasse 5 l 6048 Horw l Switzerland l +41 41 500 48 00 l www.toradex.com info@toradex.com... - Page 10 USB3_DN USBH_N USBH1_N USBH1_N USBH1_N USBH_N USB1_DP USBC_P USBC_H_P USBC_H_P USBC_H_P USBC_P USB1_DN USBC_N USBC_H_N USBC_H_N USBC_H_N USBC_N Page | 10 Toradex AG l Altsagenstrasse 5 l 6048 Horw l Switzerland l +41 41 500 48 00 l www.toradex.com info@toradex.com...
- Page 11 GPIO_B5 GPIO11 GPIO13 GPIO19 GPIO19 GPIO-B.05 PWM<B>, CHOUT<0> GPIO_A6 GPIO16 GPIO11 GPIO17 GPIO17 GPIO-A.06 PWM<C> Page | 11 Toradex AG l Altsagenstrasse 5 l 6048 Horw l Switzerland l +41 41 500 48 00 l www.toradex.com info@toradex.com...
- Page 12 EXT_ADDRESS9 EXT_ADDRESS9 GPIO-U.03 ADDRESS9 GPIO_U4 ADDRESS10 EXT_ADDRESS10 EXT_ADDRESS10 EXT_ADDRESS10 GPIO-U.04 ADDRESS10 GPIO_U5 ADDRESS11 EXT_ADDRESS11 EXT_ADDRESS11 EXT_ADDRESS11 GPIO-U.05 ADDRESS11 Page | 12 Toradex AG l Altsagenstrasse 5 l 6048 Horw l Switzerland l +41 41 500 48 00 l www.toradex.com info@toradex.com...
- Page 13 GPIO3 GPIO-BB.00 GPIO-S.04 MM_DAT<0> GPIO_C5 GPIO118 GPIO33 GPIO22 GPIO22 GPIO-C.05 I2C_SDA GPIO_C4 GPIO117 GPIO32 GPIO21 GPIO21 GPIO-C.04 I2C_SCL Page | 13 Toradex AG l Altsagenstrasse 5 l 6048 Horw l Switzerland l +41 41 500 48 00 l www.toradex.com info@toradex.com...
-
Page 14: Extension Connector (On The Back Of The Module)
KP_MKOUT<2> GPIO108 GPIO126 GPIO4_2 GPIO4_2 KP_MKOUT<5> GPIO115 GPIO17 GPIO101 GPIO115 GPIO101 GPIO115 GPIO116 GPIO15 GPIO16 EXT_nCS0 GPIO16 EXT_nCS0 Page | 14 Toradex AG l Altsagenstrasse 5 l 6048 Horw l Switzerland l +41 41 500 48 00 l www.toradex.com info@toradex.com... - Page 15 12. These pins are used when updating the CPLD on the PXA (SODIMM pin 88, 90, 92). Do not drive these pins until the CPLD update is done. The CPLD update has to be started manually (Toradex Bootloader V3.3 and higher).
