Summary of Contents for HandHeld NAUTIZ X6

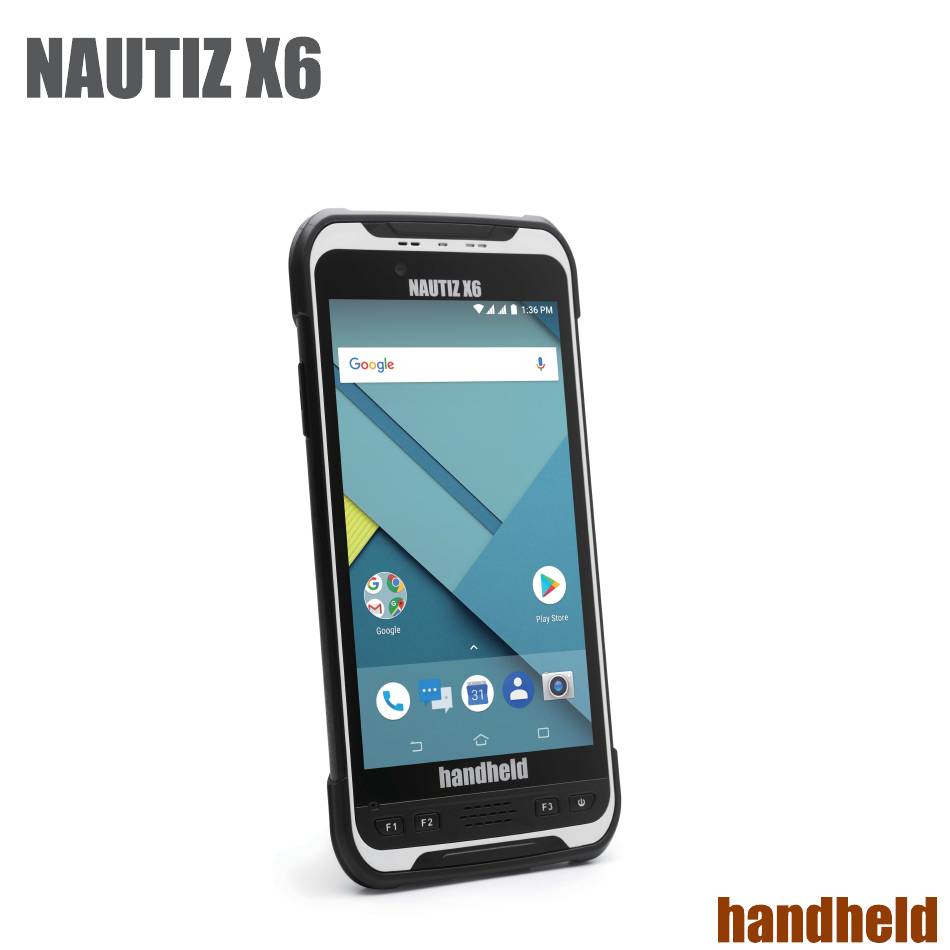

  • Page 1 MANUAL...
  • Page 6 Battery lock...
  • Page 9 Battery unlock...
  • Page 10: Barcode Scanner

    9 BARCODE SCANNER 1. Buckle the scanner to the back of the device. 2. Open the barcode scanner APK. 3. Enter any open text box, press the side scan key and the information will be returned. Side scan key...
  • Page 11 POGO PIN DEFINITION 28mm 28mm Ground PIN 3.3V UART RXD UART_RX Ground PIN UART_TX 3.3V UART TXD USB 2.0 bus Data - 10 GPIO_1 3.3V GPIO 1 USB_DM USB_DP USB 2.0 bus Data + 11 GPIO_2 3.3V GPIO 2 USB 2.0 OTG ID PIN 12 IRQ 3.3V External Interrupt PIN USB_ID...
  • Page 12 TOUCH MODES Figure 1 Figure 2...
  • Page 13 TOUCH MODES Figure 3...
  • Page 14: Gnss Antenna

    GNSS ANTENNA MMCX The voltage provided is 3.2-3.3V GNSS antenna MMCX connector...
  • Page 15 SCAN/F1/F2/F3 FUNCTION KEY SETTINGS Scan key Function key 1 Function key 2 Function key 3...
  • Page 16: Function Key Settings

    FUNCTION KEY SETTINGS Figure 1 Figure 2...
  • Page 17 FUNCTION KEY SETTINGS Figure 1 Figure 2...
  • Page 18 FUNCTION KEY SETTINGS Figure 1 Figure 2...
  • Page 19 FUNCTION KEY SETTINGS Figure 1 Figure 2...
  • Page 20 NOTICE: The SAR limit of Europe is 2.0 W/kg. Device types NAUTIZ X6 has also been tested against this SAR limit. The highest SAR value reported under this standard during product certification for use at the ear is 0.26W/kg and when properly worn on the body is 1.309W/kg This device was tested for typical body - worn operations with the back of the handset kept 0.5cm from the body.
  • Page 21 NOTICE: Changes or modifications made to this equipment not expressly approved by Handheld Group AB. may void the FCC authorization to operate this equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 22 NAUTIZ X6 CE Appendix A Normal Mode RF Power Range (GSM, WCDMA) Mode Range(dBm) GSM900 31.00-33.00 GPRS900(1 Slot) 31.00-33.00 GPRS900(2 Slots) 30.00-32.00 GPRS900(3 Slots) 28.50-30.50 GPRS900(4 Slots) 26.00-28.00 EGPRS (8PSK, 1-Slot) 24.50-26.50 EGPRS (8PSK, 2-Slots) 23.00-25.00 EGPRS (8PSK, 3-Slots) 22.00-24.00 EGPRS (8PSK, 4-Slots) 21.00-23.00...
  • Page 23 Normal Mode RF Power Range (LTE) Bandwidth Mode Modulation Range(dBm) 19.80-21.80 QPSK 19.00-21.00 19.00-21.00 20 MHz 19.00-21.00 16QAM 18.00-20.00 18.00-20.00 19.80-21.80 QPSK 19.00-21.00 19.00-21.00 15 MHz 19.00-21.00 16QAM 18.00-20.00 18.00-20.00 LTE Band 1 19.80-21.80 QPSK 19.00-21.00 19.00-21.00 10 MHz 19.00-21.00 18.00-20.00 16QAM 18.00-20.00...
  • Page 24 Bandwidth Mode Modulation Range(dBm) 20.80-22.80 QPSK 20.00-22.00 20.00-22.00 20 MHz 20.00-22.00 16QAM 19.00-21.00 19.00-21.00 20.80-22.80 QPSK 20.00-22.00 20.00-22.00 15 MHz 20.00-22.00 16QAM 19.00-21.00 19.00-21.00 LTE Band 3 20.80-22.80 QPSK 20.00-22.00 20.00-22.00 10 MHz 20.00-22.00 16QAM 19.00-21.00 19.00-21.00 20.80-22.80 QPSK 20.00-22.00 20.00-22.00 5 MHz 20.00-22.00...
  • Page 25 20.80-22.80 QPSK 20.00-22.00 20.00-22.00 3 MHz 20.00-22.00 16QAM 19.00-21.00 19.00-21.00 LTE Band 3 20.80-22.80 1.4 MHz QPSK 20.00-22.00 20.00-22.00 20.00-22.00 16QAM 19.00-21.00 19.00-21.00...
  • Page 26 Bandwidth Mode Modulation Range(dBm) 19.80-21.80 QPSK 19.00-21.00 19.00-21.00 20 MHz 19.00-21.00 16QAM 18.00-20.00 18.00-20.00 19.80-21.80 QPSK 19.00-21.00 19.00-21.00 15 MHz 19.00-21.00 16QAM 18.00-20.00 18.00-20.00 LTE Band 7 19.80-21.80 QPSK 19.00-21.00 19.00-21.00 10 MHz 19.00-21.00 16QAM 18.00-20.00 18.00-20.00 19.80-21.80 QPSK 19.00-21.00 19.00-21.00 5 MHz 19.00-21.00...
  • Page 27 Bandwidth Mode Modulation Range(dBm) 21.00-23.00 QPSK 20.00-22.00 20.00-22.00 10 MHz 20.00-22.00 16QAM 19.00-21.00 19.00-21.00 21.00-23.00 QPSK 20.00-22.00 20.00-22.00 5 MHz 20.00-22.00 16QAM 19.00-21.00 19.00-21.00 LTE Band 8 21.00-23.00 QPSK 20.00-22.00 20.00-22.00 3 MHz 20.00-22.00 16QAM 19.00-21.00 19.00-21.00 21.00-23.00 QPSK 21.00-23.00 21.00-23.00 1.4 MHz 20.00-22.00...
  • Page 28 Bandwidth Mode Modulation Range(dBm) 21.00-23.00 QPSK 20.50-22.50 20.50-22.50 20 MHz 20.50-22.50 16QAM 19.00-21.00 19.00-21.00 21.00-23.00 QPSK 20.50-22.50 20.50-22.50 15 MHz 20.50-22.50 16QAM 19.00-21.00 19.00-21.00 LTE Band 20 21.00-23.00 QPSK 20.50-22.50 20.50-22.50 10 MHz 20.50-22.50 16QAM 19.00-21.00 19.00-21.00 21.00-23.00 QPSK 20.50-22.50 20.50-22.50 5 MHz 20.50-22.50...
  • Page 29 Bandwidth Mode Modulation Range(dBm) 21.50-23.50 QPSK 20.50-22.50 20.50-22.50 20 MHz 20.50-22.50 16QAM 19.50-21.50 19.50-21.50 21.50-23.50 QPSK 20.50-22.50 20.50-22.50 15 MHz 20.50-22.50 16QAM 19.50-21.50 19.50-21.50 21.50-23.50 QPSK 20.50-22.50 20.50-22.50 LTE Band 28 10 MHz 20.50-22.50 16QAM 19.50-21.50 19.50-21.50 21.50-23.50 QPSK 20.50-22.50 20.50-22.50 5 MHz 20.50-22.50...
  • Page 30 Bandwidth Mode Modulation Range(dBm) 20.00-22.00 QPSK 19.00-21.00 19.00-21.00 20 MHz 19.50-21.50 16QAM 18.00-20.00 18.00-20.00 20.00-22.00 QPSK 19.00-21.00 19.00-21.00 15 MHz 19.50-21.50 16QAM 18.00-20.00 18.00-20.00 LTE Band 38 20.00-22.00 QPSK 19.00-21.00 19.00-21.00 10 MHz 19.50-21.50 16QAM 18.00-20.00 18.00-20.00 20.00-22.00 QPSK 19.00-21.00 19.00-21.00 5 MHz 19.50-21.50...
  • Page 31 Bandwidth Mode Modulation Range(dBm) 20.00-22.00 QPSK 19.00-21.00 19.00-21.00 20 MHz 19.00-21.00 16QAM 18.00-20.00 18.00-20.00 20.00-22.00 QPSK 19.00-21.00 19.00-21.00 15 MHz 19.00-21.00 16QAM 18.50-20.50 18.50-20.50 LTE Band 40 20.00-22.00 QPSK 19.00-21.00 19.00-21.00 10 MHz 19.00-21.00 16QAM 18.00-20.00 18.00-20.00 20.00-22.00 QPSK 19.00-21.00 19.00-21.00 5 MHz 19.00-21.00...
  • Page 32 Normal Mode RF Power Range (WLAN/Bluetooth) Band (GHz) Mode Channel Freq. (MHz) Range(dBm) 2412 11.50-13.50 802.11b CH 7 2442 11.50-13.50 CH 13 2472 11.50-13.50 CH 1 2412 11.50-13.50 WIFI 2.4G 802.11g CH 7 2442 11.50-13.50 (2.4~2.4835) CH 13 2472 11.50-13.50 CH 1 2412 10.50-12.50...
