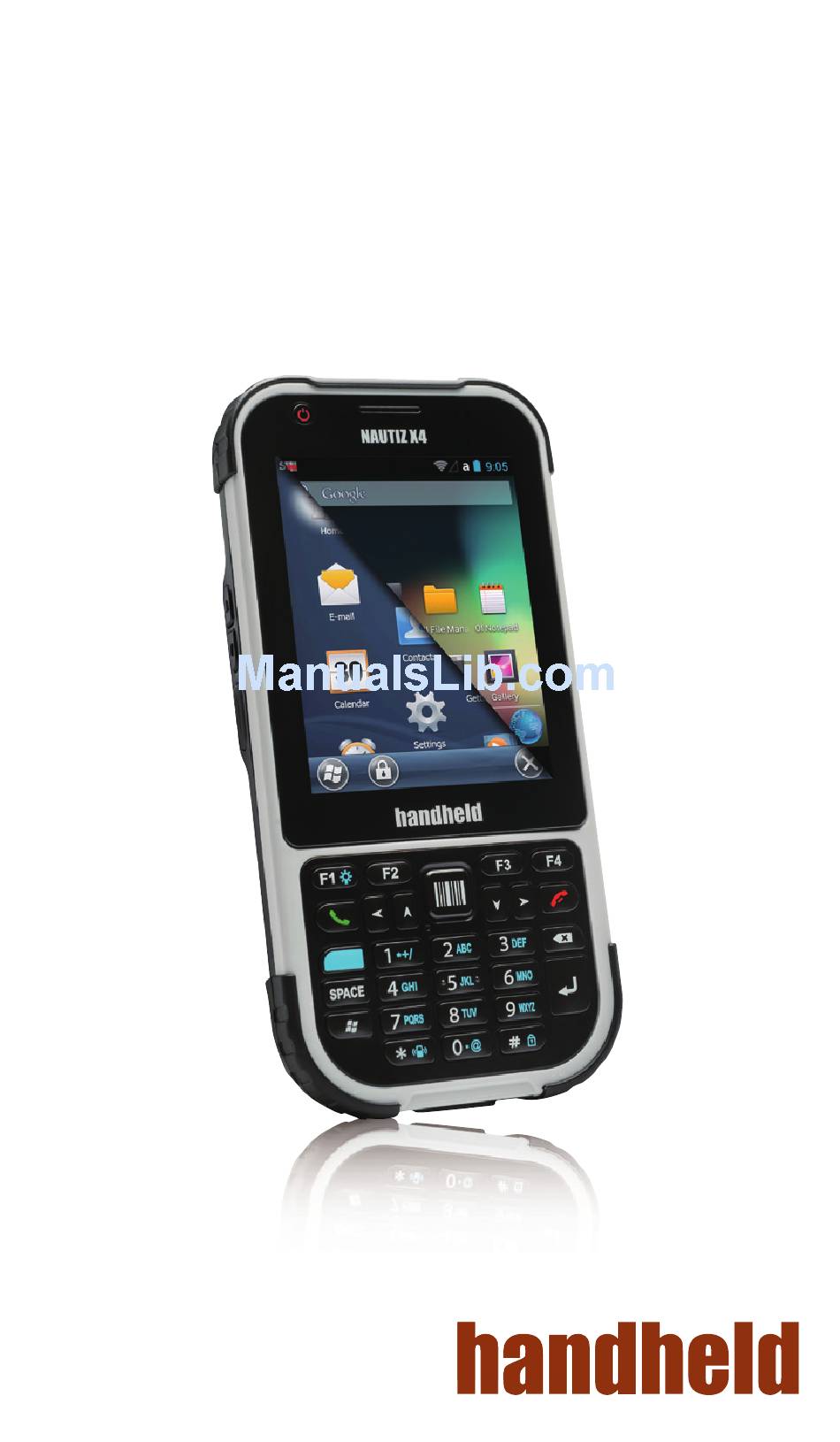

- Page 1 NAUTIZ X4 QUICK START GUIDE...
-
Page 2: What's In The Box
1 WHAT´S IN THE BOX The pictures shown below may differ from the actual products. To purchase additional or optional products, contact our customer center. Nautiz X4 Main Body (Numeric) Nautiz X4 Main Body (QWERTY) Standard battery LCD protection lm... - Page 3 2 YOUR NAUTIZ X Barcode scanner window Stylus pen Power button Speaker Power LED Noti cation LED Volume keys LCD screen Side scanner button Front scanner button Keypad USB cable connector Stylus pen strap Flash Camera Earphone jack Speaker Hand strap holder Camera Side scanner button Battery...
-
Page 4: Insert/Remove Battery
3 INSERT/REMOVE BATTERY Battery door Unlock To insert the battery 1 Remove the battery cover by sliding the door’s lock right and lift up the cover. 2 Insert the battery. 3 Replace the battery cover. To remove the battery 1 Power off the PDA. 2 Open the battery cover by slidig the door’s lock right and lift up the cover. - Page 5 4 INSERTING/EXRTRACTING SIM/MICRO SD CARD To insert the SIM/Micro SD card Insert the SIM card (or Micro SD card) in the direction of the arrow. To remove the SIM/Micro SD card Remove the SIM card (or Micro SD card) in the direction of the arrow.
-
Page 6: Powering On/Off
5 POWERING ON/OFF Press the [Power] button on the top of the terminal to turn it on/off. Power Button 6 USING STYLUS PEN Use the stylus pen to select/run/move a target on the screen. The stylus pen can be separated from the top left of the terminal. This is used to select or execute an item by touching an icon on the screen once with the stylus pen. -
Page 7: Using The Phone
7 USING THE PHONE* To make a call Run ‘Phone’ program from Start menu. Enter a phone number and press ‘Talk’ to connect the call. Redial Select ‘Talk’ button without entering new phone number. The phone will automatically connect to previous phone number. -
Page 8: Using Scanner
8 USING SCANNER Using scanner Press the [Front Scanner] or [Side Scanner] button to start scanning. Scanning Barcode To scan a barcode, keep a distance of about 10 cm between the barcode and the barcode scanner window and scan the barcode at the correct angle. To use a barcode in a specifi... -
Page 9: Connecting Activesync
PDA to user PC from <Mobile Device> folder. Please go to www.handheldgroup.com/knowledgebase to download more information. * Applies to mobile version. Nautiz X4 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The declaration of conformity may be consulted at www.handheldgroup.com/nautiz-x4/#tab=manuals...
