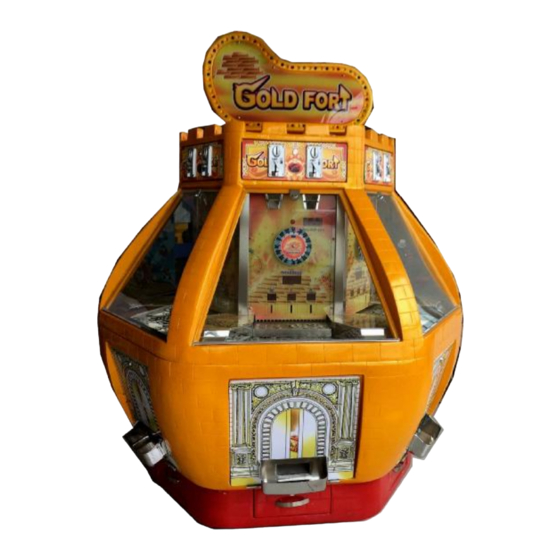

- Page 1 HomingGame Gold Fort Coin Pusher Game Machine Manual. www.hominggame.com sales@hominggame.com whatsapp:+8618688409495 Operation Manual 2016 WARNING Be sure read this Operation Manual before using your machine to ensure safe operation 。 - 0 -...
-
Page 2: Table Of Contents
HomingGame Gold Fort Coin Pusher Game Machine Manual. www.hominggame.com sales@hominggame.com whatsapp:+8618688409495 CONTENTS 1. Specifications and Parameter....………………………..1. 2. Checking the Package Contents...……………………....2. 3. Location、Installation and Moving...……………………..3. 4. Connecting the power cord and ground..…………………..5. 5. Overall construction (Components and their names)...……………..6. - Page 3 HomingGame Gold Fort Coin Pusher Game Machine Manual. www.hominggame.com sales@hominggame.com whatsapp:+8618688409495 1．Specifications (1) Rated power supply :AC 220v- 110V±5% 60Hz； (2) Power Consumption :Min power consumption：480W； :Max power consumption ：1000W； :W1675×D1500×H2000（mm） ； (3) Dimensions (4) Weight : About 200kg； Note：We will not inform the changing of the parameter in the upon else.
-
Page 4: Checking The Package Contents
HomingGame Gold Fort Coin Pusher Game Machine Manual. www.hominggame.com sales@hominggame.com whatsapp:+8618688409495 2． Checking the package contents When packed and shipped this machine consists of the following: (1)Body Assy: 1 unit (2)Accessories： Illustration Component Specification Note Power wire 1．5m φ5-20 Fuse... -
Page 5: Location、Installation And Moving
HomingGame Gold Fort Coin Pusher Game Machine Manual. www.hominggame.com sales@hominggame.com whatsapp:+8618688409495 Location、Installation and Moving 3-1. Play zone as installed WARNING ● This is an indoor machine but not a outdoor, so don ’t put it outside。 3-2.Scope for Location: Set a play zone as illustrated in the figure below to prevent... - Page 6 HomingGame Gold Fort Coin Pusher Game Machine Manual. www.hominggame.com sales@hominggame.com whatsapp:+8618688409495 3-4. Fixation for the machine. Install this machine at a plane position, Adjust the high of the four level adjustors, lower them until the casters are about 5mm from floor level (so as to rotate freely).
- Page 7 HomingGame Gold Fort Coin Pusher Game Machine Manual. www.hominggame.com sales@hominggame.com whatsapp:+8618688409495 4． Connecting the power cord and the grounding 4-1．The underside connection： If the room is used the wire layout in the floor, then connect to the underside socket, the detail explain as the following Fig...
- Page 8 HomingGame Gold Fort Coin Pusher Game Machine Manual. www.hominggame.com sales@hominggame.com whatsapp:+8618688409495 1. Rotating Signboard Assy 2. Insert coin. 3. Play field 4.Push board 5.Outing ticket 6.Coin box 5-2．Rotating Signboard Assy： Pow er B ox R oat i ng Si gnboard Speaker 1）.Rotating signboard：It is act as a adornment.
- Page 9 HomingGame Gold Fort Coin Pusher Game Machine Manual. www.hominggame.com sales@hominggame.com whatsapp:+8618688409495 5-3．Play field Dropping coin slot J ACK POT JP LED Pointer Turntable score WI N BONU S B ar WI N BONUS WIN BONUS LED W.I.N LED W.I.N. switch 1）...
- Page 10 HomingGame Gold Fort Coin Pusher Game Machine Manual. www.hominggame.com sales@hominggame.com whatsapp:+8618688409495 Sl i di ng gol d Pushi ng board C oi n board C oi n droppi ng funnel 1) Pushing board： Power on, this part will move back and forth to push out the coin.
-
Page 11: How To Play
HomingGame Gold Fort Coin Pusher Game Machine Manual. www.hominggame.com sales@hominggame.com whatsapp:+8618688409495 Lock Coin box 1）Lock：Lock 6083. 2）Coin box：Carry coins. 6． HOW TO PLAY Dropping coin slot J ACK POT JP LED Pointer Turntable score WI N BONU S B ar... -
Page 12: Adjustment
HomingGame Gold Fort Coin Pusher Game Machine Manual. www.hominggame.com sales@hominggame.com whatsapp:+8618688409495 towards jackpot. 2. Lighting the letter W.I.N wins value that the bonus LED displayed. 3. Lighting each letter wins it ’s own value. Coin in win-the 2 time turns light off letter. - Page 13 HomingGame Gold Fort Coin Pusher Game Machine Manual. www.hominggame.com sales@hominggame.com whatsapp:+8618688409495 7.2 The DIP (PLAYC8F) We do not inform the change of the mention in above! 7.3 The test button Coin Counter Ticket Counter Volume Control Ticket Reset 1. Coin counter: It recorded the coins that player inserted.
-
Page 14: Operation Manual
HomingGame Gold Fort Coin Pusher Game Machine Manual. www.hominggame.com sales@hominggame.com whatsapp:+8618688409495 3. Volume Control: Control the volume of the play music. 4. Ticket Reset: If the game experiences a ticket jam the game will hold the value of tickets owed and display them in the Bonus window, After the jam is cleared and the reset button is pressed the game will resume the ticket payout. -
Page 15: Attached Drawing
HomingGame Gold Fort Coin Pusher Game Machine Manual. www.hominggame.com sales@hominggame.com whatsapp:+8618688409495 8-1.Install and test ①. Be sure to check that you have received all packages as the Accessories chart before installing the machine. ②. Install this machine at a smooth position and adjust the level adjustor and fix to the floor. - Page 16 HomingGame Gold Fort Coin Pusher Game Machine Manual. www.hominggame.com sales@hominggame.com whatsapp:+8618688409495 Name Specification Note Up Fiberglass cover Coin chute tower Upper door plate Upper door lock Upper door Upper door fix bar False coin funnel Lock fixer Glass door lock...
- Page 17 HomingGame Gold Fort Coin Pusher Game Machine Manual. www.hominggame.com sales@hominggame.com whatsapp:+8618688409495 Power box Signboard PCB bracket Signboard PCB board Fluorescent light. Fan cover Signboard Lamp PCB board Lamp cover Signboard discharge fan Direction bushing Signboard plate Power box Discharge Fan...
- Page 18 HomingGame Gold Fort Coin Pusher Game Machine Manual. www.hominggame.com sales@hominggame.com whatsapp:+8618688409495 Name Specification Note Direction bushing Insulator Joint board Nylon bushing Copper bushing Insulate bushing Copper bushing Nylon bushing Transmission shaft Bearing 6006-2Z Bearing base Organization bracket Motor bracket Motor 60YY 220V 6W 1：250...
- Page 19 HomingGame Gold Fort Coin Pusher Game Machine Manual. www.hominggame.com sales@hominggame.com whatsapp:+8618688409495 Name Specification Note PCB Bracket LED lamp Bracket Blub LED bracket Direct lamp Direct lamp base Bracket Sensor bracket Coin door Space board Main plate cover Turntable Assy Wheel Assy...
- Page 20 HomingGame Gold Fort Coin Pusher Game Machine Manual. www.hominggame.com sales@hominggame.com whatsapp:+8618688409495 Sliding track Sliding track bracket 9-3-1．Turntable、Gold stack part Name Specification Note Turntable plate Turntable area score String axle Bearing 6002-2Z String wheel Sensor board Φ15 Washer Retractor MD-7，220V，50Hz Spring base 1...
- Page 21 HomingGame Gold Fort Coin Pusher Game Machine Manual. www.hominggame.com sales@hominggame.com whatsapp:+8618688409495 9-3-2．Pushing Coin Part Name Specification Note Pushing board Base board Block nail bracket Block nail Sliding track Sliding track bracket Motor 90YN，220V，40W，1：100 Motor base Eccentric wheel Bearing 61918-2Z Turntable...
- Page 22 HomingGame Gold Fort Coin Pusher Game Machine Manual. www.hominggame.com sales@hominggame.com whatsapp:+8618688409495 9-4．Bottom bracket Part Name Specification Note PC Board 1 Supporting board 1 Track (up) Track (down) PC Board 2 Supporting board 1 Power box Bracket Shockproof Shockproof Fix bracket...
