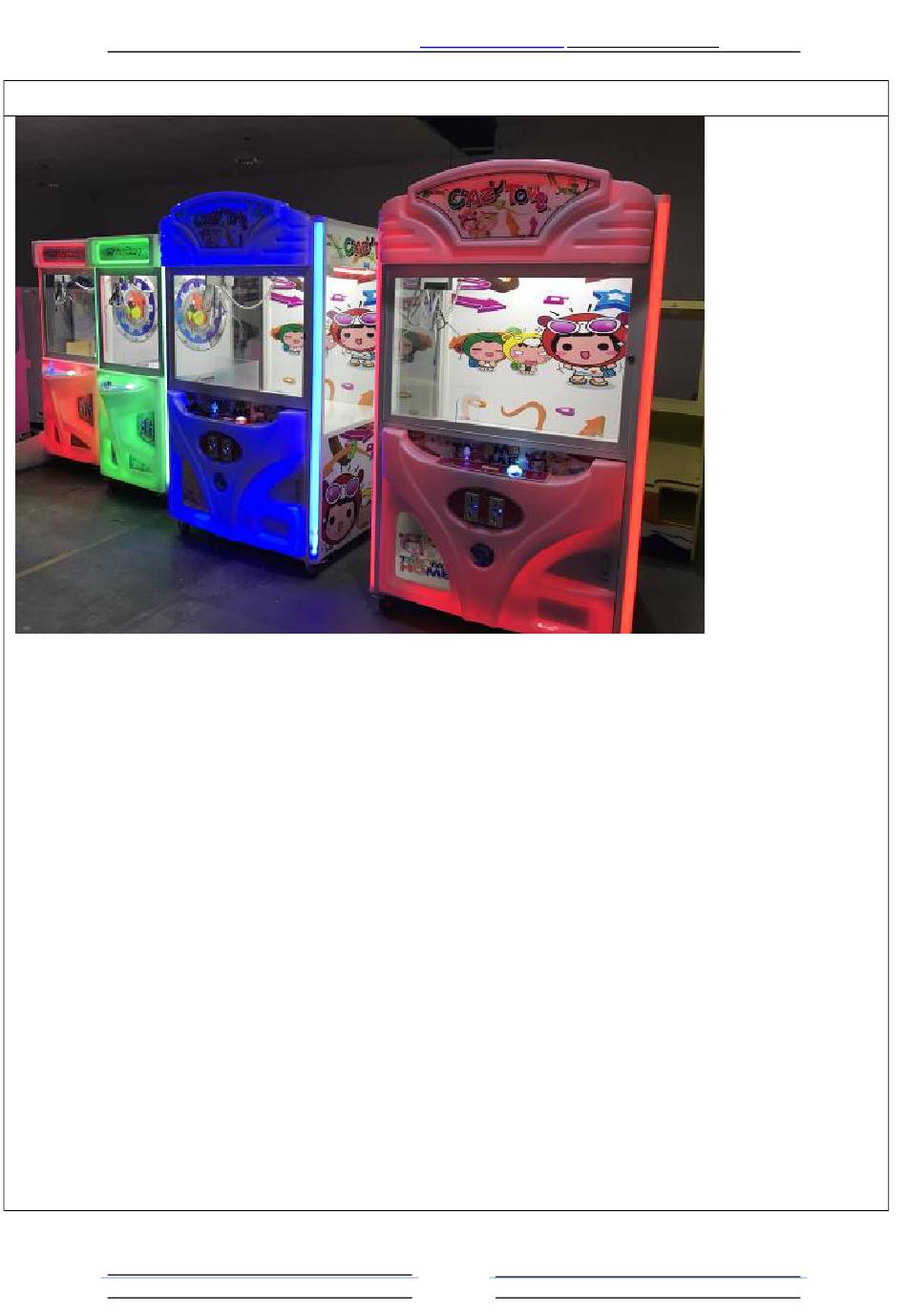

Homing Crane Machine Manual

HomingGame Crane Machine Manual www.hominggame.com sales@hominggame.com
Basic function introduction
1.CPU using ARM-CORTEX core chip, clocked up to 128Mhz.
2.SRAM to achieve 64KB, 8MB external FLASH dedicated to the storage of music as well as graphics library files
3 display screen using the STNLCD screen. User-friendly settings interface
4 the motor drive system uses the high quality relay and the high power MOSFET drive. It can work for a long time without
heating and the quality is stable and reliable
5 scalable WeChat module interface.
6 with the light eye detection interface, can accurately know how many gifts were taken
7 onboard audio power amplifier for playing music and sound effects when the game
8 minimalist installation. The complete set of connecting lines is only 4 main lines. It saves at least 30% of the time
9 intuitive fault detection system. It can clearly show the failure of the crane and the sensor failure points
10 unique procedures of the 3 claw force algorithm, intuitive adjustment of the.3 segment claw force time adjustment
11 unique crane position detection function, can detect the fuzzy crane stay in a certain position, to achieve precise loss
12 standby interface LOGO can be customized. See the top left corner of the standby interface icon can be customized.
13 unique light eye fault detection algorithm, even if the light eye damage can also be excellent to ensure the accuracy of
the object, to protect the interests of operators.
14 gift direct purchase function, so that the machine can achieve greater revenue.the real gift vending machine.
