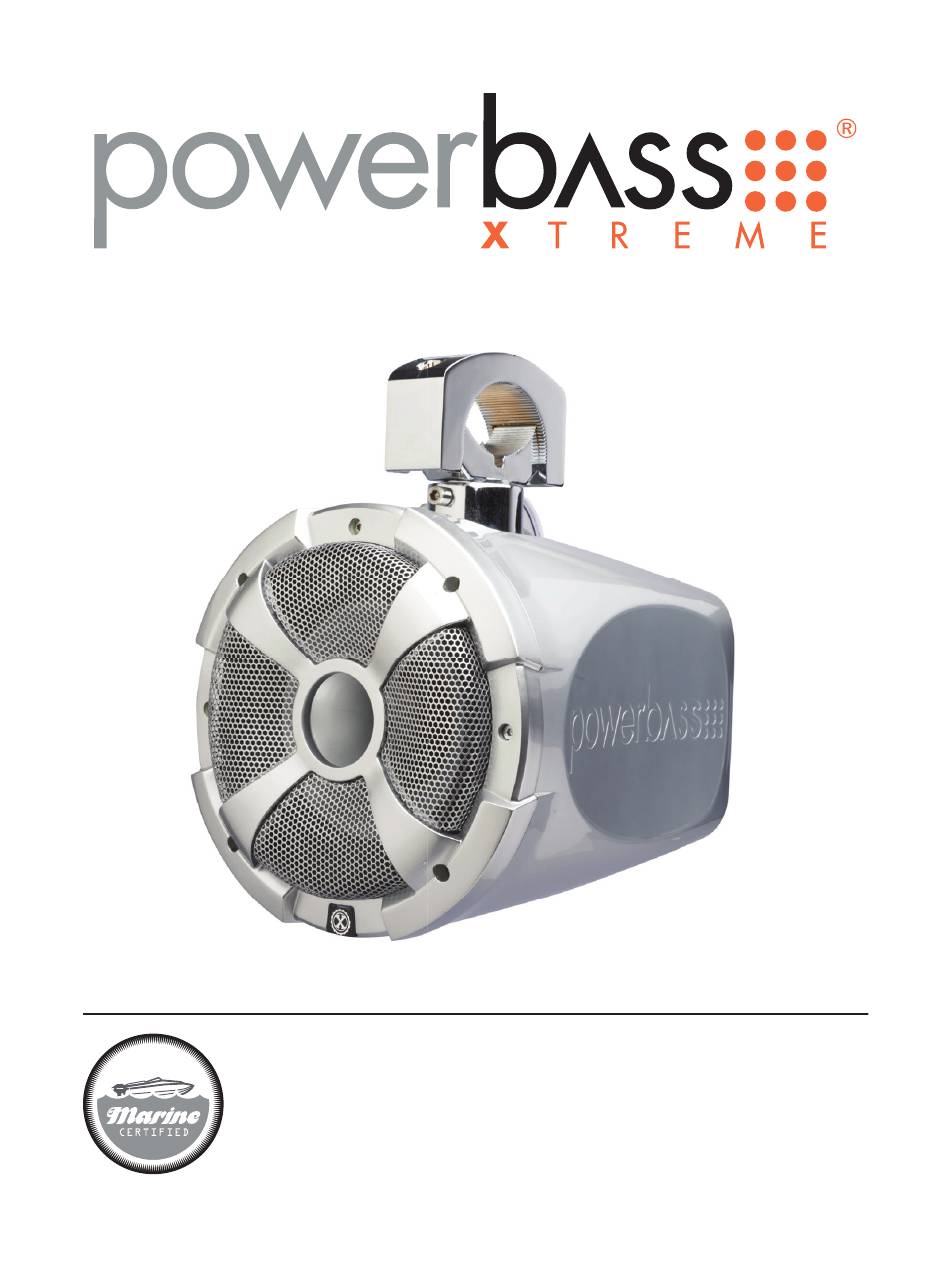

PowerBass XL-POD8LR Application Manual

Long range pod speaker system with remote controlled rgb illumination
Hide thumbs Also See for XL-POD8LR:
Table of Contents

Advertisement

Quick Links

Download this manual
XL-POD6LR
XL-POD8LR
XL-POD10LR
LONG RANGE POD SPEAKER SYSTEM
with Remote Controlled RGB Illumination
Application Guide
Please read through this manual to familiarize yourself with your new speakers. Should your
PowerBass Xtreme marine speakers ever require service, you will need to have the original dated receipt.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XL-POD8LR and is the answer not in the manual?

Questions and answers

Related Manuals for PowerBass XL-POD8LR

Summary of Contents for PowerBass XL-POD8LR

  • Page 1 LONG RANGE POD SPEAKER SYSTEM with Remote Controlled RGB Illumination Application Guide Please read through this manual to familiarize yourself with your new speakers. Should your PowerBass Xtreme marine speakers ever require service, you will need to have the original dated receipt.
  • Page 3 170 dB. Please observe all local sound ordinances while listening to your PowerBass system. PowerBass USA, Inc. accepts no liability for hearing loss, bodily injury, or property damage due to the result of use or misuse of this product.
  • Page 4 POWERBASS XTREME LONG RANGE POD FEATURES UV Stable Injection Molded Plastic Pod: Molded from marine grade polymer (poly-plastic composite) materials houses the speaker and protects it from the effects of the outdoor environment while providing great looks. Chrome Plated Die-Cast Swivel Clamp System: Solid marine-grade zinc alloy provides strength and corrosion resistance accepts bar sizes from 1.5”...

  • Page 5: Unpacking The Enclosure

    Notify your local PowerBass dealer immediately should you notice any damage prior to installing the unit. Be sure to keep the carton and packing material until your system is operational. The original boxes will do the best job of protecting your speaker system if they need to be transported.

  • Page 6: Mounting, Wiring And Connections

    PowerBass highly recommends that a professionally trained installer mount and wire the Pod. This application guide explains how to install PowerBass waketower Pods in a general sense, it may not show the exact installation method for your particular situation. If you feel unsure about personally installing this wakeboard tower Pod speaker system, don’t attempt the installation yourself.
  • Page 7 Read these instructions thoroughly before starting installation. For easier assembly, we suggest you run all wires prior to mounting your Pod speakers. Determine where the Pod will be placed on the tower bar and a what angle the speaker will be mounted. Mark the bar with a felt-tip pen.

  • Page 8: Recommended Power

    The XL-POD6LR is designed to handle up to 75 watts RMS (continuous) and 150 watts maximum (peak) of input power. The XL-POD8LR is designed to handle up to 125 watts RMS (continuous) and 250 watts maximum (peak) of input power.
  • Page 9 ENCLOSURE DIMENSIONS AND SPECIFICATIONS Specifications XL-POD6LR XL-POD8LR XL-POD10LR Woofer Size 6.5” 8.0” 10.0” Power RMS/Peak 75W/150W 125W/250W 150W/300W Frequency Response 50Hz - 22kHz 45Hz - 22kHz 40Hz - 22kHz Nominal Impedance 4-ohm 4-ohm 4-ohm Sensitivity (1W/1M) 101dB 101dB 101dB Hang Weight 8.4 lbs (3.8 kg)
  • Page 10 INSTALLATION AND OPERATION INSTALLATION: Your PowerBass Xtreme Long Range Pods come equipped with RGB lighting that can be controlled via the supplied remote control allowing the user to pick between 20 different colors and over 19 different lighting effects. You can link multiple speakers to a single RF receiver for easy control from a single remote.
  • Page 11 RGB LED CONTROLLER INSTALLATION AND OPERATION RF Receiver to the head unit Remote wire as this pulls more current than a typical turn on circuit provides. a radio power rocker switch you can use this as your power source as well. **Do not install the RGB RF receiver in enclosed metal, as this may interfere with connectivity between it and the remote controller.
  • Page 12 Connecting multiple Pods to a single receiver allows you to control the lighting and effects using a single remote control. You can connect up to 12 speakers or Pods (6 pair) to one receiver.

  • Page 13: Rgb Led Rf Remote Control

    RGB LED RF REMOTE CONTROL Your PowerBass Xtreme Marine Pods comes compelte with RGB illumation that is controlled with the supplied RF Remote Control. Use this remote control to select up to 20 different colors and over 15 different lighting effects.

  • Page 14: Care And Cleaning

    This manual is the exclusive property of PowerBass USA, Inc. Any reproduction of this manual, or use other than its intentions is strictly prohib- ited without the express consent of PowerBass USA, Inc. Copyright 2017 PowerBass USA, Inc.
  • Page 15 Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for PowerBass any other liability in connection with the sale of this product.
  • Page 16 PowerBass Xtreme (PBX) – A division of PowerBass USA, Inc. 2133 S. Green Privado – Ontario, CA 91761 Tel. (909) 923-3868 – Fax (909) 923-8048 www.powerbassusa.com...
