PowerBass XL-POD8SR Application Manual

Short range pod
Hide thumbs Also See for XL-POD8SR:

Advertisement

Quick Links

Download this manual

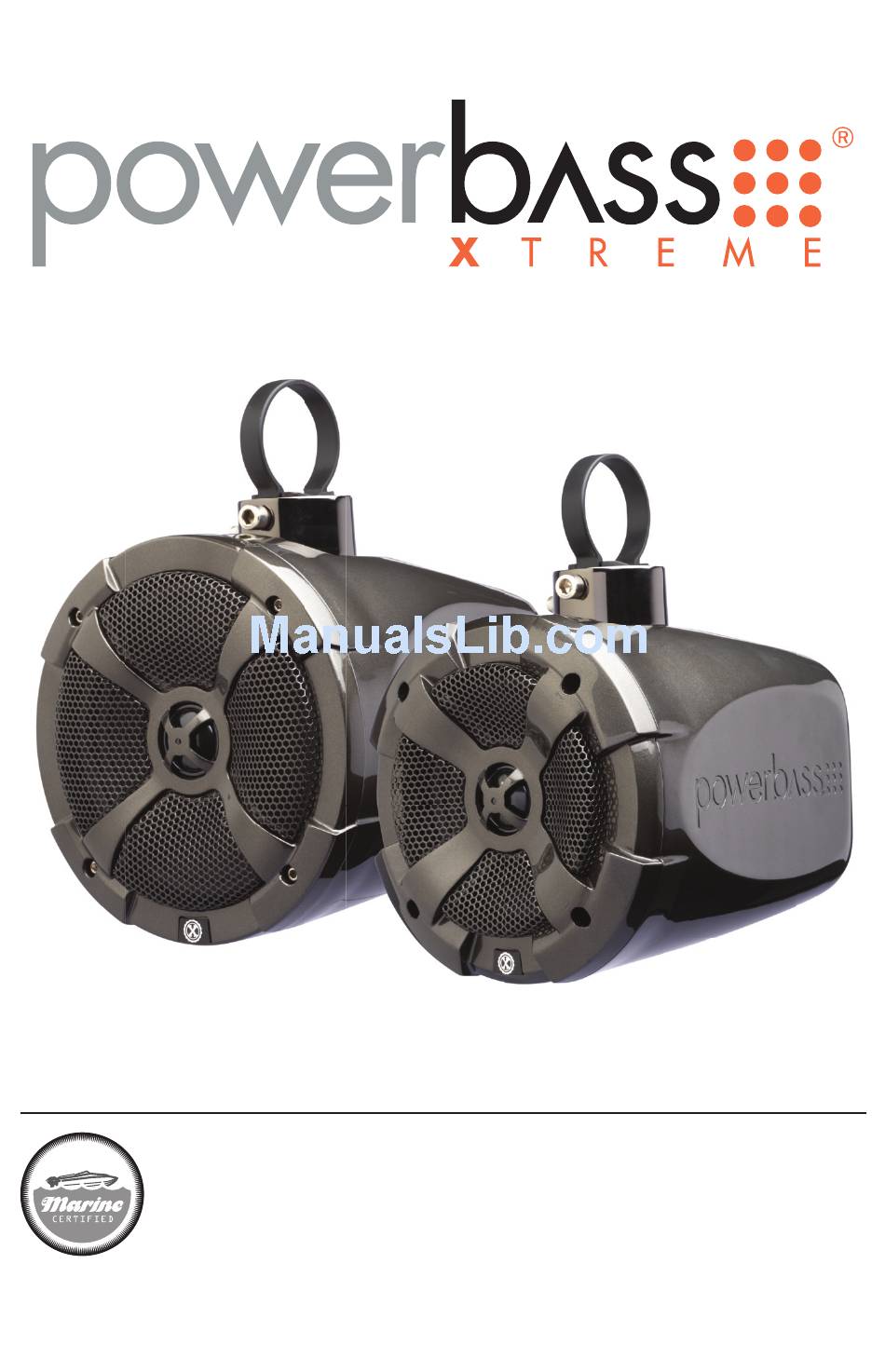

XL-POD8SR
XL-POD6SR
XL-POD5SR
SHORT RANGE POD SPEAKER SYSTEM
Application Guide
Please read through this manual to familiarize yourself with your new speakers. Should your
PowerBass Xtreme marine speakers ever require service, you will need to have the original dated receipt.

Advertisement

loading
Need help?

Need help?

Do you have a question about the XL-POD8SR and is the answer not in the manual?

Questions and answers

Related Manuals for PowerBass XL-POD8SR

Summary of Contents for PowerBass XL-POD8SR

  • Page 1 XL-POD8SR XL-POD6SR XL-POD5SR SHORT RANGE POD SPEAKER SYSTEM Application Guide Please read through this manual to familiarize yourself with your new speakers. Should your PowerBass Xtreme marine speakers ever require service, you will need to have the original dated receipt.
  • Page 3 170 dB. Please observe all local sound ordinances while listening to your PowerBass Autosound system. PowerBass USA, Inc. accepts no liability for hearing loss, bodily injury, or property damage due to the result of use or...

  • Page 4: Unpacking The Enclosure

    Notify your local PowerBass dealer immediately should you notice any damage prior to installing the unit. Be sure to keep the carton and packing material until your system is operational. The original boxes will do the best job of protecting...
  • Page 5 Installation of PowerBass Xtreme Pods requires experience with a variety of mechanical and electrical procedures. This manual only provides general installation and operating instructions. If you have any reservations about your installation skills or lack the proper tools, please contact your local PowerBass Xtreme dealer for assistance. POD PLACEMENT TIPS...

  • Page 6: Mounting, Wiring And Connections

    PowerBass highly recommends that a professionally trained installer mount and wire the Pod. This application guide explains how to install PowerBass Pods in a general sense, it may not show the exact installation method for your particular situation. If you feel unsure about personally installing this Pod speaker system, don’t attempt the installation yourself.
  • Page 7 Read these instructions thoroughly before starting installation. For easier assembly, we suggest you run all wires prior to mounting your Pod speakers. Determine where the Pod will be placed on the tower bar and a what angle the speaker will be mounted. mark the bar with a felt-tip pen.

  • Page 8: Sound Check

    SOUND CHECK RECOMMENDED POWER The XL-POD8SR is designed to handle up to 100 watts RMS (continuous) and 200 watts maximum (peak) of input power. The XL-POD6SR is designed to handle up to 60 watts RMS (continuous) and 120 watts maximum (peak) of input power.
  • Page 9 ENCLOSURE DIMENSIONS AND SPECIFICATIONS Specifications XL-POD8SR XL-POD6SR XL-POD5SR Woofer Size 8.0” 6.5” 5.25” Power RMS/Peak 100W/200W 60W/120W 50W/100W Frequency Response 45Hz - 20kHz 60Hz - 20kHz 70Hz-20kHz Nominal Impedance 4-ohm 4-ohm 4-ohm Sensitivity (1W/1M) 91dB 90dB 89dB Hang Weight 9 lbs (4.11 kg) 4.6 lbs (2.11 kg)

  • Page 10: Care And Cleaning

    This manual is the exclusive property of PowerBass USA, Inc. Any reproduction of this manual, or use other than its intentions is strictly prohib- ited without the express consent of PowerBass USA, Inc. Copyright 2017 PowerBass USA, Inc.
  • Page 11 Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for PowerBass any other liability in connection with the sale of this product.
  • Page 12 PowerBass Xtreme (PBX) – A division of PowerBass USA, Inc. 2133 S. Green Privado – Ontario, CA 91761 Tel. (909) 923-3868 – Fax (909) 923-8048 www.powerbassusa.com...
