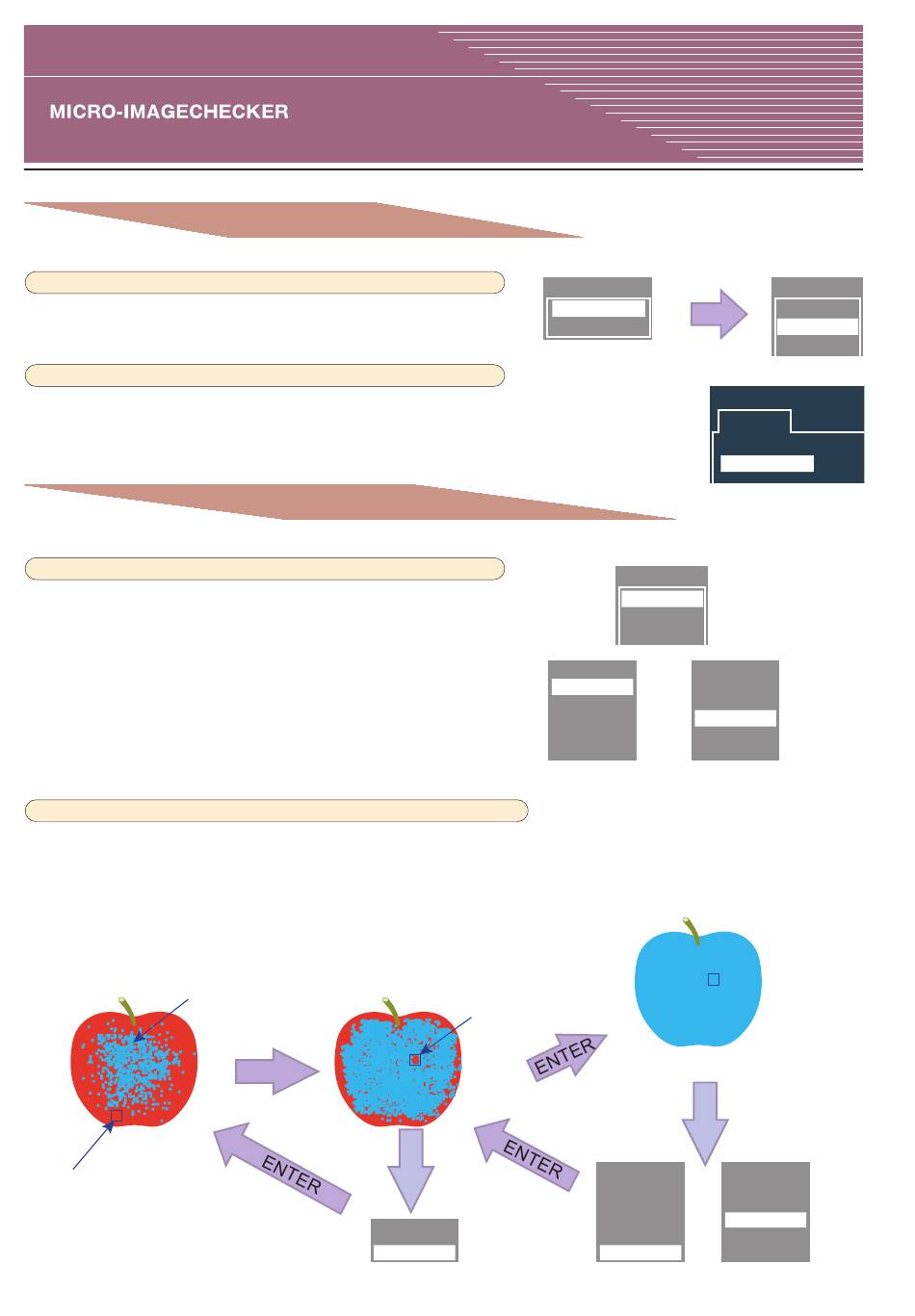

Basic Operation
AX40
Before starting the color extraction, set "Color" from the ENVIRONMENT menu> Initial Setttings> Memory1.
2. Switching the Extraction color
Specify the extraction color "A" into "B" by switching in the "Group Select"
1. Choose "Select" from the "Group Select."
The "Select" window is displayed, and select "B".
2. The window returns to the checker menu.
Confirm the item "Group Select" is displayed "B" at the inspection tab.
3. Modifying the Extraction color
Modify the existing extraction color "A" by adding or deleting.
1. Choose "A" from the "Modify" window.
A sub window is displayed, select "Add" or "Delete" and press the the
ENTER key.
Add : Adds the extraction color.
Widen Lumi. : Enhances the luminosity range by 10.
Delete : Deletes the already specified extraction
color.
Adjust : Adjusts the already registered extraction
color, by entering a value of Hue, Luminosity
and Saturation.
Undo : Returns to the previous extraction status.
(Up to 9 times)
2. Specify the part you want to add or delete with the color specify window.
When the color specify window appears, move it to the desired part and press the ENTER
key. If you wish to return to the previous extraction status, press the C key and select
"Undo". When you have finished extracting, press the C key twice and register the
extraction color as following to the message. It returns to The FEATURE EXTRACTION
window. (Modifying the extraction color A is completed.)
Extracted part (in light blue)
The color specify window
For more details about checkers, refer to the User's manual (Hardware and Operation).
ENTER
Ne w
C
A d d
Wi d en Lu m i .
De l et e
Ad j us t
U nd o
G r o u p S el e ct
S e l e ct
M o d i f y
N e w
A dd
W id e n L u m i.
D el e t e
A dju s t
U n do
The part to be added
6
FEATURE EXTRACTION
Inspection
Memory
Group Select
Area
M o dif y
A
B
C
D
E
N e w
A dd
W i de n L u m i.
Or
D e let e
A d jus t
U n d o
The extraction is completed.
C
N ew N e w
A d d A dd
W ide n Lu m i. Or W id e n L u m i.
D e l et e D e le t e
A d jus t A d ju s t
U n d o U n do
Se le ct
A
B
C
D
E
F
G
H
1
B
