Summary of Contents for HUR SmartTouch Hi5
- Page 1 HUR SmartTouch Hi5 Owner’s manual...
-
Page 2: Read This First
Do not connect the HUR equipment with any other power sources or other parts/components than those supplied and approved by HUR. • If you discover a defect, please contact your HUR dealer or HUR maintenance. Do not attempt to repair it yourself. •... -
Page 3: Introduction
INTRODUCTION In this User Manual You will find general instructions for use of HUR products. Information covers basic safety instructions, instructions for use of each machine, technical information of the machine and everyday routines as well as scheduled maintenance procedures. -
Page 4: Table Of Contents
READ THIS FIRST ..........................2 INTRODUCTION ..........................3 TABLE OF CONTENTS .......................... 4 SAFETY PRECAUTIONS ........................6 SAFETY PRECAUTIONS AND WARNINGS FOR OWNERS OF HUR DEVICES ..........7 INSTALLATION ..........................8 WARRANTY ..........................9 BASIC FUNCTIONALITY ......................11 Operation without RFID ......................11 3.2. - Page 5 ST8540-Hi5 Multifunction 4X ...................... 25 4.24. ST8530-Hi5 Multifunction 5X ...................... 26 4.25. HUR Pulleys ..........................27 MAINTENANCE ......................... 29 5.1. HUR Cleaning wipes ........................30 5.2. HUR Disinfection wipes ........................30 TECHNICAL DATA ........................31 6.1. Operation environment ......................... 32 6.2.
-
Page 6: Safety Precautions
SAFETY PRECAUTIONS Do not adjust or use HUR equipment without the proper guidance of trained staff. Before use, please carefully read warning signs, instructions for use and safety instructions that may be attached to the device. For safe operation of the equipment, a safety zone of at least one meter is required in front of and a 0.6-meter safety zone on both sides and behind the device, because of... -
Page 7: Safety Precautions And Warnings For Owners Of Hur Devices
Make sure that the hoses and cables are properly installed in such a way that no one can stumble on them. Do not allow anyone to adjust or control the HUR equipment without the proper guidance of trained staff. ... -
Page 8: Installation
It is recommended by HUR that the equipment be installed by an authorized HUR installation expert in order to ensure the reliability of the installation. A HUR installation expert has the appropriate tools and instructions needed for the installation process. In addition, an experienced installation expert is familiar with the details of each piece of equipment. -
Page 9: Warranty
The remedy subject to these warranty terms will be the sole, exclusive and only remedy available to the customer. HUR will not in any case be liable for any other obligations or liabilities. HUR disclaims and excludes all other expressed or implied warranties, including, any warranty of merchantability or fitness for a particular purpose. - Page 10 The customer shall return a duly filled file, WAF, to HUR in order to activate the warranty within one (1) month since the date the product was received. The warranty is not applicable if WAF has not been duly filled and returned to HUR.
-
Page 11: Basic Functionality
The display shows the resistance level in kilograms [kg] or in pounds [lbs]. Some of the HUR Hi5 devices are dual function, i.e., one device can be used to exercise opposing muscle groups. The exercise selector switch button of the device is used to select which one of the movement directions is to be used. -
Page 12: Safety Belts
3.3.1. SAFETY BELTS Some HUR equipment has a safety belt, which helps the user to stay in the device during exercising. Fasten the safety belt by pressing the belt buckles against each other until you hear a clicking sound. Tighten the belt by pulling the free end of the belt. Open the safety belt by pressing the quick release on both sides. -
Page 13: Equipment Functionality
4. EQUIPMENT FUNCTIONALITY 4.1. ST3110/STE3110-Hi5 Biceps/Triceps Equipment adjustment manually (ST): Grasp the front sections of the side edges of the seat with both hands and lift the seat to the desired height. To lower the seat, grab the rear side edges of the seat, tilt the front up slightly and lower the seat so that your chest rests against the cushion. -
Page 14: St3120/ St5120/Ste5120-Hi5 Push Up/Pull Down
4.3. ST3120/ ST5120/STE5120-Hi5 Push Up/Pull Down Equipment adjustment (ST): Set the height of the seat by lifting the rear part of the seat with both hands so that when the lever arm is in its lowered position, handles are at shoulder level. The seat locks into place automatically. -
Page 15: St3160/ St5160/ Ste5160-Hi5 Pec Deck
4.5. ST3160/ ST5160/ STE5160-Hi5 Pec Deck Equipment adjustment (ST): Set the height of the seat by lifting the rear part of the seat with both hands so that the lower edge of the lever arm cushion is at chest level. The seat locks into place automatically. -
Page 16: St3510/ St5510-Hi5 Body Extension
WARNING! Make sure that the lever arm is always locked in its intended slot. Otherwise, the lever arm may move during exercise and may cause danger. Equipment adjustment electrically (STE): Push the seat adjustment button on the touch screen and adjust the seat by pushing arrow buttons. When training with RFID-tag, the machine will remember your settings from your current training program’s previous visit. -
Page 17: St3520/ St5520-Hi5 Adduction/Abduction
4.9. ST3520/ ST5520-Hi5 Adduction/Abduction Equipment adjustment (ST): If necessary, adjust the range limiters on the foot support by turning the handles so that the levers do not open wider than desired during exercise. Sit down and place your feet on the foot supports. Adduction exercise: Exercise by pressing the levers together with your legs. -

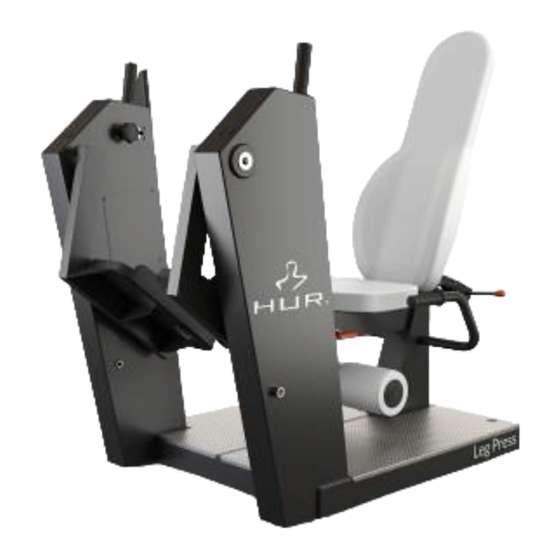

Page 18: St3540/ St5540/ Ste5540-Hi5 Leg Press
Leg Extension exercise: Place feet under lower rollers and fasten safety belt. Exercise by pressing levers alternately upwards with your legs, return to the starting position slowly. Leg Curl exercise: Place feet on top of lower rollers and fasten thigh straps and safety belt. -
Page 19: St3330-Hi5 Twist
When training with RFID-tag, the machine will remember your settings from your current training program’ s previous visit. Dip exercise: Exercise by pushing the lever arms down with your hands, keep your wrists straight and lean against the back support. Return to the starting position slowly. -
Page 20: St9120-Hi5 Push Up/Pull Down Easy Access
Biceps exercise: Place your arms under the rollers. Rest your elbows on the support cushions, at the lever arm pivot ends. Exercise by alternately flexing your arms, lifting the lever arms upward. Return to the starting position slowly. Triceps exercise: Place your arms on the rollers. Rest your elbows on the support cushions. -
Page 21: St9125-Hi5 Dip/Shrug Easy Access
4.16. ST9125-Hi5 Dip/Shrug Easy Access Equipment adjustment: 1. With wheelchair: Adjust yourself at the machine so that you are also leaning on the back support of the machine. 2. With EA chair: Set the chair so that you lean also against the back support of the machine. If you have an adjustable EA chair, adjust the seat to the desired height by lifting with both hands from the back of the seat. -
Page 22: St9150-Hi5 Lat Pull Easy Access
Chest Press exercise: Exercise by pushing the lever arms forwards. Hold your elbows horizontal and your wrists straight. Return to the starting position slowly 4.18. ST9150-Hi5 Lat Pull Easy Access Equipment adjustment: 1. With wheelchair: Adjust yourself at the machine so that you are also leaning on the chest support of the machine. -
Page 23: St9160-Hi5 Pec Deck Easy Access
4.19. ST9160-Hi5 Pec Deck Easy Access Equipment adjustment: 1. With wheelchair: Adjust yourself at the machine so that you are also leaning on the back support of the machine. 2. With EA chair: Set the chair so that you lean also against the back support of the machine. If you have an adjustable EA chair, adjust the seat to the desired height by lifting with both hands from the back of the seat. -
Page 24: St9310-Hi5 Abdomen/Back Easy Access
4.21. ST9310-Hi5 Abdomen/Back Easy Access Equipment adjustment: Select seat position by lifting and moving the knob at the back. Make sure that the seat locks in place. To easily access and leave the device, turn the back support to down position by lifting the back support and turning the support down. -
Page 25: St8540-Hi5 Multifunction 4X
Twist exercise: 1. To the right: Stand in the machine in such a way that the right support cushion is between the thighs. Put your left arm behind the back of the roller, and the right arm flexed on the left side of the roller in front. Exercise by twisting your body to the right, with your back straight, eyes following the movement. -
Page 26: St8530-Hi5 Multifunction 5X
Leg Press exercise: Exercise by pushing levers alternately forward with your legs, keeping your lower back firmly in the seat. Return to the starting position slowly. 4.24. ST8530-Hi5 Multifunction 5X Equipment adjustment: Sit down in the seat so that the knees are resting on the upper cushion. Adjust the back support by lifting the handle on the back and moving the back support to desired height. -
Page 27: Hur Pulleys
ST8823-Hi5 3 in 1 Pulley 20 kg ST8833-Hi5 3 in 1 Pulley 30 kg WARNING! Floor mounted equipment shall be installed on a stable and levelled base. Hur Pulley floor mounted models MUST BE ATTACHED TO FLOOR Wall-mounted model. Floor mounted model. - Page 28 More instruction for exercising with HUR Pulley is on a video ’HUR Pulley – Functional Trainer’. Pulley training In addition to general introduction, 17 basic exercises for lower, mid and upper body are shown.
-
Page 29: Maintenance
Cleaning products and disinfectants. Weekly Wipe the handle grips and It is recommended that you use HUR Cleaning products and disinfectants. Use only a small amount of water. Do adjusting buttons. Disinfect not use products containing alcohol. Always make sure if necessary. -
Page 30: Hur Cleaning Wipes
Of course, your name and company information are required. NOTE! The HUR device can be identified by the serial number. The serial number can be found on the device frame in connection with the type plate. Some basic points regarding problem situations: ... -
Page 31: Technical Data
6. TECHNICAL DATA Hi5 - SmartTouch Targeted Size (WxLxH Weight Resistance Code Name Cylinders musculature cm/in) (kg/lbs) (kg) STE5120/ 110 x 118 x 181 Push Up / Pull Down Upper Body 56/123 0-54 / 0-63 ST5120-Hi5 /43 x 46 x71 STE5140/ 119 x 122 x 137 Chest Press... -
Page 32: Operation Environment
Multifunctional 154/340 92 (Shrug) 39 x74 x 52 0-112 (Assisted squat) 80 x 90 x 220/ 31 2-20 ST8820-Hi5 HUR Pulley Multifunctional 43/95 x 36 x 86 (/rope) 80 x 90 x 220/ 31 4-30 ST8830-Hi5 HUR Pulley Multifunctional 43/95... -
Page 33: Storage Environment
Storage environment Ambient temperature: 0-60 C, 32-140 Relative humidity: 30-75 % Atmospheric pressure: 70,0-106,0 kPa 6.4. Power supply Power supply: 24VDC/150W, 100-240VAC/50-60Hz. Ab HUR OY Patamäentie 4 67100 Kokkola SUOMI – FINLAND Tel. +358 6 832 5500 Email: sales@hur.fi, service@hur.fi www.hur.fi...
