Reichert 16255 Quick Start Manual

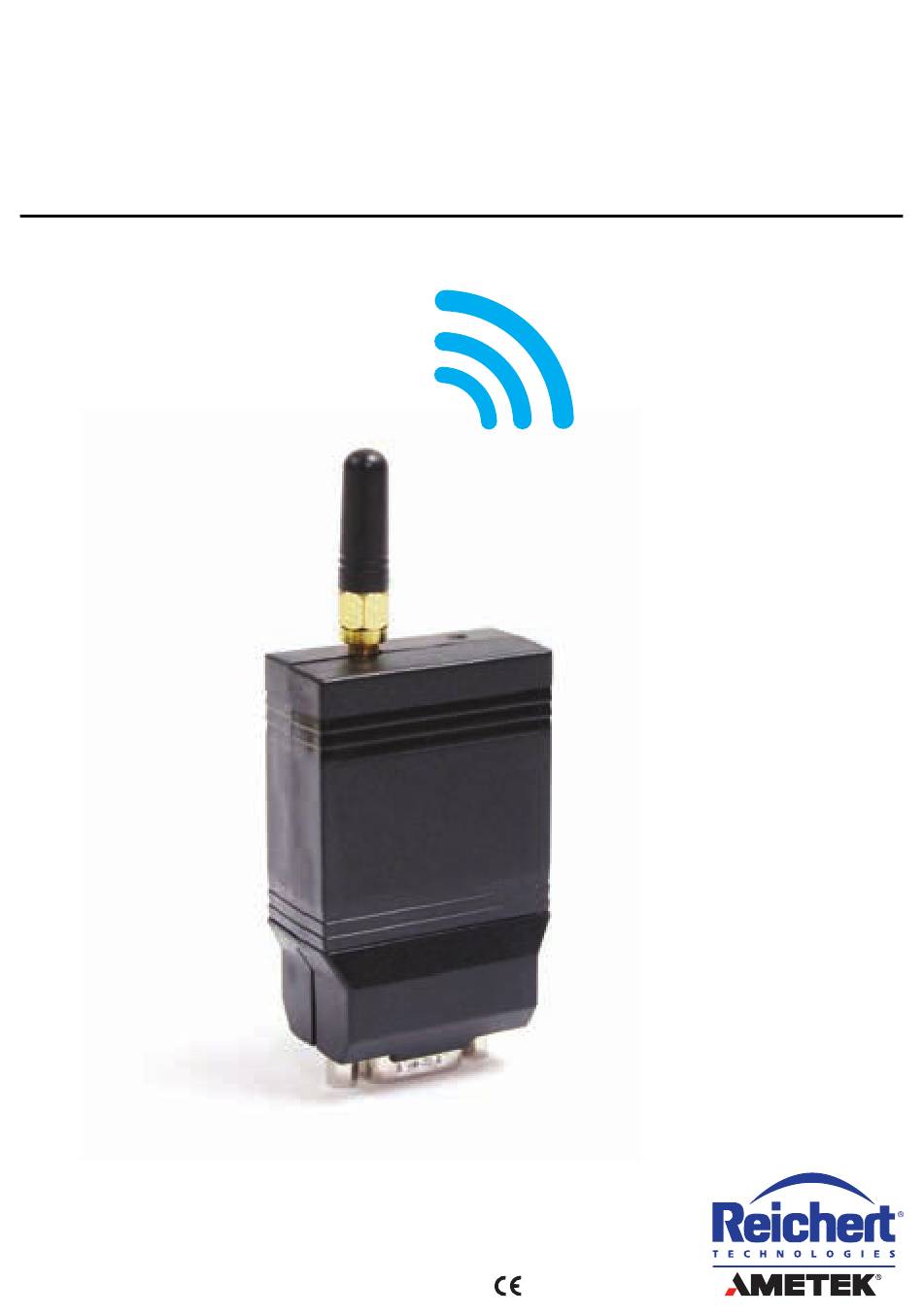

Phoroptor vrx & sightchek wireless dongle kit

Reichert

Phoroptor

VRx & SightChek

™

Wireless Dongle Kit 16255

For use with AL500 or computer

Reichert, Inc.

www.reichert.com • 3362 Walden Avenue, Suite 100, Depew, NY 14043 USA

Toll Free: 888-849-8955 • Tel: +1 716-686-4500 • Fax: +1 716-686-4545

16255-101 Rev. B (August 20, 2018)

Table of Contents

Need help?

Do you have a question about the 16255 and is the answer not in the manual?

Page 1 • 3362 Walden Avenue, Suite 100, Depew, NY 14043 USA Toll Free: 888-849-8955 • Tel: +1 716-686-4500 • Fax: +1 716-686-4545 16255-101 Rev. B (August 20, 2018) ©2018 AMETEK, Inc & Reichert, Inc. Bluetooth trademark is owned by Bluetooth SIG.
Page 2 Phoroptor VRx Digital Refraction System User’s Guide (16241-101) for complete installation, configuration, and compliance information. To obtain a copy of 16241-101, please contact Reichert, your Reichert authorized dealer, or you may download it from the Phoroptor VRx product page at www.reichert.com. Actual components may differ in appearance from those depicted here.
Page 3 Wireless Dongle Kit configuration options: Some Wireless Dongle Kits will connect directly to an instrument using only the Adapter Set configuration, while other Wireless Dongle Kits will connect to an instrument using only the Extension Cable configuration. In some instances a Wireless Dongle Kit can connect to an instrument using either configuration.
Page 4: Connecting To A Computer
Connecting AL500: (Continued from inside) AL500 w/ Adapter Set AL500 w/ Extension Cable Connecting to a computer: The Wireless Dongle can easily be connected to a Microsoft Windows ® ® computer using the Extension Cable configuration. You can plug the Serial Extension Cable directly into a computer’s serial port or you can plug the cable into a computer’s USB port using the provided Serial to USB Adapter.
