Reichert 16254 Quick Start Manual

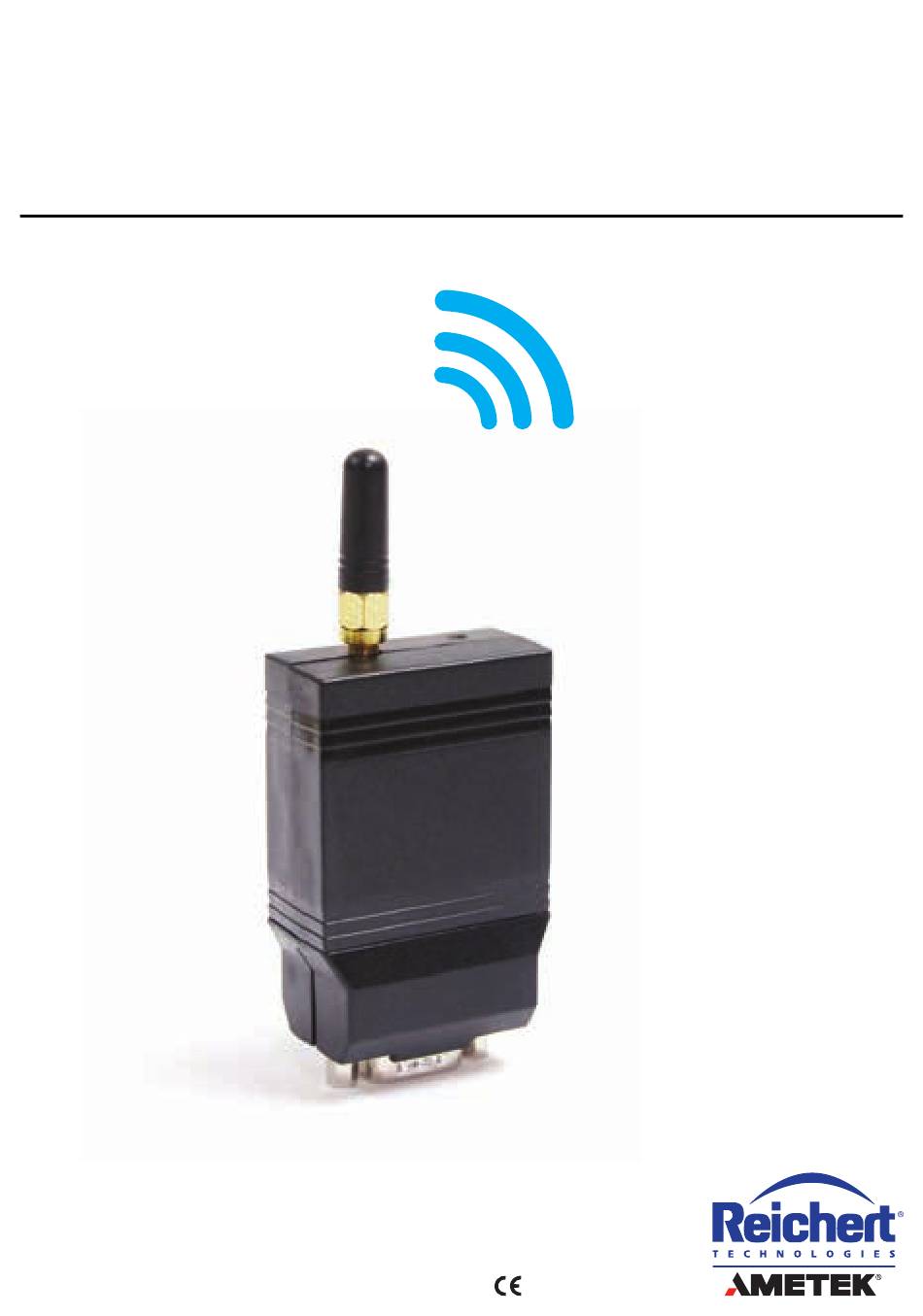

Phoroptor vrx & sightchek wireless dongle kit

Reichert

Phoroptor

VRx & SightChek

™

Wireless Dongle Kit 16254

For use with RK600

Reichert, Inc.

www.reichert.com • 3362 Walden Avenue, Suite 100, Depew, NY 14043 USA

Toll Free: 888-849-8955 • Tel: +1 716-686-4500 • Fax: +1 716-686-4545

16254-101 Rev. B (August 20, 2018)

Table of Contents

Need help?

Do you have a question about the 16254 and is the answer not in the manual?

Page 1 • 3362 Walden Avenue, Suite 100, Depew, NY 14043 USA Toll Free: 888-849-8955 • Tel: +1 716-686-4500 • Fax: +1 716-686-4545 16254-101 Rev. B (August 20, 2018) ©2018 AMETEK, Inc & Reichert, Inc. Bluetooth trademark is owned by Bluetooth SIG.
Page 2 Phoroptor VRx Digital Refraction System User’s Guide (16241-101) for complete installation, configuration, and compliance information. To obtain a copy of 16241-101, please contact Reichert, your Reichert authorized dealer, or you may download it from the Phoroptor VRx product page at www.reichert.com. Actual components may differ in appearance from those depicted here.
Page 3 Wireless Dongle Kit configuration options: Some Wireless Dongle Kits will connect directly to an instrument using only an Adapter Set configuration, while other Wireless Dongle Kits will connect to an instrument using only an Extension Cable configuration. In some instances a Wireless Dongle Kit can connect to an instrument using either configuration.
Page 4 Once the DB25 to DB9 converter is connected to the RK600 serial port, you can connect the Extension Cable and Wireless Dongle.The Wireless Dongle will need to be powered by the AC-Power Supply. Using the Extension Cable configuration you can run the Wireless Dongle to a location hidden from view, such as under the instrument table.
