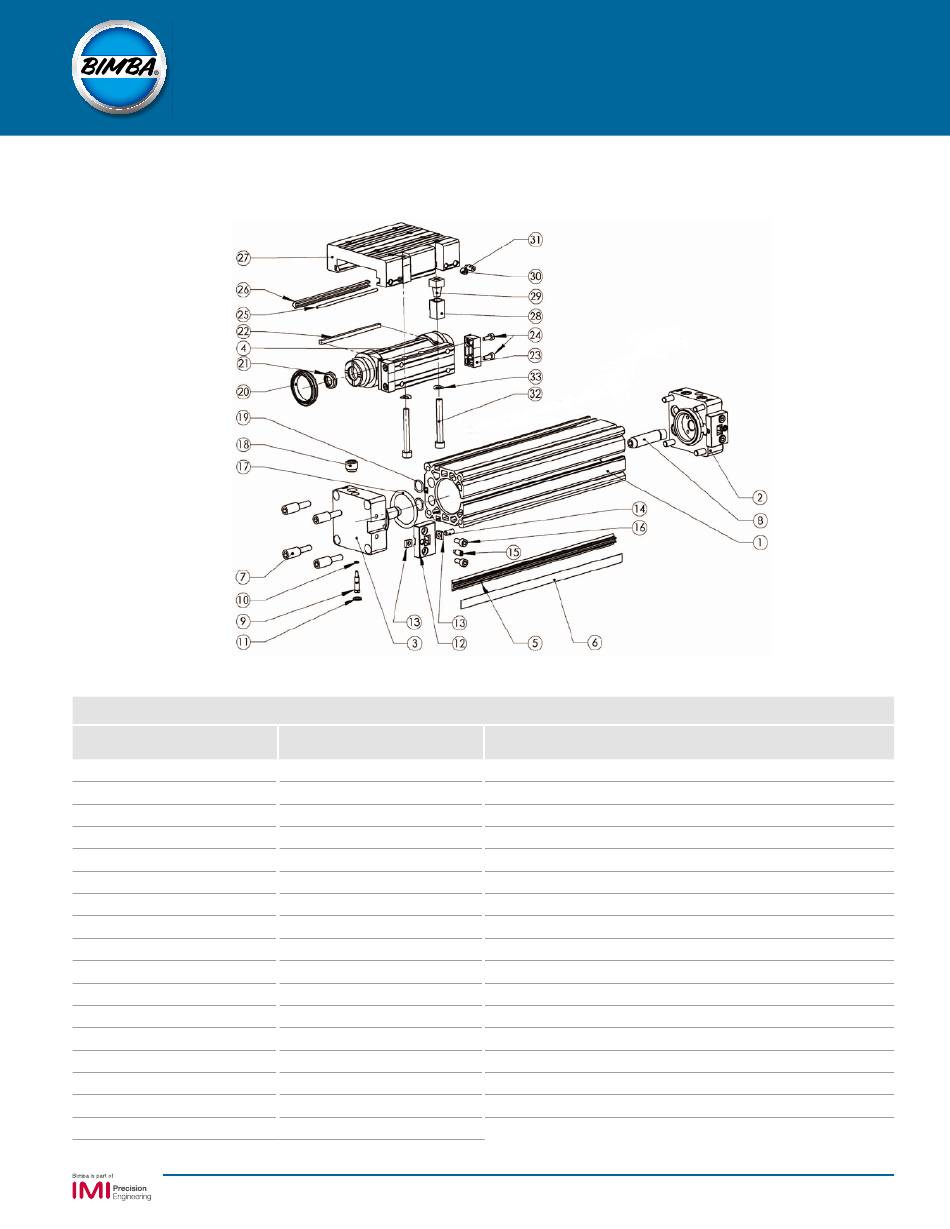

DRAWING
REFERENCE NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
TABLE OF PARTS
DESCRIPTION
Body
Primary End Cap
Secondary End Cap
Yoke Assembly (Magnetic)
Sealing Strip
Cover Strip
Endcap Fasteners
Cushion Spear
Cushion Screw
O Ring (Cushion Screw)
Retaining Ring
Strip Retainer
Square Nut
Flat Point Grub Screw
Dog Point Grub Screw
Cap Head Screw
O Ring (Endcap/Body)
Repair Instructions - Side 1
DRAWING
REFERENCE NO.
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
Product Instructions
Ultran Band
DESCRIPTION
Plug
O Ring (Gallery)
Piston Seal
Cushion Seal
Wear Strip
Scraper Block
Cap Head Screw
Wire Strip
Guide Strip
Carriage/Slide Bearing
Clamp Wedge
Cone Nut
Cone Point Grub Screw
Dog Point Grub Screw
Carriage Bolt
Wave Washer
1
Advertisement
Related Manuals for Bimba Ultran Band
Summary of Contents for Bimba Ultran Band
- Page 1 Product Instructions Ultran Band Repair Instructions - Side 1 TABLE OF PARTS DRAWING DRAWING DESCRIPTION DESCRIPTION REFERENCE NO. REFERENCE NO. Body Plug Primary End Cap O Ring (Gallery) Secondary End Cap Piston Seal Yoke Assembly (Magnetic) Cushion Seal Sealing Strip...
- Page 2 Product Instructions Ultran Band Repair Instructions - Side 1 DISMANTLING AND REASSEMBLING - Assemble carriage/slide bearing (27) to body (1) and insert guide strip (26) and wire strip (25). + Undo and remove carriage bolt (32), washer (33), cone - Apply Loctite 222 to thread of grub screws (30 and 31) nut (29) and clamp wedge (28).
