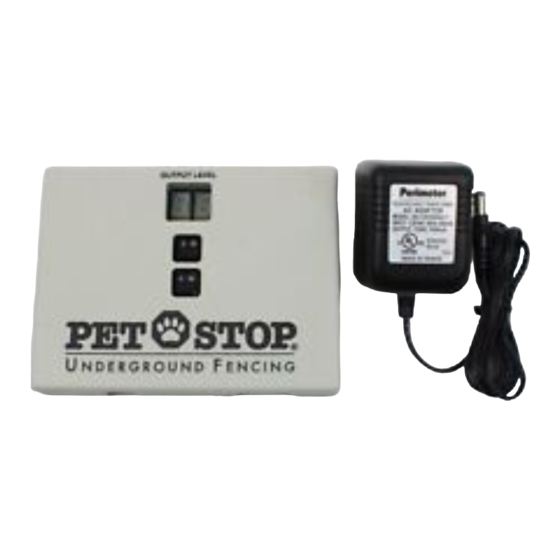

Pet Stop OT-200 Programming Manual

Available are over 8,000 different programmable settings which are available in either receiver.
Questions on programming should be directed to Technical Support @ 888-392-2007 x 1751.

To begin programming

the power cord from the transmitter
and while pressing the top and
bottom buttons down replace the
power plug. The display will show
"10" indicating it's in the
programming mode. To return
to normal operation remove the power plug and wait 5
Seconds before reinsertion of the power plug
Functions are general categories, like shock or warning
time. Settings are what you select within a function, like a
mild shock or a 1 second delay.
TOP BUTTON USE
• Advances between the different functions
• Scrolls between settings when in a function
BOTTOM BUTTON USE
• Enters a function to select specific settings
• Enters a specific selection while in a function

Programming Instructions

Step 1 – Select the Settings to Program.
a) Set the transmitter to programming mode, there is a
built in loop for programming- hold receiver right
below transmitter to locate "sweet spot".
b) Use the top button to advance between functions
and the bottom button to enter a function.
c) Use the top button to scroll through setting choices
and the bottom button to select a particular setting.
Step 2 – Confirm the Settings to be Programmed.
After making the desired selections advance to function
90. To view all the settings you changed press the bottom
button and then, by using the top button, you can scroll
through all the settings about to be programmed. (No
programming is taking place at this time).
Step 3 – Program the receiver settings. (When
you get to 99 you're now ready to transmit the
changes to the receiver).
1. While holding the receiver over the small loop,
(below OT-200) press the bottom button. The 99
begins to flash and the receiver's battery light
comes on to indicate the receiver is in the "sweet
spot" and ready to be programmed.
©2008 Perimeter Technologies, Inc.
Underground Dog Fence
Pet Stop of North Georgia, LLC
Programming Guide – OT-200
- remove NOTE: Should the receiver signal a solid tone and
the light stays on this means that the receiver did not
detect the transmitter's signal correctly. When the
beep stops repeat Step 1.
2. Press the bottom button again, 99 stops flashing and
the code begins to be transmitted to the receiver.
While this is occurring the receiver will beep and the
battery light will flash in a pattern that corresponds
with the particular selection. (For example, a setting of
7K will beep once followed by three flashes).
NOTE: Should the receiver signal a solid tone
and the light stays on this means that the code is
not compatible with the receiver and will not be
successfully transmitted to the receiver
3. After reprogramming is complete the transmitter
returns to 99 and is ready to program another
receiver. To return to normal operation, unplug the
power cord, wait 5 seconds, and then reinsert the
plug. Alternatively, do nothing for two minutes and the
transmitter will return to normal operation.
Only the UltraElite series 2 Receiver can be
programmed using Step 4 and Step 5
Distance Button
IMPORTANT: Before you can program the Training
levels the Receiver must be programmed to "39".
Step 4 – Program the Training Correction Levels (80
series) This program is seldom used.
1. While in normal operation mode press and hold the
Training Button on the transmitter until the display begins
to flash "98".
Upper Button
Training Button
Lower Button
