Reed Switch Adjustment

1/4 inch Models with Strap Assembly
1 Loosen the screw securing the switch assembly (see
2 Slide the switch assembly until the arrow pointers on the switch band are aligned with
the desired flow rate indicated on the scale
3 Tighten the screw
1/4...1-1/2 inch Models with Enclosure
1 Remove cover screws and front cover
2 Loosen the screw securing the switch assembly (see
N OTE:
On flow meters equipped with dual reed switches, the side closest to the connector is the
decreasing flow switch and the side opposite the connector is the increasing flow switch
"Reed Switch Cable Specifications" on page 7
N OTE: See
and specifications
3 Slide the switch assembly until the arrow pointer aligns with the desired flow rate
indicated on the scale
4 Tighten the screw
5 For dual switch models, repeat steps 1...4 for the increasing switch setting
April 2017
Arrow Pointers
on Switch Band
Screw

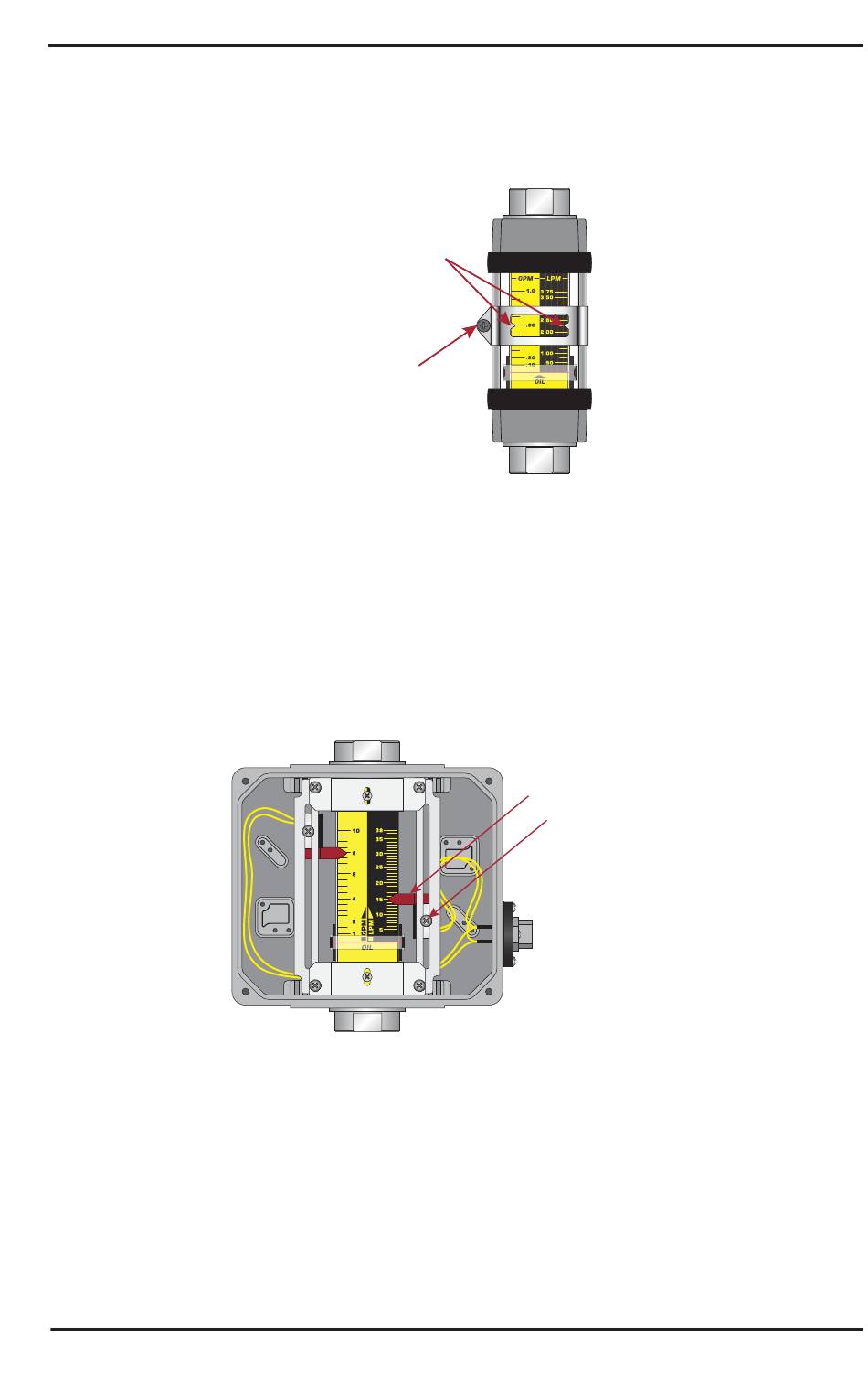

Figure 7: Reed switch adjustment (1/4 in. models)
Figure 8: Reed switch adjustment (1/4...1-1/2 in. models)
VAM-UM-00646-EN-04
Figure 7)
Figure 8)
Arrow Pointer
Screw
for cable lengths
Operation
Page 9
