Installation Instructions
1 See
Figure
1 Mount the flow meter so fluid is traveling in the direction of the flow arrow
2 See
Figure
2 Select a mounting location that is suitable for viewing and product service
To connect the flow meter into the piping system, place an open-ended wrench onto
the flow meter wrench flats adjacent to the pipe connection being installed DO NOT
wrench on the opposite end of the flow meter or leakage may result
3 After installation, rotate flow meter by hand to view flow scale
Place wrench on transmitter flats on the
same side plumbing is being tightened
Rotate transmitter by hand only to view flow
scale Never use wrench on flats to
rotate transmitter
Never place wrench on meter flats opposite
plumbing being tightened
April 2017

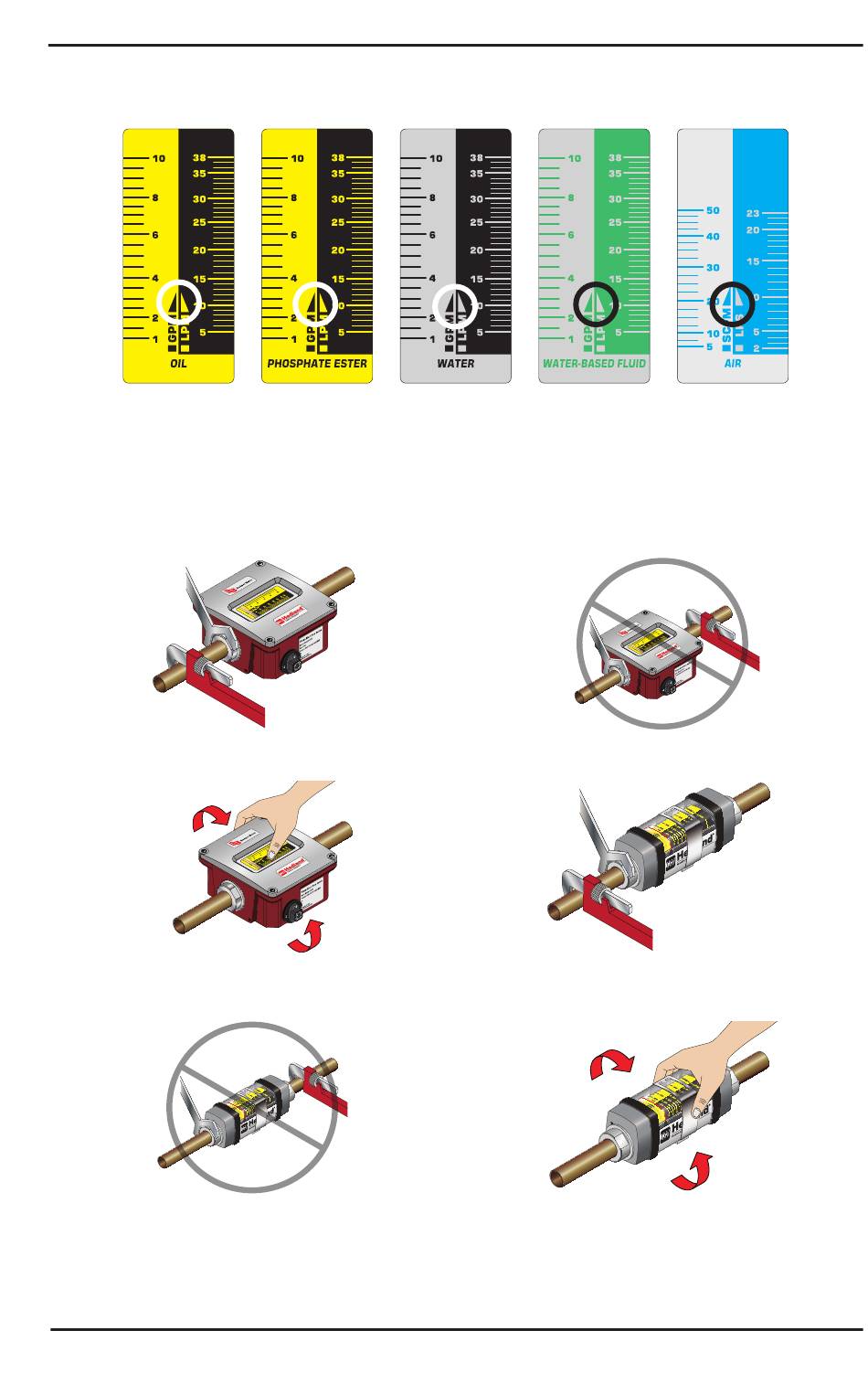

Figure 1: Flow direction arrows
Figure 2: Installing and rotating the flow meter
VAM-UM-00646-EN-04
Never place wrench on transmitter flats
opposite plumbing being tightened
Place wrench on meter flats on the same
side plumbing is being tightened
Rotate meter by hand only to view flow
scale Never use wrench on flats to
rotate meter
Installation
Page 5
