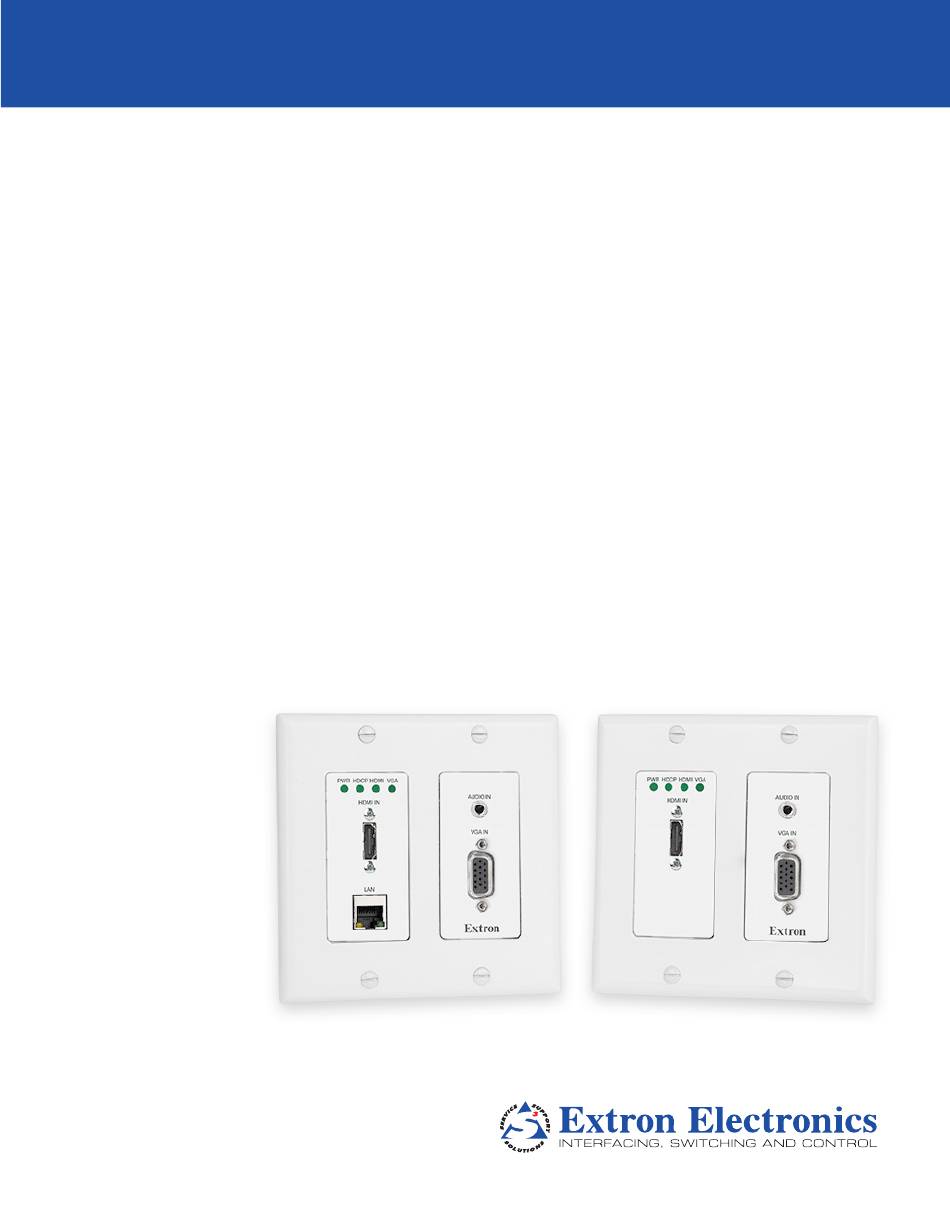

- Page 1 User Guide XTP Systems XTP T UWP 202 XTP Transmitter – Decorator-Style Wallplate 68-2033-01 Rev. D 04 17...
- Page 2 Safety Instructions Safety Instructions • English Istruzioni di sicurezza • Italiano AVVISO: Il simbolo, , se usato sul prodotto, serve ad avvertire l’utente WARNING: This symbol, , when used on the product, is intended to della presenza di tensione non isolata pericolosa all’interno del contenitore alert the user of the presence of uninsulated dangerous voltage within the del prodotto che può...
- Page 3 より 『Extron Safety www.extron.com and Regulatory Compliance Guide』 (P/N 68-290-01) をご覧ください。 Copyright © 2017 Extron Electronics. All rights reserved. Trademarks All trademarks mentioned in this guide are the properties of their respective owners. The following registered trademarks ( ), registered service marks ( ), and trademarks (™) are the property of RGB Systems, Inc.
- Page 4 FCC Class A Notice This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. The Class A limits provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 5 Conventions Used in this Guide Notifications The following notifications are used in this guide: Potential risk of severe injury or death. WARNING: AVERTISSEMENT : Risque potentiel de blessure grave ou de mort. ATTENTION: • Risk of property damage. • Risque de dommages matériels. NOTE: A note draws attention to important information.
-
Page 7: Table Of Contents
UL Listed Metal Junction Box Installation ..7 Software Product Page ........27 Rear Panel Connectors ........8 Software Operation..........28 Mounting the XTP T UWP 202 ......10 Connections ..........28 Front Panel Connectors ........11 Menu Bar ............29 Connection Details .......... - Page 8 XTP T UWP 202 Wallplate Transmitter • Contents...
-
Page 9: Introduction
It comes in a model with a front panel Ethernet port to enable Ethernet extensions for LAN access (XTP T UWP 202) and a model without a front panel Ethernet port (XTP T UWP 202 NL). -
Page 10: System Compatibility
The following diagram shows one way the XTP T UWP 202 can be integrated in an XTP point-to-point application. The transmitter can also be used with an XTP matrix switcher (see the XTP matrix switcher user guide for more details on matrix applications and configuration). -
Page 11: Features
• Remote power capability — Allows the XTP T UWP 202 to be powered by an XTP matrix switcher or XTP power injectors to simplify integration. •... -
Page 12: Installation
• • Connection Details Installation Overview The XTP T UWP 202 can be installed into the provided mud ring or a UL Listed metal electrical junction box. ATTENTION: • Do not mount multiple devices adjacent to each other in the same metal junction box. -
Page 13: Metal Junction Box Or Mud Ring Installation
Route and connect cables to the rear panel connectors (see Rear Panel Connectors on page 8). Mount the XTP T UWP 202 to the mud ring or metal junction box (see Mounting the XTP T UWP 202 on page 10). -
Page 14: Mud Ring Installation
Backing Clip Backing Clip 0.75" #6-32 Screw 1.25" #6-32 Screw Layout A Layout B Figure 3. Backing Clip Installation Use a cross-head (Phillips) screwdriver to fasten the screws and backing clips in place. XTP T UWP 202 Wallplate Transmitter • Installation... -
Page 15: Ul Listed Metal Junction Box Installation
Le blindage tressé et le blindage en aluminium devraient être connectés à la masse d’un équipement à l’autre bout du câble. XTP T UWP 202 Wallplate Transmitter • Installation... -
Page 16: Rear Panel Connectors
Rear Panel Connectors XTP output connector — Connect a twisted pair cable to the RJ-45 connector labeled “XTP OUT” on the XTP T UWP 202 and the XTP input port on another XTP device to pass all signals (see TP Cable Termination and Recommendations page 13). - Page 17 Confirm the polarity of the power supply wires. For wiring considerations, see Power Connection page 16. NOTE: The XTP T UWP 202 can also be powered remotely (see Remote power on page 17). XTP T UWP 202 Wallplate Transmitter • Installation...
-
Page 18: Mounting The Xtp T Uwp 202
Figure 8. Installing the XTP T UWP 202 (LAN Model Shown) in a Metal Junction Align the mounting screws on the XTP T UWP 202 with the available holes on the mud ring (see figure 7, ) or metal junction box (see figure 8,... -
Page 19: Front Panel Connectors
Tip (L) XTP connection when a specific audio format is not specified. Ring (R) Sleeve ( ) 3.5 mm Stereo Plug Connector (unbalanced) XTP T UWP 202 Wallplate Transmitter • Installation... -
Page 20: Connection Details
ATTENTION: • Connect and pull the tie wraps until they are secure. Do not overtighten. • Connectez et tirez les serre-câbles jusqu’à ce qu’ils soient sécurisés. Ne pas trop serrer. XTP T UWP 202 Wallplate Transmitter • Installation... -
Page 21: Tp Cable Termination And Recommendations
RJ-45 Connector Figure 12. TP Cable Termination Supported cables The XTP T UWP 202 is compatible with shielded twisted pair (F/UTP, SF/UTP, and S/FTP) cable. ATTENTION: • Do not use Extron UTP23SF-4 Enhanced Skew-Free AV UTP cable or STP201 cable to link the XTP products. - Page 22 Do not comb the cable for the first 20 meters, where cables are straightened, aligned, and secured in tight bundles. • Loosely place cables and limit the use of tie wraps or hook-and-loop fasteners. • Separate twisted pair cables from AC power cables. XTP T UWP 202 Wallplate Transmitter • Installation...
-
Page 23: Rs-232 And Ir Over Xtp Communication
Power Supply Output Cord Figure 14. Power Wiring The XTP T UWP 202 can be connected to a local power supply. See the notifications on the next page for local power considerations. XTP T UWP 202 Wallplate Transmitter • Installation... - Page 24 La longueur idéale est de 5 mm (3/16 inch). TIP: Do not tin the stripped power supply leads. Tinned wires are not as secure in the captive screw connectors and could be pulled out. XTP T UWP 202 Wallplate Transmitter • Installation...
- Page 25 Remote power The XTP T UWP 202 can be powered remotely through an XTP Power Injector or through an XTP matrix switcher. ATTENTION: • XTP remote power is intended for indoor use only. No part of the network that uses XTP remote power should be routed outdoors.
-
Page 26: Operation
Operation This section contains information for front panel operation and configuration of the XTP T UWP 202. Topics in this section include: • Front Panel Features • EDID Reset Mode • After all transmitters, all receivers, and other related devices are connected and powered, the system is fully operational. -
Page 27: Edid
(see EDID Minder on page 38). The XTP T UWP 202 can record and save EDID in a user memory location, select a pre-defined EDID, or use EDID from a display connected to a receiver. EDID stored in the user memory location can come from the display connected to a receiver or a custom EDID imported through the XTP System Configuration Software. -
Page 28: Sis Configuration And Control
SIS commands consist of one or more characters per field. No special characters are required to begin or end a command sequence. When the XTP T UWP 202 determines that a command is valid, it executes the command and sends a response to the host device. All responses... -
Page 29: Error Responses
Error Responses When the XTP T UWP 202 receives an SIS command and determines that it is valid, it performs the command and sends the corresponding response to the host device. If the command is determined invalid or contains invalid parameters, the transmitter returns an error response to the host. -
Page 30: Command And Response Tables For Sis Commands
1 dB increments ( = default) = Audio level = 720p @ 50 Hz = Black video signal resolution = 720p @ 60 Hz (default) = 1080p @ 60 Hz XTP T UWP 202 Wallplate Transmitter • SIS Configuration and Control... -
Page 31: Picture Adjustment Commands (Analog Only)
NOTES: = off or disable = Enable or disable = on or enable (default) = default) 0-255 = Pixel phase = default) 0-65535 32768 = Horizontal or vertical shift XTP T UWP 202 Wallplate Transmitter • SIS Configuration and Control... -
Page 32: Preset Commands
= Color bar test pattern = 720p @ 50 Hz = 720p @ 60 Hz = 1080p @ 60 Hz Text label, maximum seven alphanumeric characters = Device name XTP T UWP 202 Wallplate Transmitter • SIS Configuration and Control... - Page 33 NOTES: = video or TMDS not detected = Signal presence = video or TMDS detected = no source = HDCP status = HDCP compliant source = non-HDCP compliant source XTP T UWP 202 Wallplate Transmitter • SIS Configuration and Control...
-
Page 34: Xtp System Configuration Software
XTP System Configuration Software This section contains installation and configuration procedures for the XTP System Configuration Software for configuring and controlling the XTP T UWP 202. Topics in this section include: • Software Installation • Software Operation Software Installation The XTP System Configuration Software is available for download on the Extron website, www.extron.com. -
Page 35: Software Product Page
Open the executable (.exe) file from the save location. Follow the instructions that appear on the screen. By default, the installation creates a directory in the Program Files or Program Files (x86) folder. XTP T UWP 202 Wallplate Transmitter • XTP System Configuration Software... -
Page 36: Software Operation
Software Operation The XTP T UWP 202 can be controlled directly from the rear panel configuration port (see figure on page 11) or remotely from an XTP matrix switcher. Connections The XTP System Configuration Software opens to the screen. This screen is Connections used to establish communication with an XTP device through USB connection. -
Page 37: Menu Bar
Backup and Restore Commissioning Report available when directly connected to the XTP T UWP 202. See an XTP matrix switcher user guide (www.extron.com) for more information on these features. XTP T UWP 202 Wallplate Transmitter • XTP System Configuration Software... - Page 38 This option resets all disabled confirmation dialogs to the default settings. From the menu, select . The Tools Software Preference Software Preference dialog box opens. Figure 27. Software Preference Dialog Box Click the button. The dialog box closes. Reset XTP T UWP 202 Wallplate Transmitter • XTP System Configuration Software...
- Page 39 This option opens the XTP System Configuration Software help file in a Web browser. From the menu, select Help Help Extron Website This option opens the Extron website in a Web browser. From the menu, select Help Extron Website XTP T UWP 202 Wallplate Transmitter • XTP System Configuration Software...
-
Page 40: Device Settings
NOTE: The signal indicators on the AV input buttons display green when a signal is present on the corresponding input or gray when there is no signal present. XTP T UWP 202 Wallplate Transmitter • XTP System Configuration Software... - Page 41 HDCP authorized device. If the box is not checked, the source is blocked from encrypting its output. This may result in some content not being passed by the source device. NOTE: HDCP authorization is for the HDMI input only. XTP T UWP 202 Wallplate Transmitter • XTP System Configuration Software...
- Page 42 Save Preset — To save a preset, select one from the list of presets and click the Save button. Preset Recall Preset — To recall a saved preset, select the desired preset from the list of presets and click the button. Recall Preset XTP T UWP 202 Wallplate Transmitter • XTP System Configuration Software...
- Page 43 By default, the check box is not selected. If selected, also select the black video signal resolution from the Signal Type drop-down list. The default resolution is 720p @ 60 Hz. XTP T UWP 202 Wallplate Transmitter • XTP System Configuration Software...
- Page 44 Factory Reset settings except for firmware. Reset mode NOTE: This is the same as the SIS command (see the ZXXX command on page 25). XTP T UWP 202 Wallplate Transmitter • XTP System Configuration Software...
- Page 45 HDCP — Displays the HDCP status of inputs 2. Selected Audio Input — Displays the format of the currently selected audio input. Analog Audio Gain — Displays the analog audio gain in dB. XTP T UWP 202 Wallplate Transmitter • XTP System Configuration Software...
-
Page 46: Edid Minder
To assign EDID to all inputs: Select an available EDID icon from the , or Favorites Connected Outputs Available panel ( EDID Click the button ( Assign to All XTP T UWP 202 Wallplate Transmitter • XTP System Configuration Software... - Page 47 Common Timings Connected Outputs listing the EDID settings common among the selected outputs. Select the desired common EDID. The EDID is shown in the panel. Available EDID XTP T UWP 202 Wallplate Transmitter • XTP System Configuration Software...
-
Page 48: Reference Information
CUT-OUT AREA FOR WALL MOUNT Top Panel Figure 37. Mounting Template for 2-Gang Mud Rings (Not to Full Scale) Please measure the printed template before cutting. NOTE: Measure the template before cutting. XTP T UWP 202 Wallplate Transmitter • Reference Information... - Page 49 Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.
