  • Page 1 Operating Instructions SFP-217-25G SFP-25G "TRUE-IP 25GbE 2110 4K/UHD" Series SFP-217-25G SFP-224-25G SFP-324-25G SFP-232-25G SFP-243-25G SFP-249-25G SFP-255-25G SFP-265-25G SFP-286-25G Re-imagine Beyond Technology sales@plurainc.com...
  • Page 2: Revision History

    Operating Instructions SFP-25G SERIES OVERVIEW GENERAL FEATURES WORKFLOW DIAGRAM AND I/O CONNECTIONS WORKFLOW DIAGRAM I/O & CONNECTIVITY PODUCTION WORKFLOW INSTALLATION OVERVIEW NITIAL ETUP BY ROWSER 2) C LAN 2 U “UI” ONNECTING TO THE ONTROL NTERFACE WEB CONFIGURATION & INTERFACE...
  • Page 3 Operating Instructions SFP-25G SERIES • PRECAUTION Before operating this unit, please read this manual carefully. WARNING: To reduce the risk of any electric shock, please do not remove the back cover. No user serviceable parts inside. Refer any service matters to qualified service personnel.
  • Page 4 This product should be moved with care. Quick stops, excessive force and uneven surfaces may cause the product damages. Accessories Do not use accessories not recommended by PLURA Inc. as they may cause hazards. Ventilation Do not block any of the ventilation openings.
  • Page 5 Operating Instructions SFP-25G SERIES If the product exhibits a distinct change in performance. 17. Safety Check Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition and the warranty seal is provided 18.
  • Page 6: General Features

    Operating Instructions SFP-25G SERIES 1. OVERVIEW Plura SFP-25G series is the industry’s first TRUE-IP 25GbE broadcast & media monitor solution, supporting uncompressed UHD based on SMPTE ST 2110, ST 2022-6Ŧ & ST 2022-7 and supports up to 4096 x 2160 resolutions.
  • Page 7: Operation

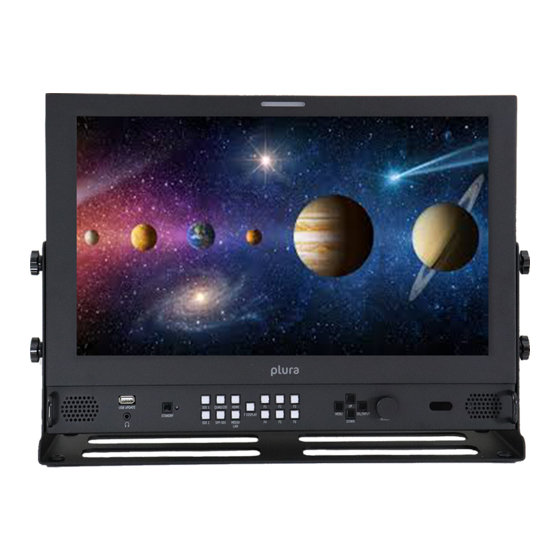

    Operating Instructions SFP-25G SERIES 3. Workflow Diagram and I/O Connections 1) Workflow Diagram ● SFP-224-25G Figure 1. SFP-224-25G Monitor ● Front Keypad Figure 2. Front Keypad - Select and Display the MEDIA LAN Stream ►Select MEDIA LAN Input channel. ●...
  • Page 8 Operating Instructions SFP-25G SERIES ►Activates OSD menu of input source selecting. ►Changes input source by selecting. SEL/INPUT ►Executes functions (by OSD help commands) in main OSD menu. ►Activates child menu. ► Activates main OSD menu. ► Navigates higher menu in main OSD menu.
  • Page 9 Operating Instructions SFP-25G SERIES Server Band MEDIALAN 25 GigE MAIN 25 GigE BACKUP Control Plura PTP Generator IEEE 1588-2008 PTPv2 MAIN Switch 25 GigE BACKUP Switch 25 GigE IP-Stream-A/12G IP-Stream-B/12G SFP-217-25G displaying SFP 217 25G di SFP-217-25G Interface I/O MEDIALAN...
  • Page 10: Installation Overview

    4. INSTALLATION OVERVIEW 1) Initial Setup by Web Browser All Plura monitors should be shipped with the latest versions of firmware/software, but in the case where an update is needed, follow the appropriate steps below. Each update is applied using the Control LAN 2 UI. The Media LAN 2110 Control (out-band) is also accessed via the Control LAN 2 UI.
  • Page 11 6/home' on the Control LAN 2 IP address in the browser address line). If this connects properly, please contact Plura Support to get and install the latest web update. From the Control LAN 2 UI landing page, the “Monitor Update” button is used to update Ember+ Control, Ember+/TSL License, Monitor FPGA (some models), Monitor Firmware (some models), and the Web UI itself.
  • Page 12: Web Configuration & Interface

    Operating Instructions SFP-25G SERIES 5. WEB CONFIGURATION & INTERFACE 1) Overview Once you have established network connectivity with the monitor, you can further configure and update the monitor and the IP 2110 module through its web interface. 2) Ember+ Control Update ●...
  • Page 13 The Ember+ Control Update is now complete. ● To check if the Software was updated properly on your Plura monitor, press the “Menu” button. Select “Setup” →“Advanced” →“Network Config2” the F/W version is shown at the bottom (Figure 11 below, “v.126” in this case).
  • Page 14 Config2 3) Ember+/TSL License Update To update the license please contact Plura Support. Have the MAC address for your monitor available prior to contacting the support team. The MAC address can be found on the UI’s top right corner of the page (shown in Figure 12 below).
  • Page 15 Operating Instructions SFP-25G SERIES Figure 13. Ember+/TSL License File Upload ● Navigate to the folder where you saved the License update file and select it ● Once the file is selected, it will show up in the white text box and the Upload button will now be clickable (no longer grayed out).
  • Page 16: Web Ui Update

    Download the Web Update file to your computer ● Open the Control LAN 2 UI Monitor Update page. Refer to section 'Connecting to the Control LAN 2 UI'. Figure 15. Plura UI ● Click the “Web UI Update” button. ●...
  • Page 17 Operating Instructions SFP-25G SERIES ● Navigate to the folder where you saved the Web update file and select all. ● Once the file is selected, it will show up in the white text box and the Upload button will now be clickable (no longer grayed out).
  • Page 18 6. MEDIA LAN 2110 CONTROL (out-band) 1) Overview Each SFP-25G-Series Plura monitor defaults to the Media LAN input source which is set to display an internally generated 'blue screen' test signal from the 2110 module. The video format defaults to 3840x2160p59.94.
  • Page 19 Operating Instructions SFP-25G SERIES Figure 20. Aux Tab The management tab offers both DHCP and Static IP configuration. To choose a Static ● IP uncheck the DHCP check box (Figure 21). Once the Static IP values are entered click on the submit button.
  • Page 20 FEC must be disabled on all switch ports connected to the Plura monitor 2110 ports. ● PTP must be enabled on the switch and on all switch ports connected to the Plura monitor 2110 ports. 4) 2022-7 Hitless Switching Toggle ON - Configuring Flows for Redundancy ●...
  • Page 21 Operating Instructions SFP-25G SERIES ● You must have PTP enabled in your Media LAN switch for 2022-7 to function properly. ● All flows must be synchronized and aligned (RTP sequence numbers) at encapsulation for 2022-7 hitless switching to function properly at the decap.
  • Page 22 Operating Instructions SFP-25G SERIES Figure 24. Main Populate from SDP Button Clicking the “Populate From SDP” button brings up the SDP URL import window ● (figure 25). Re-imagine Beyond Technology sales@plurainc.com...
  • Page 23 Operating Instructions SFP-25G SERIES Figure 25. Import SDP URL Enter valid SDP URLs for each desired flow and click the populate button (figure 26). ● Figure 26. Example of SDP URLs Re-imagine Beyond Technology sales@plurainc.com...
  • Page 24 Control LAN UI in upcoming web UI updates. For now, you must use an in-band REST API client such as Insomnia or Postman to access these settings. Please contact tech support for further details or specific REST API information Plura tech support contact information Tel: +1 602-944-1044 Email: Tech@plurainc.com Re-imagine Beyond Technology sales@plurainc.com...
  • Page 25 Operating Instructions SFP-25G SERIES Contact Us U.S.A. Corporate Offices: Plura Broadcast, Inc. Ph: +1-602-944-1044 Sales@plurainc.com GERMANY Plura Europe GmbH Ph: +49-6725-918006-70 Sales@plurainc.com U.A.E. Plura MEA Ph:  +971-50-715-9625 Sales@plurainc.com S. KOREA Plura Asia Ph: +82-10-6688-8826 Sales@plurainc.com Re-imagine Beyond Technology sales@plurainc.com...
