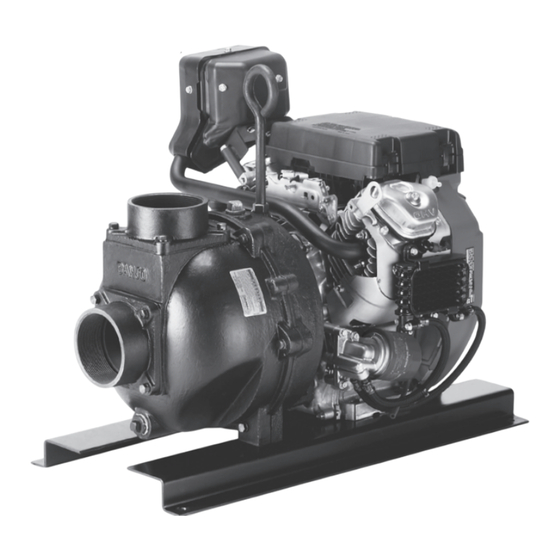

- Page 1 CAST IRON SELF-PRIMING CENTRIFUGAL PUMPS INSTRUCTION MANUAL 2″ 222 SERIES 3″ 333 SERIES 4″ 444 SERIES BANJO CORPORATION A Unit of IDEX Corporation 150 Banjo Drive, Crawfordsville, IN 47933 U.S.A. banjocorp.com | Telephone: (765) 362-7367...
-
Page 2: Operation Warning
Do not restrict the pump inlet. High volume pumps such as the Banjo 444 Series pumps should not have the inlet port or line restricted. If the pump is equipped from the factory with a 4″ inlet flange, the pump should be plumbed with a 4″ inlet line. If the pump is equipped from the factory with a 3″... - Page 3 P E R FOR MANCE FLOW CHART 2″ CAST IRON PUMPS Port Size Suction ........2″ NPT Discharge ........2″ NPT FLOW (GPM) FLOW CHART FOR 222PIH5, 222PI6PRO & 222PBI 3″ CAST IRON PUMPS Port Size Suction ........3″ NPT Discharge ........
- Page 4 NOTE: DISASSEMBLY INSTRUCTIONS: If bracket shims have been installed from the factory, the same number of shims will need to be reinstalled 222 SERIES 333 & 444 SERIES 222 SERIES 333 & 444 SERIES Remove the (6) bolts (222: 12715A, 333/444: V20011SS) and lock...
- Page 5 222: 5/16″ Box End Wrench, 5/16″, 13/16″ & 5/8″ Socket 333/444: 9/16″ Box End Wrench, 9/16″, 13/16″ & 5/8″ Socket, Ratchet with 3″ Extension, Gasket Scraper or Wire Brush, Locktite 242 and Locktite Gasket Adhesive #2 222 SERIES 333 & 444 SERIES 222 SERIES 333 &...
- Page 6 A S S E M B LY INST RU CTI ONS: 222, 333 & 444 SERIES 222, 333 & 444 SERIES 222, 333 & 444 SERIES 222, 333 & 444 SERIES O-ring 5A: The impeller is now ready to be slid onto the drive shaft unit. Be 6A: Place the main pump body O-ring on the outside flange of the sure to align the impeller key with the keyway of the drive unit shaft.
-
Page 7: Troubleshooting Guide
Verify that the suction line does not have any vacuum leaks at any of the connections. f. Verify that the pump is operating at a minimum of 3450 RPM for lifting and self-priming applications. Banjo pump will not prime while operating below 1750 RPM. - Page 8 5. MOTOR RUNS BUT PUMP DOES NOT PERFORM ADEQUATELY. a. Verify that the pump is operating at a minimum of 1750 RPM. Banjo pumps may not operate below this RPM. b. Verify correct pump rotation if an electric motor or hydraulic motor is being used. A counter clockwise rotation (right hand rotation) is required from the motor.
-
Page 9: Fuel System
GX630 • GX660 • GX690 Technical Manual YSTEM GX630 • GX660 • GX690 Technical Manual This engine is supplied with an incomplete fuel system (no fuel tank, no fuel hose, etc.). As such, the OEM is responsible for ensuring evaporative emission regulations are met. See page 31 and the Emissions Regulations Guide YSTEM for additional information. -
Page 10: Evaporative Emissions
A Unit of IDEX Corporation 150 Banjo Drive Crawfordsville, IN 47933 U.S.A. © 2009 American Honda Motor Co., Inc — All Rights Reserved Telephone: (765) 362-7367 Tech Sales: (888) 705-7020 © Copyright 2018 Banjo Corporation. All Rights Reserved. Fax: (765) 362-0744 banjocorp.com BJO_MAN_KK-83_222_333_444_PolyPumpManual_Rev0918...
