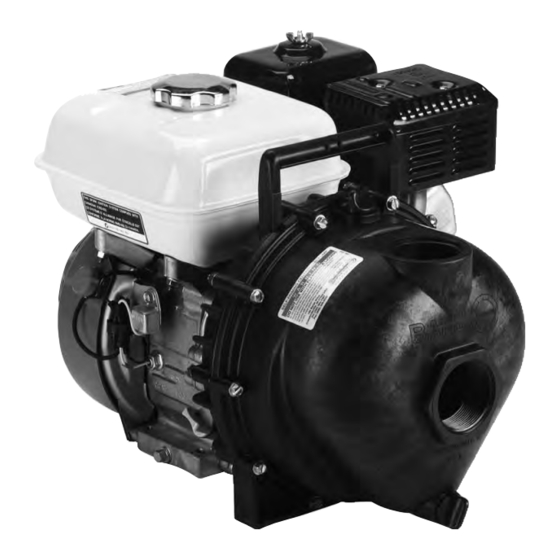

- Page 1 SELF-PRIMING POLY CENTRIFUGAL PUMPS INSTRUCTION MANUAL 1½″, 2″ & 3″ PUMPS BANJO CORPORATION A Unit of IDEX Corporation 150 Banjo Drive, Crawfordsville, IN 47933 U.S.A. banjocorp.com | Telephone: (765) 362-7367...
- Page 2 OVERVIEW Read these instructions and the instructions covering operation of the pump drive unit. The gas engine (if so equipped) is shipped with no oil. Consult your owners manual for specific oil recommendations, maintenance procedures, schedules, and troubleshooting. The maximum angle of operation for gas engine drive units is 25°...
- Page 3 Head flow curve for the following: 3″ Port Size the following: 300PO 300P6PRO 300PO Head flow curve for 300P6PRO Suction ........3″ NPT the following: 300PH-6 300PH-6 Discharge ......3″ NPT 300PO 300P6PRO 300PB 300PB 300PH-6 300PB FLOW (GPM) FLOW (GPM) FLOW (GPM)
- Page 4 DI SA S S E M B LY I N S TR U CT IO NS: Remove the 10 body screws (12720), lock washers (V07018) and Remove the check valve (12705) from the volute (12702A/13702). nuts (V07019) from the pump assembly. Remove the body from the pump assembly.
- Page 5 DI SA S S E M B LY I N S TR U CT IO NS: Remove carbon seal half from rear bracket with a round object. Tap At this time, it may be necessary to polish the drive unit shaft to gently with a hammer.
- Page 6 A SS E MB LY I NS T R U CTI O NS: Install the rear bracket onto the drive unit using the bracket screw Verify impeller hex nut (12775A) is located at the bottom of impeller snout (should be installed). A very light press fit may be required to assemblies from the previous step.
- Page 7 Please see banjocorp.com for more information BANJO CORPORATION A Unit of IDEX Corporation 150 Banjo Drive Crawfordsville, IN 47933 U.S.A. Telephone: (765) 362-7367 Tech Sales: (888) 705-7020 Fax: (765) 362-0744 © Copyright 2018 Banjo Corporation. All Rights Reserved. banjocorp.com BJO_MAN_KK-52_1.5_2_3InchPolyPumpManual_Rev1118 #yellowhandle...
