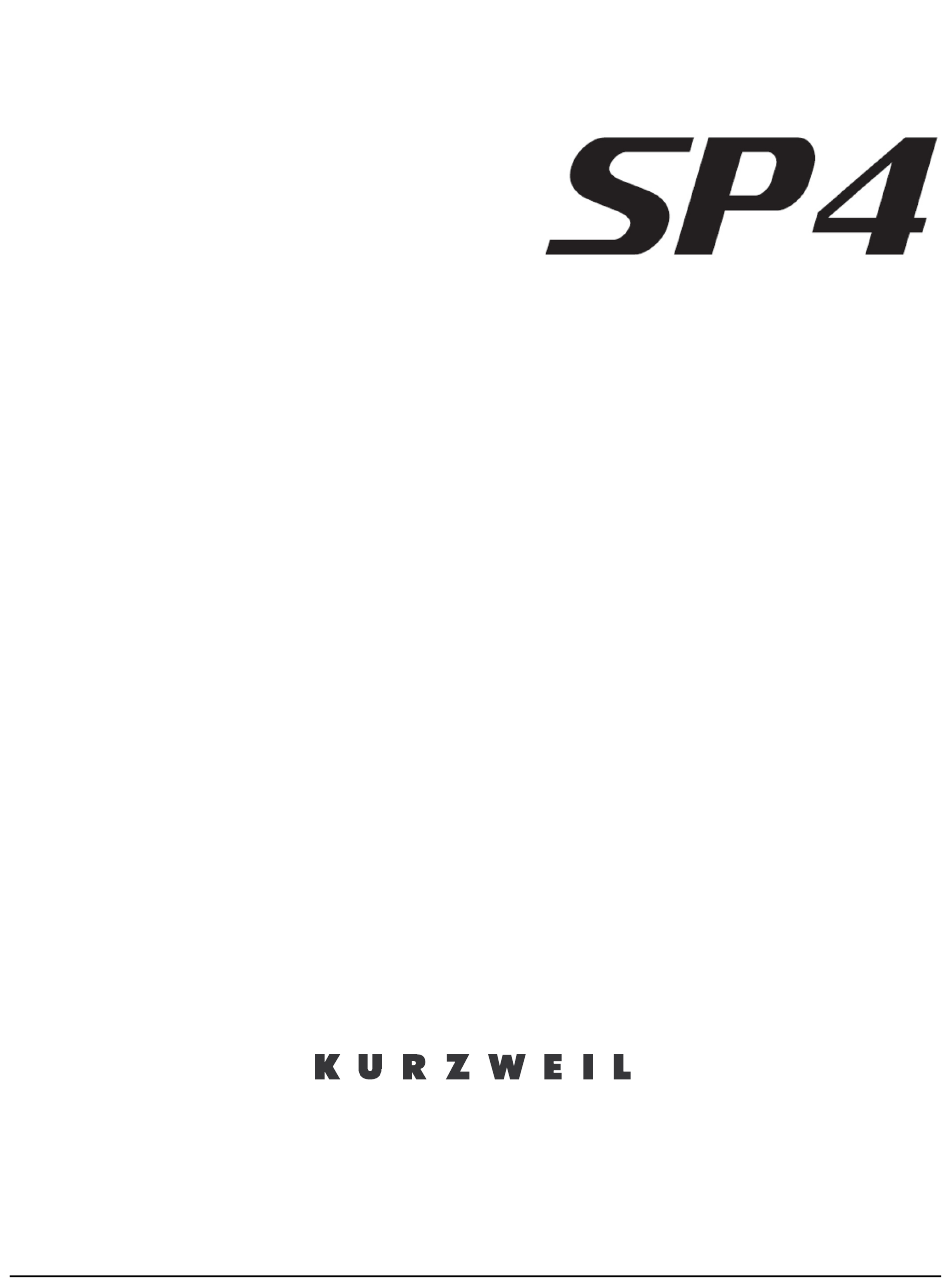

Musician's Guide V2 Addendum
(For SP4-7, SP4-8, and SP76-II)
®
Kurzweil®  is  a  registered  trademark  of  Young  Chang  Co.,  Ltd.  ©2011  All  rights  reserved.  Young
Chang®, Kurzweil®, SP4‐7™, SP4‐8™ and SP76‐II™ are trademarks of Young Chang Co., Ltd. All
other  products  and  brand  names  are  trademarks  or  registered  trademarks  of  their  respective
companies. Product features and specifications are subject to change without notice.
Part Number: 910537-001 - June 2011

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP76-II and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kurzweil SP76-II

  • Page 1 Musician’s Guide V2 Addendum (For SP4-7, SP4-8, and SP76-II) ® Kurzweil®  is  a  registered  trademark  of  Young  Chang  Co.,  Ltd.  ©2011  All  rights  reserved.  Young Chang®, Kurzweil®, SP4‐7™, SP4‐8™ and SP76‐II™ are trademarks of Young Chang Co., Ltd. All other  products  and  brand  names  are  trademarks  or  registered  trademarks  of  their  respective companies. Product features and specifications are subject to change without notice.
  • Page 2: Kurzweil International Contacts

    Kurzweil International Contacts Contact the Kurzweil office listed below to locate your local Kurzweil representative. American Music & Sound  22020 Clarendon St, Suite 305  Woodland Hills, CA 91367  Phone: +1 (800) 431‐2609  Fax: +1 (818) 597‐0411  Email: info@americanmusicandsound.com Young Chang Co., Ltd.  9th Floor, Bldg 102, I‐Park,  Jeongja‐Dong, Bundang‐Gu, Seongnam‐Si, Gyeonggi‐Do  463‐811 South Korea  Phone: +82 (31) 786‐7986~7  Fax: +82 (31) 785‐2701 www.ycpiano.co.kr www.youngchang.com www.kurzweil.com TECHNICAL SUPPORT  Email: support@kurzweil.com...
  • Page 3 SP4 V2 Addendum Introduction SP4 V2 Addendum Introduction This addendum includes new features that are part of the V2 software update for the SP4 OS. To view the OS version installed on your SP4, press the Global function button to the left of the  display, then press the Chan/Param down button to the right of display.  You can download the most recent version of the SP4 OS at www.kurzweil.com by going to the  Downloads section, then clicking on the SP4 link. For details on installing updates to your SP4,  see the Chapter 10, System Mode in the SP4 Musician’s Guide and the “Update Software”  section on page 10‐2 in the SP4 Musician’s Guide. You can also download the most recent version of the SP4 Musician’s Guide in PDF format at  www.kurzweil.com by going to the Downloads section, then clicking on the SP4 link.  Overview Of New V2 Features The SP4 V2 OS introduces the ability to load Programs and Setups from the Kurzweil PC3K,  PC3, and PC3LE. Within the limits mentioned below, converted programs and setups will sound  the same on the SP4 as they do on the PC3K, PC3, or PC3LE. (See The “Load (fill)”  Dialogue on page 4 for full details.)  Program Conversion Overview When loading a program from the PC3K or PC3, the program will sound the same on the SP4  aside from the following limitations. The SP4 has 64 voice polyphony and cannot play as many  notes at the same time compared the to the 128 voice polyphony of the PC3K and PC3. The SP4  cannot load some effects from the PC3K or PC3 if they use more than 10 DSP units. The SP4 does  not load samples. If you load a PC3K program that contains user samples, keyranges that  contain user samples will not play properly.  When loading a program from the PC3LE, the program will sound the same on the SP4. When  loading a program from the PC3LE, the program’s arpeggiator settings are loaded to the SP4. ...
  • Page 4: Program Mode And Setup Mode

    SP4 V2 Addendum Program Mode and Setup Mode Program Mode and Setup Mode The Save Button The Save button is used to save edited programs and setups to the Program mode or Setup  mode User‐bank (see the SP4 Musician’s Guide for details). New in the V2 OS is the ability to  delete single User‐bank programs and setups by using the Save button.  To delete a User‐bank program or setup, first select the program or setup that you wish to delete  in the User‐bank of Program mode or Setup mode. Next, press the Save button, then press the  Chan/Param up button twice. The display will read “Delete xxx ?” (xxx will be the ID number of  the program or setup being deleted). To finish, press the Next button below the display and the  program or setup will be deleted. The display will show the ID number of the program or setup  that was deleted followed by “Empty”. Deleting User‐bank programs and setups is useful in combination with the new “Load (fill)”  dialogue (see The “Load (fill)” Dialogue on page 4 for details.) For example, you could delete  certain User‐bank programs and setups that you no longer use by using the Save button, then  use the “Load (fill)” dialogue to load previously saved User‐bank programs and setups into the  Empty User‐bank IDs. Group Favorites Using The Group Select Buttons In Program mode and Setup mode, you can browse through groups of eight programs or eight ...
  • Page 5: Edit Setup Mode

    SP4 V2 Addendum Edit Setup Mode Edit Setup Mode The Zone Specific Parameters Aux Send Level The Aux Send Level parameter determines the send level for the auxiliary effects of the  currently selected Zone. You can select any level from 0 to 127. Pressing both Value buttons  simultaneously will set this parameter to 20.  New in the V2 OS, you can now set the Aux Send Level parameter to ‐1. A setting of ‐1 sets the  Aux Send Level to use the value originally used by the program in Program mode. This is a  convenient way to set a good Aux Send Level if you are unsure of what level to set. For a description of the auxiliary effects of a Setup, see About Auxiliary Effects on page 8‐14 and  Common Parameters on page 8‐14 of the SP4 Musician’s Guide.  Global Mode Global Mode Stored Parameters Global mode contains parameters that allow you to customize the overall performance and  MIDI settings of the SP4 (see Chapter 9 in The SP4 Musician’s Guide for details on each Global mode  parameter). Some Global mode parameters (such as tuning) are reset to a default setting each  time the SP4 is turned on. For other Global mode parameters, the SP4 remembers the setting you  choose and stores your settings in the SP4. To store settings for Global mode parameters, you  must exit Global mode by pressing one of the Program, Setup, or Edit Setup Function buttons.  Global mode settings are saved when exiting Global mode. Stored Global mode settings will be  used by the SP4 the next time the SP4 is powered on.  The following Global mode parameters are stored in the SP4: • Velocity Map (VMap) •...
  • Page 6 Note: The “Load (overwrite)” dialogue deletes all User‐bank programs and setups in the SP4.  Before using the “Load (overwrite)” dialogue, make sure to save a backup copy of any User‐ bank programs and setups in the SP4 that you would like to save using the “Save All” dialogue  (see page 9‐7 of the SP4 Musician’s Guide for details). To begin the loading process, first turn on the SP4 and your computer, then connect a USB cable  from the SP4’s rear panel USB port to a USB port on your computer. Next, with “Load  (overwrite)” selected, press the Next Value button below the display. A temporary drive named  “SP4” will mount on the computer and the SP4 display will show “Put the file to be loaded into  the temporary drive”. Pressing Previous will cancel the load operation and recall the “Load  (overwrite)” dialogue. Pressing Next will load the file and the display will show “File loaded”.  If no file is in the SP4 temporary drive during the load, the display will show the message  “Nothing loaded”. If an error occurs during the load operation, then the display will show the  error message “Load Error”.  If the SP4 is not connected to a computer, the display will show the error message “Please  connect the unit to the computer”. Pressing Previous will recall the “Load (overwrite)”  dialogue— pressing Next will retry to connect. The “Load (fill)” Dialogue The “Load (fill)” dialogue allows you to load previously saved SP4 User‐bank programs and  setups from an .SPX file. The SP4 can also load saved programs and/or setups from the Kurzweil  PC3K, PC3, and PC3LE from .P3K, .PC3, and .PLE files respectively. Before loading a program  or setup from a .P3K, .PC3, or .PLE file, read the sections below for details on properly saving  and loading files as well as details on program and setup conversion.  The “Load (fill)” dialogue only loads to unused ID numbers in the SP4’s User banks and does  not delete any existing programs or setups in the SP4’s User banks. Files can be loaded to the SP4  from a computer via USB.  To begin the loading process, first turn on the SP4 and your computer, then connect a USB cable  from the SP4’s rear panel USB port to a USB port on your computer. Next, with “Load (fill)”  selected, press the Next Value button below the display. A temporary drive named “SP4” will  mount on the computer and the SP4 display will show “Put the file to be loaded into the  temporary drive”. Pressing Previous will cancel the load operation and recall the “Load (fill)”  dialogue. Pressing Next will load the file and the display will show “File loaded”. If no file is in  the SP4 temporary drive during the load, the display will show the message “Nothing loaded”.  If an error occurs during the load operation, then the display will show the error message “Load  Error”.  If the SP4 is not connected to a computer, the display will show the error message “Please  connect the unit to the computer”. Pressing Previous will recall the “Load (fill)” dialogue—  pressing Next will retry to connect.
  • Page 7 SP4 V2 Addendum Global Mode Loading Programs From The PC3K, PC3, or PC3LE PC3K and PC3 Program Conversion When loading a program from the PC3K or PC3, the program will sound the same on the SP4  aside from the following limitations. The SP4 has 64 voice polyphony and cannot play as many  notes at the same time compared the to the 128 voice polyphony of the PC3K and PC3. The SP4  cannot load some effects from the PC3K or PC3 if they use more than 10 DSP units. For example,  any “double leslie” KB3 program from the PC3K or PC3 will not be able to load its KB3 effects  on the SP4. The SP4 does not load samples. If you load a PC3K program that contains user  samples, keyranges that contain user samples will not play properly. PC3K and PC3 Program Controller Assignment Conversion When loading a program from the PC3K or PC3 to the SP4, any program parameters that were  assigned to slider A, slider B, slider G, or slider I, on the PC3K or PC3 (labeled A Data, B MIDI  13, G MIDI 26, and I MIDI 28) will be controllable on the SP4. On the SP4, control each program  parameter that was assigned to these sliders on the PC3K or PC3 by using the SP4’s Control  knob and selecting respectively the 1 Timbre LED, the 2 Mod LED, the 4 Effect LED, or the 5  Reverb LED. Use the SP4’s Control Select button to select each LED. See the table below for the  Program mode controls that correspond between the PC3K/PC3 and the SP4. PC3K/PC3 Controller Assignments SP4 Controller Assignments slider A (Data) 1 Timbre...
  • Page 8 SP4 V2 Addendum Global Mode Loading Setups From The PC3K, PC3, Or PC3LE To load a setup from the PC3K, PC3, or PC3LE, the object file containing the setup must also  contain the programs used in the setup. For details, see Tutorial: Save A Setup From The PC3K,  PC3, Or PC3LE To Load To The SP4 on page 7. PC3K, PC3, and PC3LE Setup Conversion When loading a setup from the PC3K, PC3, or PC3LE, the setup will sound the same on the SP4  aside from the following limitations. When loading a setup from the PC3K, PC3, or PC3LE, only  the first four zones can be loaded. The SP4 has 64 voice polyphony and cannot play as many  notes at the same time compared the to the 128 voice polyphony of the PC3K and PC3. Also,  setup features from the PC3K, PC3, and PC3LE that do not exist in the SP4 (such as arpeggiators  and riffs) will not be available.  The sound of converted setups will also depend on the sound of converted programs that you  must load to load a setup. See Loading Programs From The PC3K, PC3, or PC3LE on page 5 for  details on Program conversion and limitations. PC3K and PC3 Setup Controller Assignment Conversion When loading a setup from the PC3K or PC3 to the SP4, any parameters that were assigned to ...
  • Page 9 SP4 V2 Addendum Global Mode Tutorial: Save A Setup From The PC3K, PC3, Or PC3LE To Load To The SP4 To load a setup from the PC3K, PC3, or PC3LE, the object file containing the setup must also  contain the programs used in the setup. This can be done on the PC3K, PC3, or PC3LE by saving  the setup object file with “dependent objects”. In order to save setup object file with “dependent  objects”, the setup’s first four zones must contain user edited programs. To ensure that setups  created on the PC3K, PC3, or PC3LE can be loaded by the SP4, follow these steps: 1. On the PC3K, PC3, or PC3LE, press the Exit button until you reach the Program mode  main page. From the Program mode main page, press the Setup mode button to go to the  Setup mode main page (see below), then select the Setup that you wish to save. 2. With the desired setup selected, press the Edit button to the left of the display. This will  bring you to the SetupMode:CH/PROG page where you can view the program selected  for the current zone in the Program field (see below). ...
  • Page 10 SP4 V2 Addendum Global Mode 3. If you are using a PC3K or PC3, see step 3‐(For PC3K/PC3) below. If you are using a  PC3LE, see step 3‐(For PC3LE) below. 3‐(For PC3K/PC3). On the SetupMode:CH/PROG page, the number of the current zone  can be viewed in the top right corner of the display. Change the zone that you are  currently viewing using the Chan/Layer buttons to the left of the display. Select zone 1  and look at the Program field. If the program ID number and name have an asterisk (star  symbol) at their left, then the zone uses a user program and you can skip to step 6. If the  zone does not use a user program, you must edit the program and save it as a user  program. To do this, select the Program field on the SetupMode:CH/PROG page and press  the Edit button to the left of the display. This brings you to the EditProg:KEYMAP page in  the Program Editor for the program of the current zone. Press the left more soft button to  find the Save soft button, then press the Save soft button (see below). This will bring you  to the EditProg:Save page. Continue to step 4.  3‐(For PC3LE). On the SetupMode:CH/PROG page, the number of the current zone can be  viewed in the top right corner of the display. Change the zone that you are currently  viewing using the Chan/Zone buttons to the left of the display. Select zone 1 and look at  the Program field. If the program ID number and name have an asterisk (star symbol) at  their left, then the zone uses a user program and you can skip to step 6. If the zone does  not use a user program, you must edit the program and save it as a user program. To do  this, select the Program field on the SetupMode:CH/PROG page and press the Edit button  to the left of the display. This brings you to the EditProg:PARAMETERS page in the  Program Editor for the program of the current zone. Press the Save button to the right of  the display, this will bring you to the EditProg:Save page.
  • Page 11 SP4 V2 Addendum Global Mode 4. On the EditProg:Save page (see below), an unused user ID number is automatically  selected to save the program. (You can choose a different ID number if desired.) Press the  Save soft button to save the program at the selected ID number as a user edited program.  The display will quickly show the message “Save successful”, then you will be returned to  the EditProg:KEYMAP page (or the EditProg:PARAMETERS page on the PC3LE).  5. On the EditProg:KEYMAP page (or the EditProg:PARAMETERS page on the PC3LE),  press the exit button and you will be returned to the SetupMode:CH/PROG page. On the  SetupMode:CH/PROG page, look at the program ID number and name in the Program  field. The program ID number and name should now have an asterisk (star symbol) at  their left, which means the zone uses a user program (see below).  6. Repeat steps 3 through 5 for zones 2, 3, and 4 of the setup, then continue to step 7. 7. On the SetupMode:CH/PROG page, press the Exit button to the right of the display. This  will bring you to the SetupMode:Exit page where you will be prompted to save the setup  you have just edited (see below). Press the Yes soft button, this will bring you to the  SetupMode:Save page.
  • Page 12: Troubleshooting

    SP4 V2 Addendum Troubleshooting 8. On the SetupMode:Save page (see below), an ID number is automatically selected to save  the setup. (You can choose a different ID number if desired.) Press the Save soft button to  save the setup at the selected ID number. The display will quickly show the message  “Save successful”, then you will be returned to the Setup mode main page.  9. Use Storage mode to save the setup to an external device as a .P3K, .PC3, or .PLE file. See  the Storage mode chapter in the PC3K, PC3, or PC3LE Musician’s Guide for more details.  When saving to an external device, Storage mode will present you with the Storage:Save  Dependents page (see below.) The Storage:Save Dependents page prompts you with the  message “Save Dependent Objects?”. Press the Yes soft button to save the setup with  dependent objects. The setup will be saved in an object file along with the program objects  that are needed to load that setup. Troubleshooting The LCD Display Appears Blank If the SP4’s LCD display appears blank or hard to read when the unit is powered on, the LCD  contrast may need to be adjusted. There is a small contrast knob for the LCD display on the front  panel of the SP4, above the Chan/Param buttons. The contrast knob is not labeled. Slowly turn  the contrast knob until the LCD becomes readable. The contrast knob is sensitive and the LCD  may only be readable with the contrast knob set within a certain range. ...
