M
ONTAGEANLEITUNG
S
I
HORT
NSTRUCTION
1.

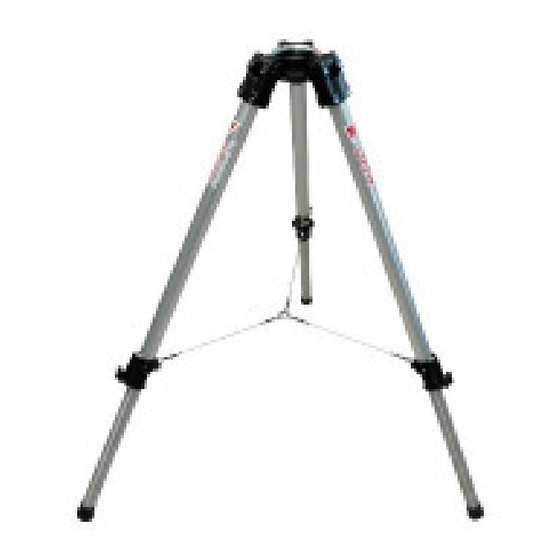

Sichere Position des Statives /
Secure position of tripod
4.
Sternschraube sicher anziehen /
Fix screw securely
7.
Kranbremse mit Abstand montieren /
Brake callipers with space for mounting of
basic segment
Kurzanleitung / Short Instruction Manual - Crane 100
/
M
ANUAL
2.
Montage der Kranstütze/
Assembling of column on the stand
5.
Eingebaute Wasserwaage /
Spirit level integrated
8.
Hauptsegment 3 Montieren /
Mount basic segment No. 3 in accurate position
3.
Sternschraube mit Beilagscheibe sicher
befestigen /
Fix screw with shim
6.
Stativ ausrichten – O Punkt/
Spirit level 0 point
9.
Achsstift einführen /
Mount axis
1 von / of 7
Advertisement
Related Manuals for ABC-Products Crane 100
Summary of Contents for ABC-Products Crane 100
- Page 1 Kranbremse mit Abstand montieren / Hauptsegment 3 Montieren / Achsstift einführen / Brake callipers with space for mounting of Mount basic segment No. 3 in accurate position Mount axis basic segment Kurzanleitung / Short Instruction Manual - Crane 100 1 von / of 7...
- Page 2 Stick pin in the recess for 0-Position Fertiges Montagebild / Umlenkhebel befestigen / Steuerseil um Steuerscheibe legen / Main assembling picture Fix lever securely. Wrap control cable around the disc Kurzanleitung / Short Instruction Manual - Crane 100 2 von / of 7...
- Page 3 Elemente auf Anschlag miteinander (Aufbauversion 8) / einhängen/ verbinden / Connect the parts to stop position Mount extension of tower tube Hook tower cable at the segment 4 Kurzanleitung / Short Instruction Manual - Crane 100 3 von / of 7...
- Page 4 Steuerseil am Segment 3 einhängen / Fertiges Montagebild Muttern kontern/ Hook the steering rope at segment no.3 / Picture (detail) Tighten the tower wire, fix with screw nut securely Kurzanleitung / Short Instruction Manual - Crane 100 4 von / of 7...
- Page 5 Montagebild seitliche Abspannung / Abspannseil links an Kopfsegment verbinden / Picture (detail) einhaken/ Connect rope (clamping piece) with outrigger Hook in the rope on the left side Kurzanleitung / Short Instruction Manual - Crane 100 5 von / of 7...
- Page 6 Load up the counterweights for taring the For assembling the crane in “middle” and crane, secure weights on tubes with securing “short” version use short tower tube clips Kurzanleitung / Short Instruction Manual - Crane 100 6 von / of 7...
- Page 7 Change angle, fix the brake again! Bitte beachten Sie zudem die Sicherheitshinweise in der Betriebsanleitung! Please consider the safety references in the manual! Kurzanleitung / Short Instruction Manual - Crane 100 7 von / of 7...
