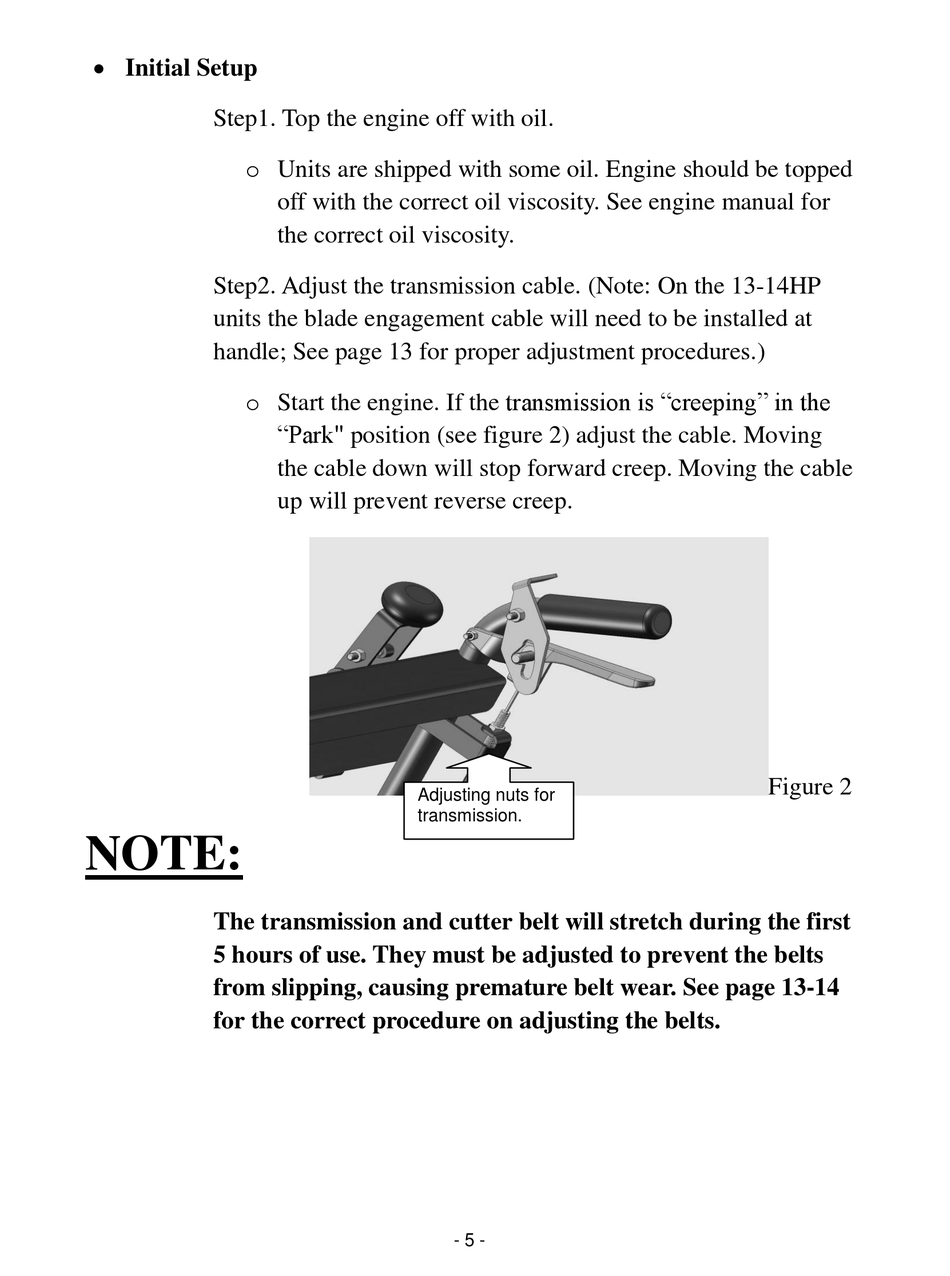

Lawn Solutions Turf Revitalizer Owner's Manual page 5

 Initial Setup
Step1. Top the engine off with oil.
o Units are shipped with some oil. Engine should be topped
Step2. Adjust the transmission cable. (Note: On the 13-14HP
units the blade engagement cable will need to be installed at
handle; See page 13 for proper adjustment procedures.)
o Start the engine. If the transmission is "creeping" in the
NOTE:
The transmission and cutter belt will stretch during the first
5 hours of use. They must be adjusted to prevent the belts
from slipping, causing premature belt wear. See page 13-14
for the correct procedure on adjusting the belts.
off with the correct oil viscosity. See engine manual for
the correct oil viscosity.
"Park" position (see figure 2) adjust the cable. Moving
the cable down will stop forward creep. Moving the cable
up will prevent reverse creep.
Adjusting nuts for
transmission.
- 5 -
Figure 2
