OUTPUT RATINGS:
MAXIMUM 6A TOTAL FOR ALL CIRCUITS
INPUT RATINGS: 120VAC 60Hz, 12VA MAX.
CAUTION:
Wire all circuits as Class I or Electric Ligh and Power Circuits.
OUTPUT (SOURCING 120VAC)
PWR
L N G
1 2 3
120 VAC
Power
Pump and Valve output relays
source 120 VAC power.
PLL Installation and Operation Manual

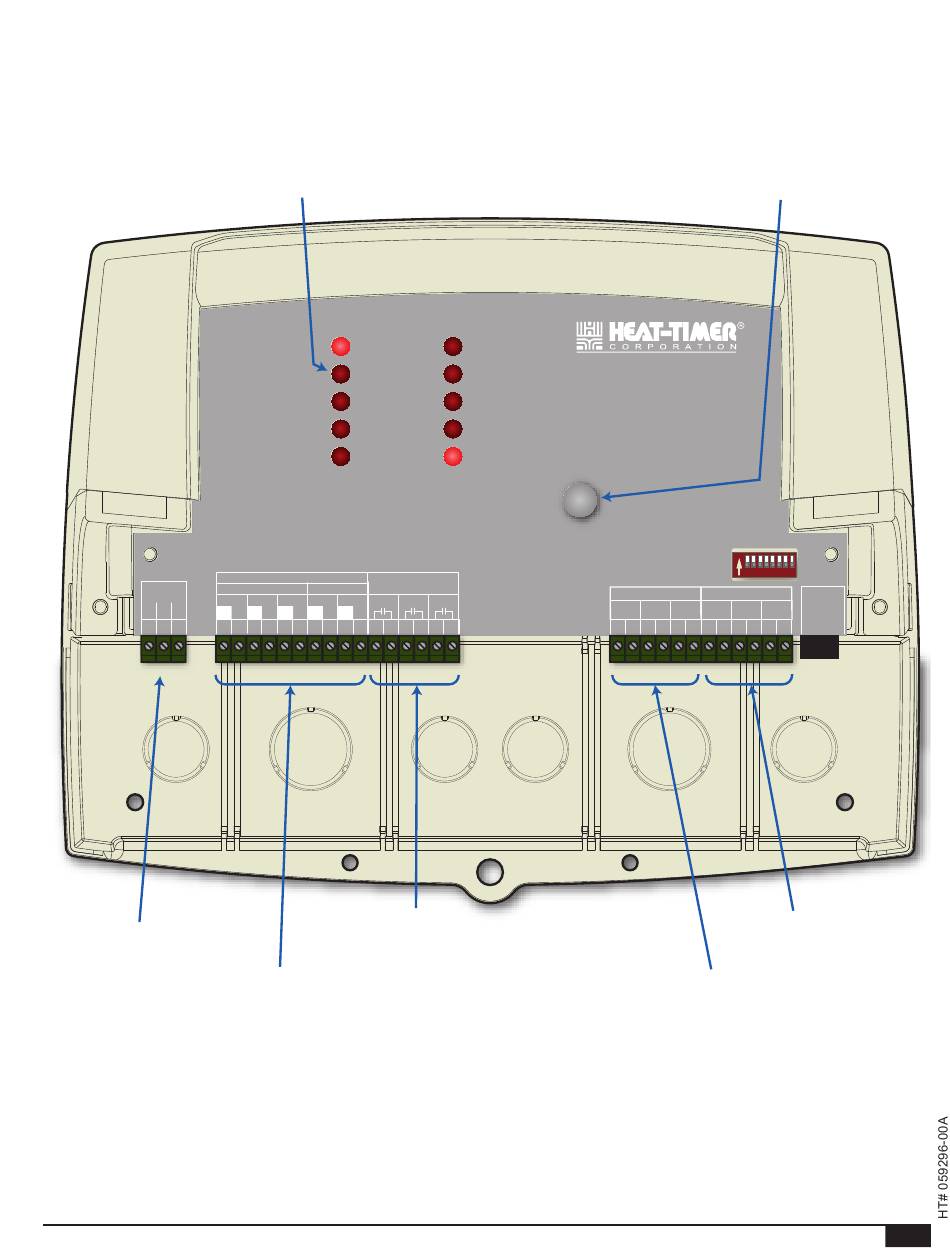

PLL LayOuT

LED indicates the
associated relay status.
PUMP 1
PUMP 2
PUMP 3
VALVE 1
VALVE 2
2A RESISTIVE, 120VAC
1/4 HP, 120VAC 60Hz, Pilot Duty 80VA, 120VAC
Risk of Electric Shock. Use Copper Conductors Only.
ALARMS
PUMPS VALVES
P1 P2 P3
V1 V2 A1
L N L N L N L N L N
4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
Alarm output relays
do not source power.
ALARM 1
ALARM 2
ALARM 3
PUMP LEAD-LAG
COM
ALARM
POWER
RESET
A2 A3
Alarm Reset Button
PLL
DIP SWITCHES
On
DO NOT APPLY ANY VOLTAGE
1 2 3 4 5 6 7 8
TO INPUT TERMINALS
PUMP CALL FLOW INPUTS
C1 C2 C3 F1 F2 F3
20
21 22 23 24 25 26 27 28 29 30 31
Pump Flow Inputs
(Dry-Contact)
Pump Call Inputs
(Dry-Contact)
RS-485
3
