User Manual
FIELD GUIDE for Apex2™
Personal Sampling Pump
TM
This field guide is to familiarise you and get you started with the Apex2
Personal Air
Sampling Pump range. We recommend that to get the best from your purchase, you refer to
the full handbook which can be downloaded from the support section of our website;
www.casellasolutions.com. The Airwave™ App for your mobile device can also be
downloaded from our website.

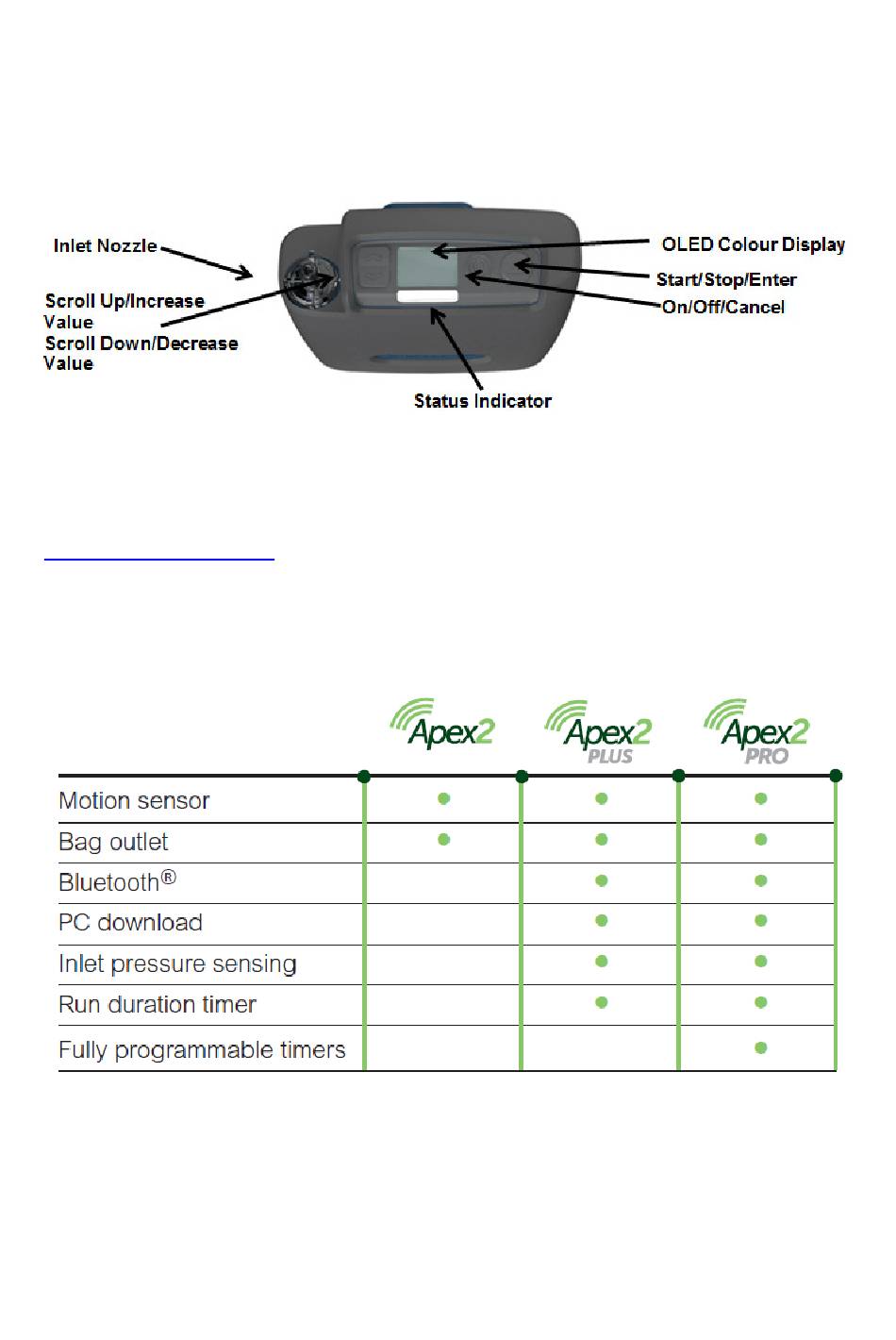

The Apex2™ Personal Sampling Pump is available in one of three models with the following
functionality.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Casella Apex2
Summary of Contents for Casella Apex2
- Page 1 The Airwave™ App for your mobile device can also be downloaded from our website. The Apex2™ Personal Sampling Pump is available in one of three models with the following functionality.
- Page 2 To 12V Power for Download Adapter Charging commences when an Apex2 is placed in the docking station, the pumps display will show a battery charging icon plus the batteries percentage state of charge. The display may blank after the user selected display timeout period however the red LED will flash continuously during the entire charging cycle.
- Page 3 Stop mode screens detailing the last run data. To power off the Apex2 from any screen when the pump is not running, press and hold the key for 3 seconds. Countdown screens will be displayed:-...
- Page 4 Warning Messages The following warning messages are displayed at power up, if relevant. Any key press clears the message. The following error messages may be displayed for other faults during normal sampling applications:- Blockage Retry: If the pump cannot maintain the target flow rate within 5% for more than 20 seconds (due to say a kinked tube or inlet blockage) then it will automatically halt sampling.
- Page 5 The Main Menu To access the main menu press the Down key < > once from a Stop mode screen. Once in the menu use the < > < > to scroll through the options and < > to accept the selected option.
- Page 6 Timers (Plus and Pro Models Only) To use the timers, ensure ‘Advanced mode’ has been activated within the power up ‘Settings’ menu. Run Duration Timer (Plus and Pro Models) The Run Duration timer allows the pump to sample for a fixed period and switch off automatically when that time has elapsed.
- Page 7 Power-Up Configuration Menu To access the Settings menus, press and hold the Up < > and Enter < > keys immediately following power up. Scroll through the items until the desired function is highlighted and accept with the Enter < >...
- Page 8 App for your mobile device The Airwave™ App can be downloaded from www.casellasolutions.com for your Android mobile device. Ensure the Bluetooth® is enabled on the pump. Tap the icon on your mobile device to open the App. The dashboard shows the operating status plus the vital measurement results from all the instruments in range.
- Page 9 Data Download Utility This downloads run data from the Apex2 into an Excel compatible format to allow you to collate data for your reports. Place your Apex2 in the docking station in the pocket with the symbol. The Download Utility can be found on our website at: http://www.casellasolutions.com/support/software...
- Page 10 Casella Contact Details:- info@casellasolutions.com USA: info@casellaUSA.com China: info@casellasolutions.cn India: Casella.sales@ideal-industries.in For more information or to find out more about Casella and our products, please visit our website at: http://www.casellasolutions.com Apex2 Field Guide FG66-00.05 English June 2015...
