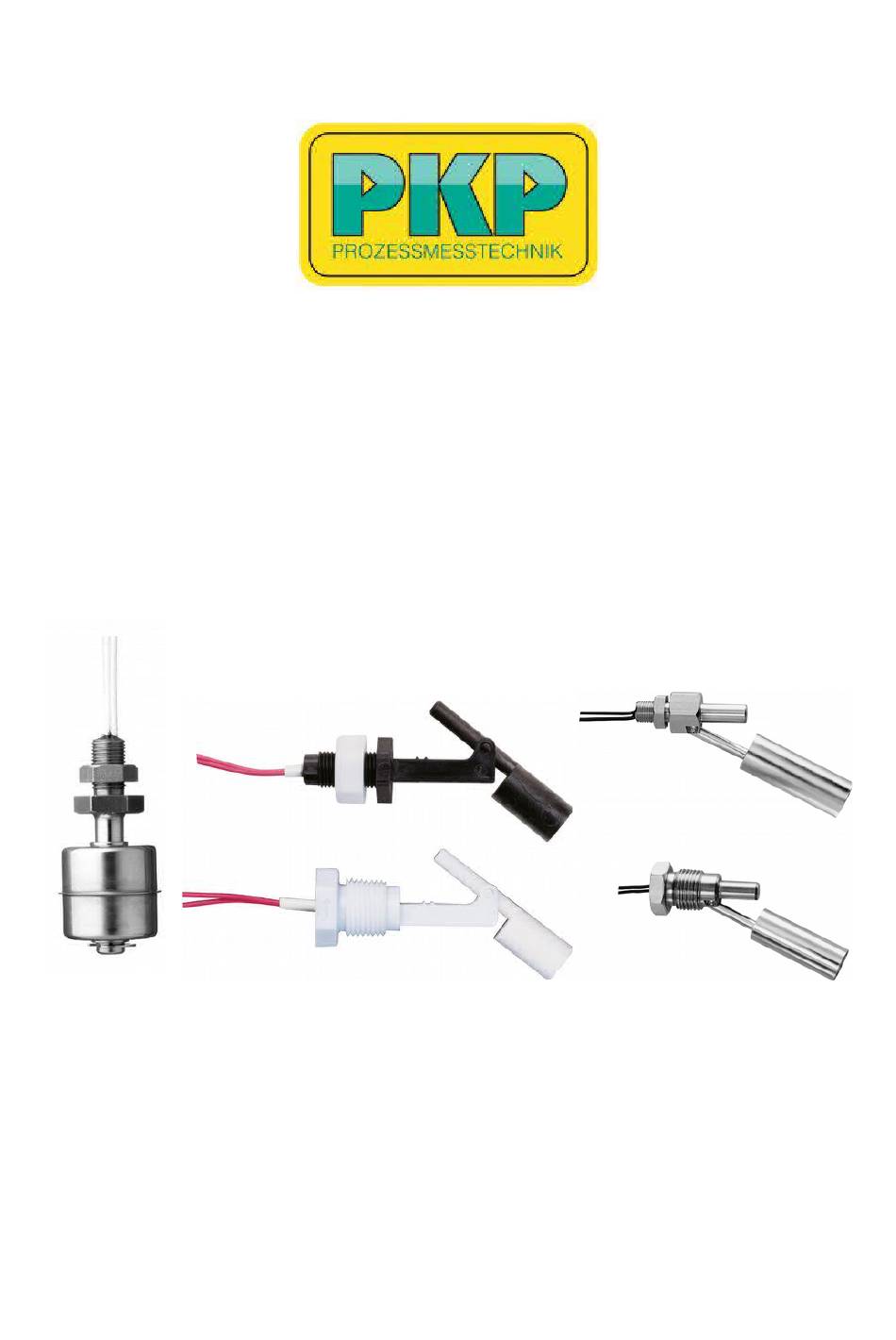

- Page 1 Instruction Manual FS13 / FS14 / FS15 Miniature magnetic float level switches for vertical and side mounting PKP Prozessmesstechnik GmbH Borsigstraße 24 D-65205 Wiesbaden-Nordenstadt Tel.: ++49-(0)6122-7055-0 Fax: ++49-(0)6122-7055-50 Email: info@pkp.de...
-
Page 2: Table Of Contents
Proper Usage The magnetic flow switches of the series FS13, FS14 and FS15 are designed to control the level of liquids which do not attack the device materials. All other usage is regarded as being improper and outside the scope of the device. -
Page 3: Functional Description
Functional Description The level switches model FS13, FS14 and FS15 work according to the magnetic float principle. The float is lifted upwards by the rising liquid level in the tank until the magnetic field of the integrated permanent magnet activates a Reed contact. - Page 4 Dispose of the devices according to regional and national regulations and guidelines. When • disposing of media residues may be present on the device. Mounting positions of the float switches FS14 and FS15 at sidelong mounting FS13 / FS14 / FS15 Instruction manual 02/2018 page 4...
-
Page 5: Connecting Devices Equipped With Reed Switches
Capacitive loads consist e.g. of long connection cables or capacitive consumers. WARNING: High current spikes at switching on (this will exceed the nominal current) Protective measures: (examples) Limitation of current by a resistor FS13 / FS14 / FS15 Instruction manual 02/2018 page 5... - Page 6 For Reed switches of 10 – 40 VA Voltage [V] Resistance [Ohm] Capacitance [nF] 1500 For Reed switches of 40 – 100 VA Voltage [V] Resistance [Ohm] Capacitance [nF] 1000 FS13 / FS14 / FS15 Instruction manual 02/2018 page 6...
-
Page 7: Service And Maintenance
With a visual inspection, the parts of the equipment that come into contact with the storage liquid, its vapors or condensate are checked for possible corrosion. This test can only be carried out from inside the storage container or after removal of the device. FS13 / FS14 / FS15 Instruction manual 02/2018 page 7... - Page 8 • The level switches model FS13 work according to the The float level switches FS13 are designed to monitor the level of nearly all liquids which do not affect the used materials, for magnetic float principle. The float is lifted upwards by example as HIGH-alarms or for controlling valves and pumps.
- Page 9 10 bar at room temperature 120 °C 710 kg/m³ Borsigstr. 24 • D-65205 Wiesbaden 10 Brent Drive • Hudson, MA 01749 +49 (0) 6122-7055-0 • T +49 (0) 6122 7055-50 +1-978-212-0006 • T +1-978-568-0060 info@pkp.de • www.pkp.de info@pkp-usa.com • www.pkp-usa.com...
- Page 10 • • • • • • ...
- Page 11 • • ...
- Page 12 • • • • • • ...
- Page 13 • • ...
