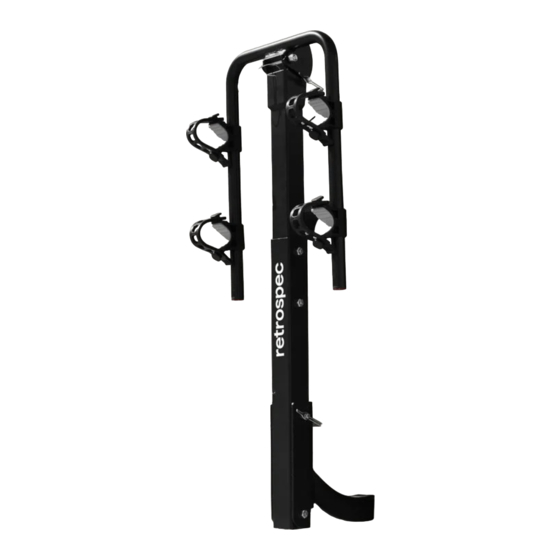

Retrospec LENOX 2 Owner's Manual

LENOX 2, 3, 4, & 5 BIKE
HITCH RACK OWNER'S MANUAL
Only install rack on vehicles with a 2" receiver hitch (no hitch adapters).
Never use on trailers, RV's, hitch adapters, or front of vehicle.
Bikes must be secured to the rack using the supplied tie-downs and additional straps if
necessary (not supplied).
Check regularly during use that all bicycles remain secured and all bolts and pins are tight.
Bicycle tires should not be placed directly in front of an exhaust pipe. Tires can melt.
Not safe for Tandem Bikes, Recumbent Bikes, Motorized Bikes, or other non-standard bikes.
ASSEMBLY INSTRUCTIONS

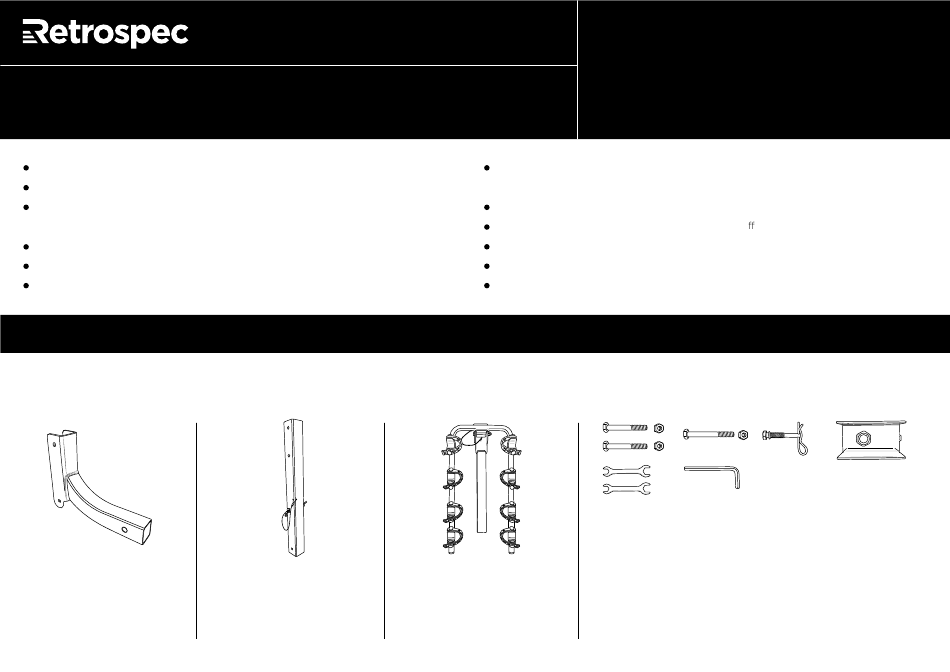

MAIN PARTS:
1 – Hitch Insert ("L"-shaped, inserts
into 2" hitch receiver on vehicle)
* PLEASE READ INSTRUCTIONS ENTIRELY BEFORE BEGINNING ASSEMBLY *
1 – Lower Mast (Retrospec logo
sticker)
Max weight (evenly distributed): 5 Bike rack = 170lbs/77kgs, 4 Bike rack = 140lbs/63kgs, 3
Bike rack = 110lbs/50kgs, 2 Bike rack = 80lbs/36kgs
Do not block tail-lights or other car lights with bikes.
Drive carefully. Drive slowly over bumps. Do not Drive o -road.
Do not use the rack if any parts are missing. Contact Retrospec for replacement parts.
Bikes should never extend beyond side of vehicle.
Fold carry arms or remove rack when not in
HARDWARE:
1 – Upper Mast/Carrier Assembly
(Tie-Down Cradles attached)
WA R N I N G & C A U T I O N
Improperly installed rack or bikes can fall onto roadway
potentially causing a serious accident resulting in bodily
injury. Do not use rack on any vehicle where the rack cannot
be properly and safely installed.
use.
Contents Hardware:
2 – 2 ½" bolts with nuts (14mm)
1 – 3" bolt with nut (14mm)
1 – 3 1/4" half-thread Anti-Rattle Bolt with
lock washer & Hairpin Cotter Pin (19mm)
1 – AntiRattle Adapter (minimizes wobble)
2 – 14mm/19mm wrenches
1 – 5mm hex wrench
