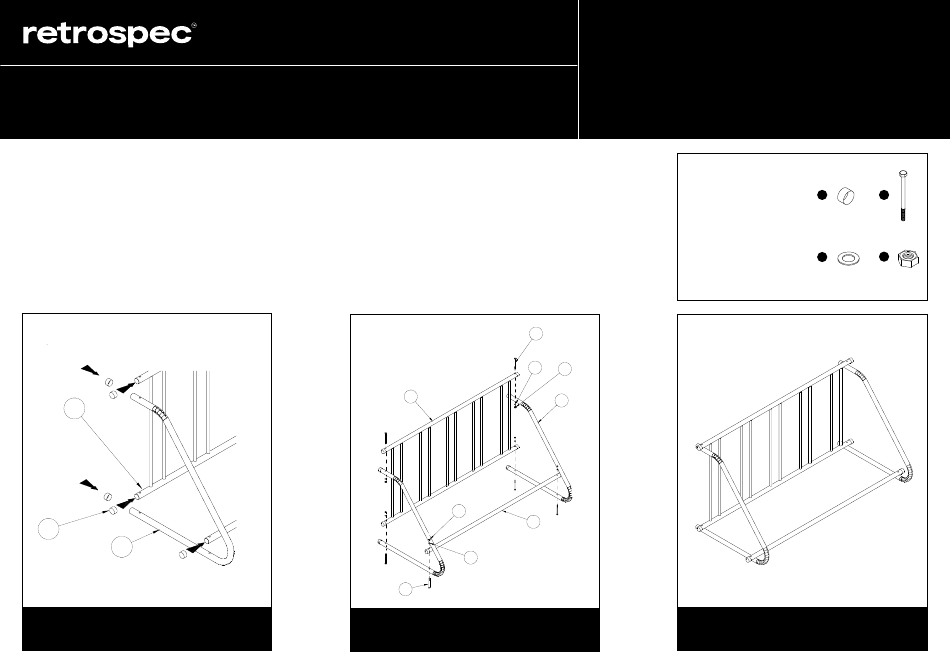

Retrospec 5 & 10 BIKE SINGLE-SIDE Assembly Instructions

COMMERICAL BIKE RACK ASSEMBLY INSTRUCTIONS
5 & 10 BIKE SINGLE-SIDE/10 & 20 BIKE DOUBLE-SIDE
5-Bike Single-SideS
Tools Needed:
Scissors or box cutter to open box and cut packing ties.
2 x 17mm open/box wrenches or 2 x adjustable wrenches (use for all 4 sizes/models)
Assembly: Check diagrams closely
• For bolts inserted at the top of the rack, insert bolts from the top, threaded portion pointing down, so the nut/washer is facing down.
• For bolts inserted at the bottom/ground of the rack, insert bolts from the bottom, threaded portion pointing upwards, so the nut/washer is facing up.
Footprint (Rack Dims): 60"L x 28"W(depth) x 30"H
B
D
A
Step 1
Footprint with Bikes: 60"L x 71"W(depth) x 30"H
B
E
Step 2
TIPS:
- Loose assemble the rack before tightening all bolts/nuts securely.
- Two people will make assembly easy (and fun).
E
F
G
A
G
C
F
Contents:
D
A: 2 x End Supports
B: 1 x Grid
C: 1 x Tie-Bar-Long
D: 10 x End Caps-Plastic Orange
E: 6 x Bolts 3"
F
F: 6 x Washers
G: 6 x Nylock Nuts
Step 3
E
G
