- Page 1 INSTRUCTION INSTRUCTION INSTRUCTION INSTRUCTION MANUAL MANUAL MANUAL MANUAL QUIMBOA COFFEE GRINDER QUIMBOA COFFEE GRINDER QUIMBOA COFFEE GRINDER QUIMBOA COFFEE GRINDER...
- Page 2 a u t o m a t i c g r i n d e r s...

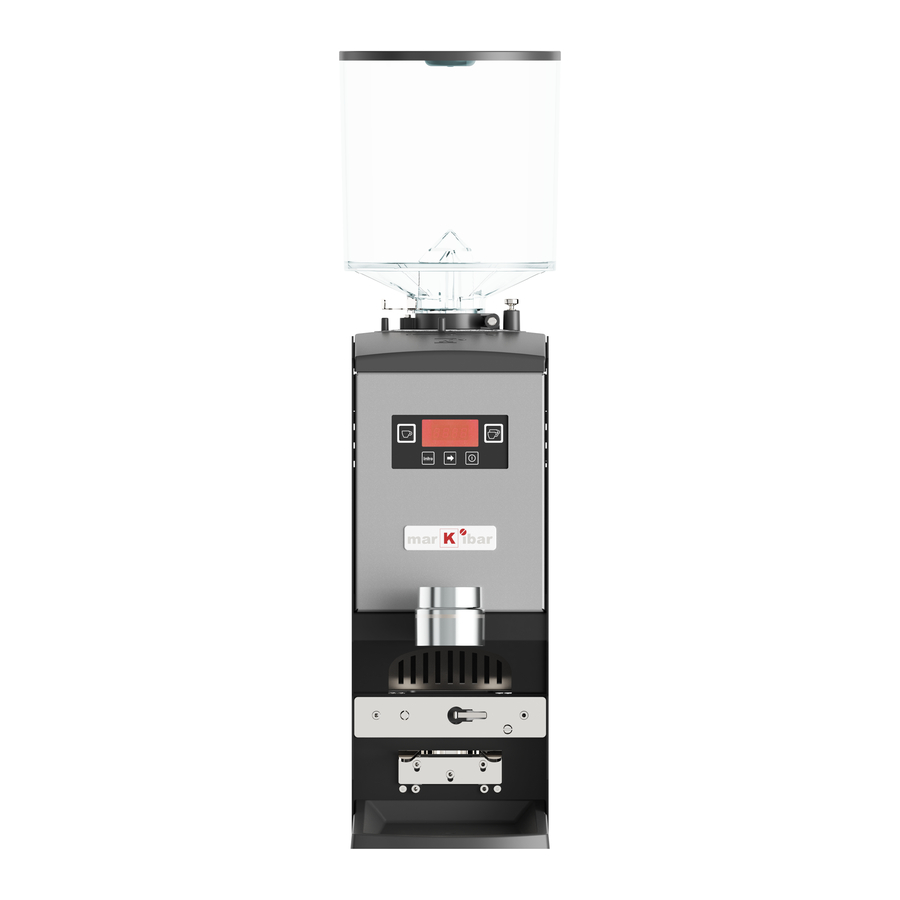

- Page 3 Dear customer: The QUIMBOA automatic coffee grinder is a completely automatic professional espresso coffee grinder that provides you with just the right amount of freshly ground coffee quickly and conveniently for the perfect cup of coffee.
-
Page 4: Table Of Contents
a u t o m a t i c g r i n d e r s TABLE OF CONTENTS 1.- Safety instructions. 2.- Technical information. 3.- Description. 4.- Safety features of the grinder. 5.- Installation and set up. 6.- Display. 7.- Problem solving. -
Page 5: Safety Instructions
a u t o m a t i c g r i n d e r s 1.- Safety instructions. Please read and pay close attention to the following safety instructions. The failure to follow these instructions may result in a malfunction or damage to the machine. - Page 6 a u t o m a t i c g r i n d e r s stoppage. After 30 minutes of continuous operation, allow the motor to cool before using it again. Do no modify or alter the machine in any way. The Manufacturer assumes no responsibility for damage caused by the failure to follow these instructions.
-
Page 7: Technical Information
a u t o m a t i c g r i n d e r s 2.- Technical information. CHARACTERISTICS DATA VOLTAGE / FREQUENCY 230 V 50 Hz RATED POWER 525 W ROTATION 1350 rpm OVERLOAD FUSE 10 A, Type T Maximum permitted operating time 34 % on, 66% off HEIGHT H... -
Page 8: Description

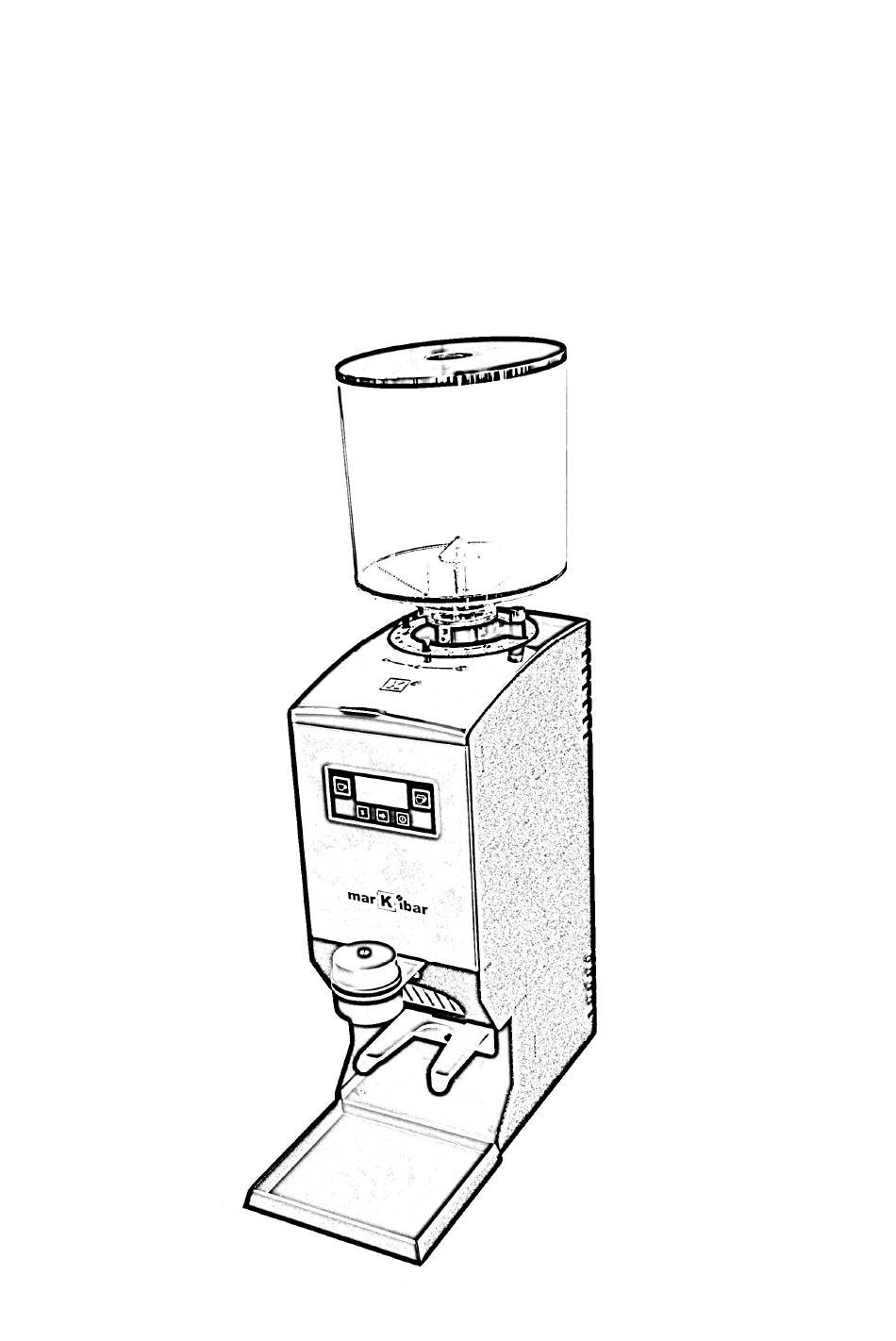

a u t o m a t i c g r i n d e r s 3.- Description. 1.- Bean hopper 9.- Keypad and display. 2.- Hopper closing device. 10.- Filter-holder rest. 3.- Grinding level lock. A.- Display. 4.- Grinding level setting lever. B.- 1 Cup button. -
Page 9: Installation And Set Up
a u t o m a t i c g r i n d e r s 4.- Safety devices. The grinder motor is protected by a thermal safety device that cuts off the electricity to the motor if it becomes overheated. This device is automatically reset when the machine cools. - Page 10 a u t o m a t i c g r i n d e r s 5.2. - Installation and set up. Open the clamp which sets the bean hopper, and place it as shown in the picture. For compliance with safety requirements, tighten slightly with a tool the screw that holds the hopper in place.
- Page 11 a u t o m a t i c g r i n d e r s To connect the grinder to the power supply, do the following: The grinder's electrical connection must be properly protected by current limiting circuit breakers, a differential switch and a ground connection, according to current safety regulations.
- Page 12 a u t o m a t i c g r i n d e r s 5.3.- Basic settings. 5.3.1.- Grinding fineness setting. The grinder is adjusted in the factory to be used with espresso coffee. It simply needs a bit of fine tuning to adapt it to the characteristics of the coffee used in your establishment.
- Page 13 a u t o m a t i c g r i n d e r s 5.3.2.- Coffee dosage setting. The grinder is set at the factory for a grinding time of 2 seconds for 1 cup of coffee and 3.5 seconds for 2 cups of coffee.
- Page 14 Press filter-holder, release and press again (double click): Two cups of coffee. Automatic filter-holder identification (Only for the QUIMBOA CLASS A model). This patented system automatically detects 1- cup or 2-cup filter-holders. For the system to work, a tag or identifier must be fixed to the...
- Page 15 - 6.- Counter. The QUIMBOA grinder has a display system that will show the number of coffees (both 1-cup and 2-cup) that have been prepared so far at any time.
-
Page 16: Problem Solving
a u t o m a t i c g r i n d e r s 7.- Problem solving. PROBLEM CAUSE SOLUTION The grinder is off. The differential switch or Reset installation's Display is off. current limiting circuit protective device. breaker has been tripped. -
Page 17: Cleaning
a u t o m a t i c g r i n d e r s 8.- Cleaning. Before proceeding to clean any grinder parts, disconnect from the power supply by unplugging the electrical cord from the back of the grinder. 8.1.- Cleaning the bean hopper. -
Page 18: Maintenance
a u t o m a t i c g r i n d e r s 9.- Maintenance. In order to ensure the operating efficiency and correct performance of this grinder, it is essential to follow the manufacturer's instructions and to make sure that any maintenance work is performed by qualified personnel. - Page 19 10.- CE Declaration of Conformity. THE UNDERSIGNED: MARKIBAR INNOVACION S.L.L. Pol. Ind. Noain-Esquiroz. c/G n.24 31191 ESQUIROZ (Navarra) SPAIN HEREBY DECLARES UNDER HIS/HER OWN RESPONSIBILITY AS THE...
-
Page 20: Warranty Conditions
a u t o m a t i c g r i n d e r s 11.- Warranty conditions - This grinder has a 1-year warranty period, valid from the date of purchase. Warranty covers defects malfunctioning original materials defective assembly. - Page 21 a u t o m a t i c g r i n d e r s - The manufacturer is not liable for any consequential or secondary damages in any case. - The Warranty does not cover any damages arising from repairs performed by unauthorized personnel.
-
Page 22: Appendix I. Filter-Holder Identification
12.- Appendix I: Filter-holder identification. (Only for QUIMBOA CLASS A model) As explained in section 5.3.3, the grinder has several filter-holder identification systems, which can be set by your Service Technicians. - Page 23 a u t o m a t i c g r i n d e r s A-class grinders already configured to detect the presence of the tag. The display shows a horizontal line. If not, ask your Service Technician to program the grinder in MAG mode.
- Page 24 27G200060 MK QUIMBOA INSTRUCTION MANUAL. V1.2 ~ 22 ~...
