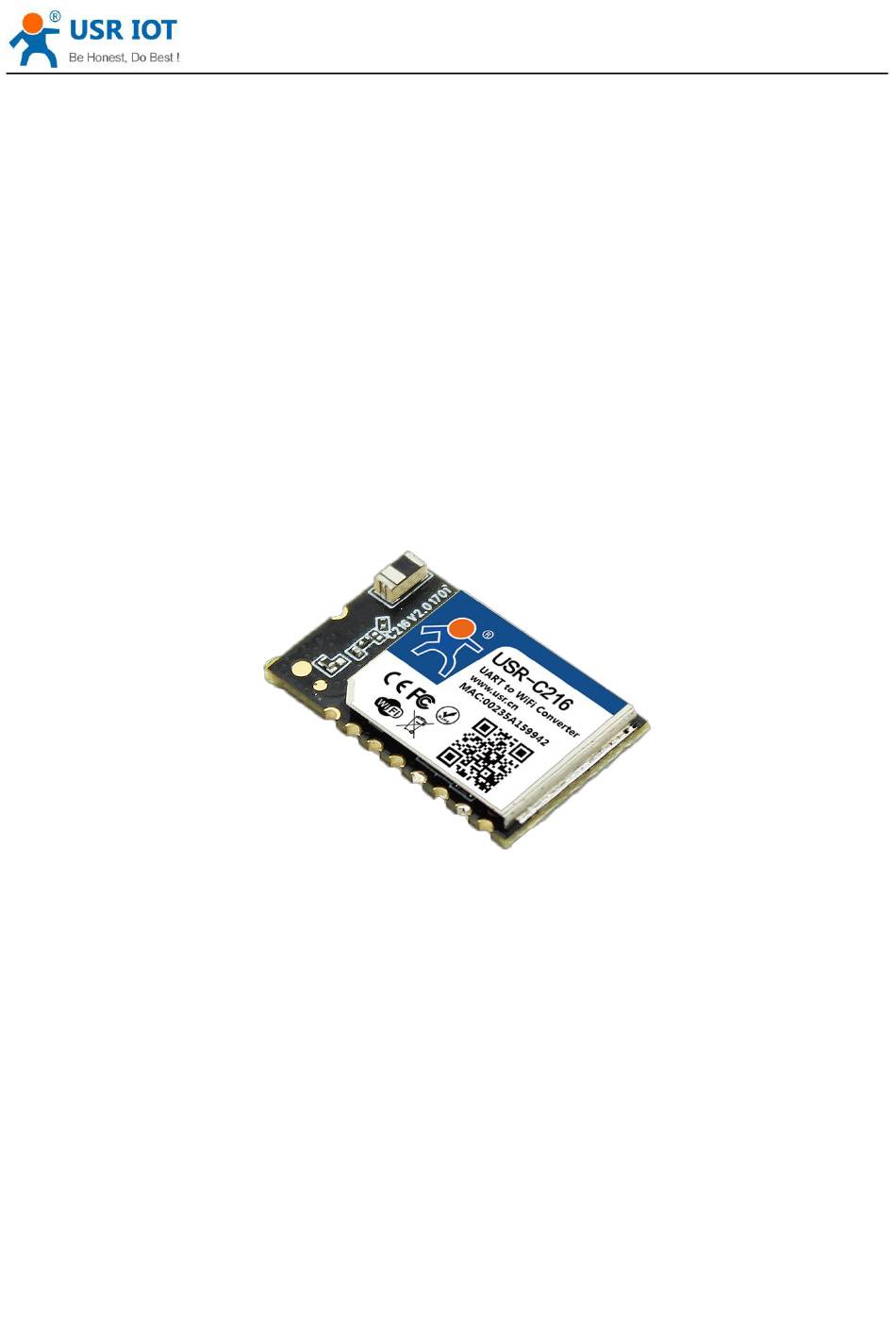

Page 1: Usr-C216 User Manual
USR-C216 User Manual Technical Support: h.usriot.com USR-C216 User Manual File Version: V1.0.0 Jinan USR IOT Technology Limited... -
Page 2: Table Of Contents
Open The Webpage........................24 4.1.2. Wi-Fi Setting..........................25 4.1.3. Transmission Setting.........................26 4.1.4. Extra Function.......................... 27 4.1.5. Firmware Upgrade........................28 4.1.6. Standby Upgrade Page......................28 4.2. AT Command Setting........................29 4.2.1. Error Table..........................30 4.3. AT Commands...........................30 6.Contact Us................................32 Jinan USR IOT Technology Limited... - Page 3 USR-C216 User Manual Technical Support: h.usriot.com 7.Disclaimer................................32 8.Update History..............................32 Jinan USR IOT Technology Limited...
- Page 4 Supporting simple AT commands Support Httpd client function 3.3V single power supply Selection of built-in antenna and external antenna (antenna pad) Ultra-small size: 22.0mm x 13.5mm x 2.7mm, SMT package Jinan USR IOT Technology Limited...
-
Page 5: Get Start
Refer to the subsequent chapters for specific details and instructions. 1.1. Hardware Connection We connect the serial port and network port of the USR-C216 to PC, if PC has no serial port, you can use USB to 232cable. Hardware connection: You just need connect RS232 cable and power to C216 as picture shows. -
Page 6: Data Transmission Test
USR-C216 User Manual Technical Support: h.usriot.com Set the PC DHCP mode, USR-C216 support DHCP server mode, this function is open by default. Figure 2 search SSID 1.3. Data Transmission Test The default parameters: Name Parameters SSID USR-C216 Encryption mode Open, none... -
Page 7: Product Overview
2.Product Overview 2.1. Product Introduction The hardware of USR-C216 is integrated into MAC, basic frequency chip and RF transceiver unit. Built-in low power operation mechanism can effectively realize the low power operation of the module; Support Wi-Fi protocol and TCP/IP protocol, users only need a simple configuration, to achieve the networking function of UART devices. Module size is small, easy to solder in the customer's hardware circuit. -
Page 8: Electrical Parameters
Encapsulation Wireless network type STA/AP/STA+AP mode Security mechanism WEP/WPA-PSK/WPA2-PSK Software parameters Encryption type TKIP/AES Network protocol IPV4, TCP/UDP DHCP/static IP support support Software function Web server support TCP Server，TCP Client，UDP Server， Socket UDP Client Jinan USR IOT Technology Limited www.usriot.com... -
Page 9: Power Supply And Power Consumption
STA mode connect to AP but no data transmission STA mode connect to AP with data transmission(10 K/s) AP mode connect to STA but no data transmission AP mode connect to STA with data transmission(10K/s) 2.4. Appearance Size Unit mm Jinan USR IOT Technology Limited www.usriot.com... - Page 10 Figure 6 pin of C216 Name Signal type Intro GPIO1 GPIO2 GPIO3 GPIO, do not support GPIO4 GPIO, do not support UART0_ TX TX of UART UART0_ RX RX of UART UART0_ CTS of UART Jinan USR IOT Technology Limited www.usriot.com...
- Page 11 Module Wi-Fi Connection Indicator Pin, Low nLink Effective, External LED WPS function pin, do not support 3.3V ground Note: P means power, I means in, o means out, N means not support RFIO Radio Frequency Signal Output Jinan USR IOT Technology Limited www.usriot.com...
-
Page 12: Product Function
3.1. Wireless Distribution Network The USR-C216 serial server can be configured either as a wireless STA or as an AP. So USR-C216 logically supports two wireless interfaces, one as STA, the other as an AP, and the other STA can connect to the wireless network through AP interface of the serial server. -
Page 13: Work As Sta
3.1.3.Work as AP+STA USR-C216 can support one AP interface and one STA interface simultaneously. After opening the AP+STA function, the STA and AP interfaces are available at the same time. The STA interface of the serial server is connected to the router and is connected to the server in the network through TCPB, and the AP interface can be connected by mobile phone / PAD (through TCPA). -
Page 14: Encryption Mode
WIFI, without any parsing, to achieve data transfer between general serial port devices and network devices. In transparent transmission mode, users can fully compatible with the original software platform. Users can basically support wireless data transmission without software modification. Jinan USR IOT Technology Limited www.usriot.com... - Page 15 Set/query socket A auto-connection or not, or disconnect SOCKB Set/query socket B parameters TCPTOB Set/query timeout of socket B TCPLKB Query socket B status TCPDISB Set/query socket B auto-connection or not, or disconnect UART Set/query UART parameters UARTTE Set/query interval Webpage: Jinan USR IOT Technology Limited www.usriot.com...
-
Page 16: At Commands Mode
Figure 12 transparent transmission 3.2.2.AT Commands Mode In AT commands mode, users can query the current state of USR-C216 or set the parameters of USR-C216 by sending AT commands. 3.2.3.HTTPD Client Mode Note: only firmware version 2.0.3 and later can support this function. - Page 17 USR-C216 User Manual Technical Support: h.usriot.com GET mode: Figure 13 http client mode POST mode: Figure 14 GET Jinan USR IOT Technology Limited www.usriot.com...
-
Page 18: Uart Parameters
RFC2217 is a standard protocol for instantly modifying device serial port parameters through Ethernet. This device supports a protocol similar to RFC2217, not standard RFC2217, which implements the same function, but the protocol is simpler. Enable by AT commands: Jinan USR IOT Technology Limited www.usriot.com... -
Page 19: Extra Function
C216 supports search in-LAN. When C216 is connected to a wireless router, users can obtain the IP address of the serial server in C216's current LAN by sending UDP broadcasts to a fixed port to realize device search and communication. It can also directly connect C216's AP to send search instructions. Jinan USR IOT Technology Limited www.usriot.com... - Page 20 Note: Search tools and C216 must be in the same LAN. If multiple STAs are connected to a router, the computer running the search tool is also connected to that router. This search tool can search all the STA. Jinan USR IOT Technology Limited www.usriot.com...
-
Page 21: Tcp/Udp Client Register Function
Query/setting USR-Cloud password 3.4.3.USR-Link When USR-C216 works in AP mode, it opens a UDP port with a port number of 48899 for receiving commands from the Fast Networking Protocol. The mobile phone can be directly connected to the WIFI network of USR-C216, query the list of SSID information and set the router SSID and password through the command of UDP protocol. -
Page 22: Heartbeat Package
NET - Network Server, COM - Serial Device. Setup by AT commands: Figure 20 heartbeat package Query/set enable/disable heartbeat package Command Intro Query/set the type of heartbeat package HEARTEN Query/set heartbeat data HEARTTP Query/set interval of heartbeat package HEARTDT HEARTTM Jinan USR IOT Technology Limited www.usriot.com... -
Page 23: Customize Webpage
C216 and PC should join the same WIFI, or set the PC join the WIFI of C216. Then users can login the webpage of C216. 4.1. Webpage Setting C216 default AP mode. Parameter Default SSID USR-C216 10.10.100.254 Subnet mask 255.255.255.0 Account admin Password admin Jinan USR IOT Technology Limited www.usriot.com... -
Page 24: Open The Webpage
USR-C216 User Manual Technical Support: h.usriot.com 4.1.1.Open The Webpage Make PC join the WIFI of C216, enter 10.10.100.254, the account and password are both admin. Figure 21 webpage configure Jinan USR IOT Technology Limited www.usriot.com... -
Page 25: Wi-Fi Setting
USR-C216 User Manual Technical Support: h.usriot.com 4.1.2.Wi-Fi Setting Users can configure work mode , network SSID , password…etc Figure 21 wifi setting Jinan USR IOT Technology Limited www.usriot.com... -
Page 26: Transmission Setting
USR-C216 User Manual Technical Support: h.usriot.com 4.1.3.Transmission Setting Users can setup baud rate, data bit…etc serial port parameters; choose work mode, and set the socket function. Figure 22 transmission setting Jinan USR IOT Technology Limited www.usriot.com... -
Page 27: Extra Function
USR-C216 User Manual Technical Support: h.usriot.com 4.1.4.Extra Function The heartbeat and register package can be set on this page. Figure 23 extra setting Jinan USR IOT Technology Limited www.usriot.com... -
Page 28: Firmware Upgrade
USR-C216 User Manual Technical Support: h.usriot.com 4.1.5.Firmware Upgrade Figure 24 upgrade firmware 4.1.6.Standby Upgrade Page Enter 10.10.100.254/iweb.html Jinan USR IOT Technology Limited www.usriot.com... -
Page 29: At Command Setting
Illustration: Send +++ and “a” need finish in time: Requirement: T1> packing interval T2,T3<=300ms T5<=3s You can switch from command mode to transparent mode when you enter AT+ENTM and “enter key” in command mode. Jinan USR IOT Technology Limited www.usriot.com... -
Page 30: Error Table
Search AP WSDNS Query/set DNS server address in static configure when C216 work as LANN Setting / querying LAN settings is valid only in AP mode. Setting / querying parameters in WIFI AP mode Jinan USR IOT Technology Limited www.usriot.com... - Page 31 Set display the MAC suffix or not HEARTEN Query/set enable/disable heartbeat packet function HEARTTP Query/set the send type of heartbeat packet Query/set heartbeat packet data HEARTDT Query/set the interval of sending heartbeat packet HEARTTM Query/set Wi-Fi exception handling status MDCH Jinan USR IOT Technology Limited www.usriot.com...
-
Page 32: Contact Us
Tel: 86-531-88826739/86-531-55507297 7.Disclaimer This document provide the information of USR-C216 products, it hasn’t been granted any intellectual property license by forbidding speak or other ways either explicitly or implicitly. Except the duty declared in sales terms and conditions, we don’t take any other responsibilities. We don’t warrant the products sales and use explicitly or implicitly, including particular purpose merchantability and marketability, the tort liability of any other patent right, copyright, intellectual property right.
