USR-K1 User Manual
www.usriot.com

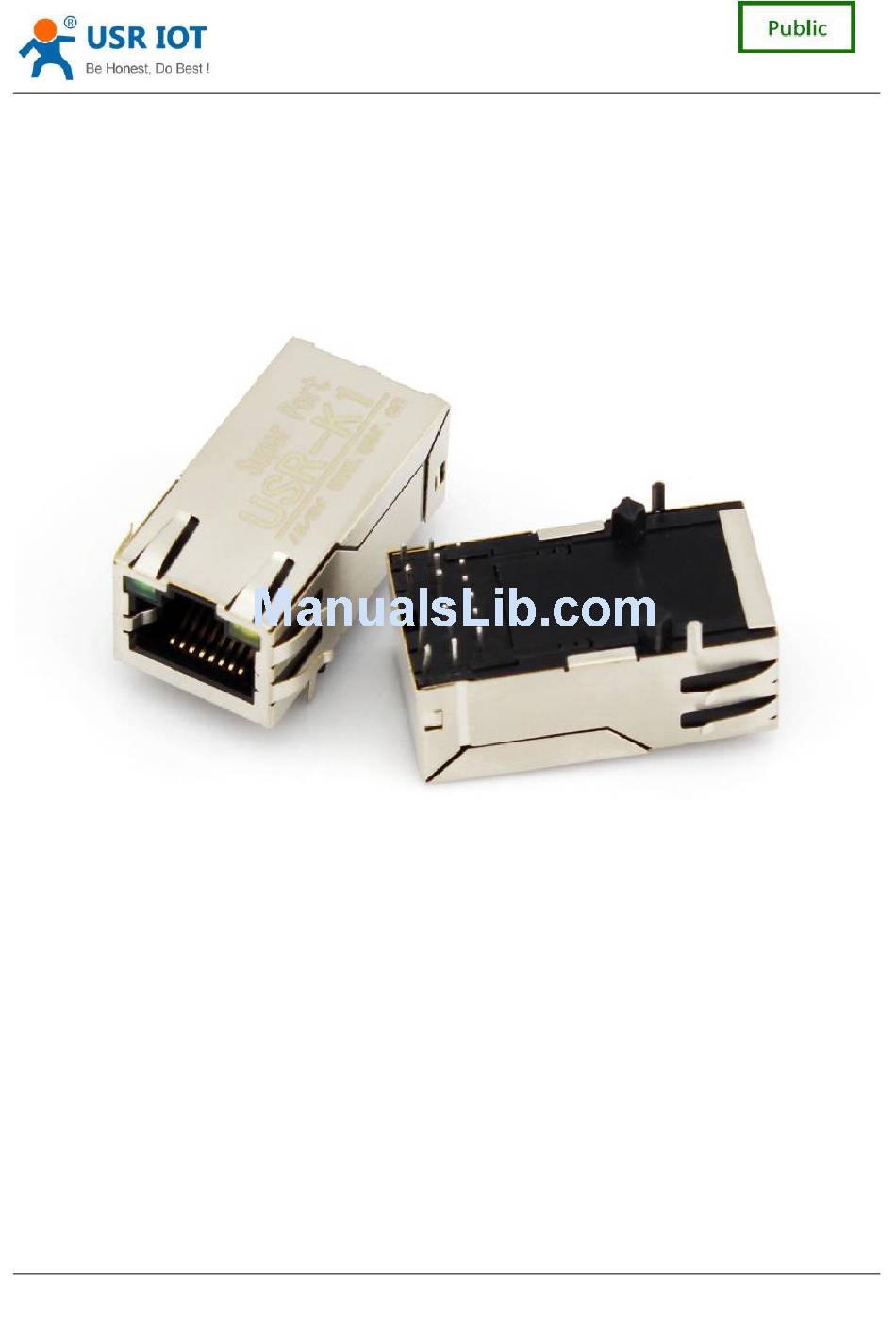

USR-K1 Super Port

File version: V1.0.3
USR-K1 is the high performance-cost version of Super Port .It is an embedded serial networking module,
whose function is to realize bidirectional transparent transmission between UART TTL and Ethernet .The
amazing part of K1 lies in its Ethernet port integration design .You can apply K1 to your products to realize
networking communication .User can directly process data interaction through network and device to realize
remote data acquisition, remote control and management.
K1 is based on the design concept of "Simple,Reliable,Affordable" .And it has the same kernel solution and
parameters as USR-TCP232-T.
Jinan USR IOT Technology Limited
1 / 29
tec@usr.cn

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the USR-K1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for USR IOT USR-K1

Summary of Contents for USR IOT USR-K1

  • Page 1: Usr-K1 Super Port

    USR-K1 Super Port File version: V1.0.3 USR-K1 is the high performance-cost version of Super Port .It is an embedded serial networking module, whose function is to realize bidirectional transparent transmission between UART TTL and Ethernet .The amazing part of K1 lies in its Ethernet port integration design .You can apply K1 to your products to realize networking communication .User can directly process data interaction through network and device to realize...

  • Page 2: Table Of Contents

    USR-K1 User Manual www.usriot.com Content USR-K1 Super Port ..........................1 1．Product Introduction ........................3 1.1 Brief Intro ..........................3 1.2 Function Features ........................3 1.3 Product Characteristics ......................3 1.4 Order Symbol ......................... 4 1.5 Electrical Characteristics ......................4 2. Default Parameter Test ........................5 2.1 Hardware Connection ......................

  • Page 3: Product Introduction

    1．Product Introduction 1.1 Brief Intro USR-K1 is the high performance-cost version of Super Port. It is an embedded serial networking module, whose function is to realize bidirectional transparent transmission between TTL and Ethernet. The amazing part of K1 lies in its Ethernet port integration design .You can apply K1 to your products to realize networking communication .User can directly process data interaction through network and device to realize remote data...

  • Page 4: Order Symbol

    Compact type 1.4 Order Symbol name symbol Description Remarks Super Port USR-K1 Diagram 0-1 order symbol 1.5 Electrical Characteristics Model number Power supply DC current USR-K1 3.3V 185mA(165-195) Diagram 0-2 Electrical Characteristics Jinan USR IOT Technology Limited 4 / 29 tec@usr.cn...

  • Page 5: Default Parameter Test

    FAQ: http://www.usriot.com/Search/getList/keyword/t24/ 2.1 Hardware Connection 1.You can using” USR-TCP232-EVB”. It's easier to test. USR-TCP232-EVB is power for DC 5V@200mA. Diagram 2-1 USR-K1 Connection diagram 3.If you don’t have “USR-TCP232-EVB”,please refer to 5.4 Jinan USR IOT Technology Limited 5 / 29...

  • Page 6: Set-Up Software

    1. Search in LAN (Firstly, ensure the computer IP is static. The module IP is 192.168.0.201by default; Disable firewall, antivirus soft and WIFI). Diagram 2-2 the default parameters 2.Keep default parameter set up your pc. Jinan USR IOT Technology Limited 6 / 29 tec@usr.cn...

  • Page 7: Communication Test

    2. Ensure network protocol, IP address, port number correspond to module parameters. 3. Open COM and the web then connect. They begin transparent transmission after choose the module IP. Parameter Diagram 2-4 USR-TCP232-Test Jinan USR IOT Technology Limited 7 / 29 tec@usr.cn...

  • Page 8: Parameter Setting

    Diagram 2-5 Set via net 2.4.2 Set via COM. 1. Hardware Connection，refer to 2.1 Hardware Connection 2. Connect CFG to GND pin 3. Click ”Read via COM” 4. Setting your Parameter Jinan USR IOT Technology Limited 8 / 29 tec@usr.cn...

  • Page 9: Set Diy

    USR-K1 User Manual www.usriot.com 5. Click ”Read via COM” and check it 6. Switch off CFG. Diagram 2-6 Set via COM 2.4.3 Set DIY By setting protocol, load in http://www.usriot.com/Download/206.html Jinan USR IOT Technology Limited 9 / 29 tec@usr.cn...

  • Page 10: Module Work Mode

    USR-K1 User Manual www.usriot.com 3. Module Work Mode 3.1 Structure Chart structure chart Diagram 3-1 3.2 UDP Mode Diagram 3-2 UDP Mode Jinan USR IOT Technology Limited 10 / 29 tec@usr.cn...

  • Page 11: Tcp Client

    IP module would need to be visible and the visible means directly by module's IP can PING the server IP, server side can be fixed IP, the Internet can also be internal network IP and module in the same local area network. Jinan USR IOT Technology Limited 11 / 29 tec@usr.cn...

  • Page 12: Udp Server Mode

    Note:UDP mode, UDP server mode with a single maximum length of 1472 bytes should be controlled at or below, if greater than this length, the module will automatically restart, the proposed subcontractor sent. Jinan USR IOT Technology Limited 12 / 29...

  • Page 13: Tcp Server Mode

    3.6 Virtual COM Mode Virtual COM means to convent data TCP connected to data of a COM within PC for transparent transmission. Take TCP Client mode for example: Jinan USR IOT Technology Limited 13 / 29 tec@usr.cn...
  • Page 14 USR-K1 User Manual www.usriot.com Loading http://www.usriot.com/Download/31.html 1. Disable firewall and antivirus program 2. Install Virtual COM 3. Setting TCP Server Diagram 3-6 Virtual COM 4. Connect a com Diagram 3-7 Virtual COM Jinan USR IOT Technology Limited 14 / 29 tec@usr.cn...

  • Page 15: Hardware Description

    Net protocol Buffer send： 2K bytes，receive： 1K bytes Network interface 8 pin RJ45 Serial Port Number Interface Standard TTL: pin type 3.3V Data Bits 5，6，7，8 Stop Bit 1，1.5，2 Check Bit None，Even，Odd，Space，Mark Jinan USR IOT Technology Limited 15 / 29 tec@usr.cn...

  • Page 16: Hardware Description

    Operating temperature: -25 to 75 ° C Temperature and Storage temperature: -40 to 80 ° C humidity range Storage humidity: 5% to 95% RH Diagram 4-2 Technical Specifications 4.2 Hardware Description Diagram 4-3 Technical Specifications Jinan USR IOT Technology Limited 16 / 29 tec@usr.cn...

  • Page 17: Hardware To Rj45 Light

    LED2 instructions LED_3. Power 3.3V Network led power LED_3. Power 3.3V Network led power Network connection Connect to 12 LED1 status indicator Diagram 4-3 I/O introduce 4.3 Hardware to RJ45 Light Jinan USR IOT Technology Limited 17 / 29 tec@usr.cn...

  • Page 18: Size

    USR-K1 User Manual www.usriot.com Diagram 4-4 Hardware to RJ45 light 4.4 Size Diagram 4-5 size Jinan USR IOT Technology Limited 18 / 29 tec@usr.cn...

  • Page 19: Expand Functions

    USR-K1 User Manual www.usriot.com 5. Expand Functions Diagram5-1 Expand functions 5.1 RS485 “485_en” for RS485, external enable control pin. Set the software interface: Diagram5-2 RS485 Select it by default Jinan USR IOT Technology Limited 19 / 29 tec@usr.cn...

  • Page 20: Link

    1.Select "Connect" to establish a communication connection, TCP Server-side will receive the corresponding TCP Client-side ID (ID Description: The first four shows for the ID number, the last four digits of the display ID negated to authentication). Jinan USR IOT Technology Limited 20 / 29 tec@usr.cn...
  • Page 21 Diagram5-4 ID Don’t select it by default The figure below shows establish a communication connection ID function, the device through the serial communication interface to the TCP Server-side: Diagram5-5 USR-TCP232-Test ID Jinan USR IOT Technology Limited 21 / 29 tec@usr.cn...

  • Page 22: Index

    4.When link number have exceed maximum, new link requirement will lead to message 46 46. 5.When disconnect, module will send 44 N M, represent current link N is delete, left link M. Jinan USR IOT Technology Limited 22 / 29...

  • Page 23: Rfc2217

    2. TCP Client, TCP Server, UDP Client, UDP Server, UDP broadcast support this function. 3. All changes will work at once, but not save to module, when power off will lose the settings. Set the software interface: Jinan USR IOT Technology Limited 23 / 29 tec@usr.cn...
  • Page 24 Diagram5-10 UART bits setting detail Test bits 55AA5501C2008346 For 115200 N,8,1 55AA550025808328 For 9600 N,8,1 Those two data is not transferred to serial, but the packet not conform will be transferred and revealed. Jinan USR IOT Technology Limited 24 / 29 tec@usr.cn...
  • Page 25 USR-K1 User Manual www.usriot.com Diagram5-11 RFC2217 for test Open this function then open RFC2217 via USR-VCOM so serial port baud rate of PC application software serial server device can be matched automatically. Jinan USR IOT Technology Limited 25 / 29 tec@usr.cn...

  • Page 26: Common Questions

    6. Common Questions 6.1 Work Across Network Segment If your USR-K1 device’s IP is 192.168.0.7, and remote PC’s IP is 192.168.1.7, we need to config. Subnet mask of USR-K1 device, PC, and router to 255.255.0.0, if not, USR-K1 module will not communicate normally.

  • Page 27: Search Device Failure, Port Occupied

    USR-K1 User Manual www.usriot.com 6.4 Search Device Failure, Port Occupied Open more one setup software ,close it. Jinan USR IOT Technology Limited 27 / 29 tec@usr.cn...

  • Page 28: Revison History

    USR-K1 User Manual www.usriot.com 7. Revison history V1.0.1 New V1.0.2 Adding details about RJ45 light V1.0.3 Correct some errors Jinan USR IOT Technology Limited 28 / 29 tec@usr.cn...

  • Page 29: Contact Us

    USR-K1 User Manual www.usriot.com 8. Contact Us Company: Jinan USR IOT Technology Co., Ltd Address: 1-724--728, Huizhan Guoji Cheng, Gaoxin Qu, Jinan, Shandong, China Tel: 86-531-55507297 86-531-88826739-803 Web: http://en.usr.cn Skype: lisausr Email: sales@usr.cn tec@usr.cn Jinan USR IOT Technology Limited 29 / 29...
