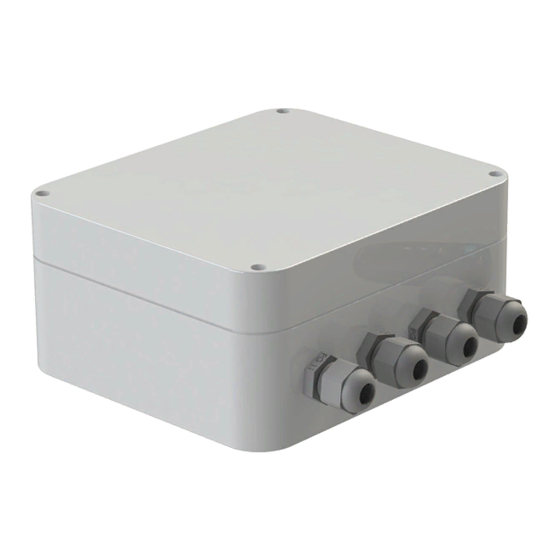

LED pool light Remote Control
with built in transformer
OWNER'S MANUAL
PL-REM-200
Long range DuraLink™ version
lighting
Controls Spectravision Pool Lights
and 2 auxiliary circuits

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PL-REM-200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Spectravision PL-REM-200

Summary of Contents for Spectravision PL-REM-200

  • Page 1 LED pool light Remote Control with built in transformer OWNER’S MANUAL PL-REM-200 Long range DuraLink™ version lighting Controls Spectravision Pool Lights and 2 auxiliary circuits...
  • Page 2 Table of contents Technical specifications Page 3 Box contents Page 4 Installation instructions Page 5 Page 6 Pairing Handheld Transmitter & controller Handheld transmitter functions Page 7 Replacing transmitter battery Page 7 Page 7 Troubleshooting lighting page 2 of 8...

  • Page 3: Technical Specifications

    Technical specifications Electrical specifications Nominal Input voltage 230 VAC 50 Hz Output voltage on Lamp Output 12 VAC Max output current on Lamp Output 16,7 A Max rating Relay Contact A and B Resistive Load 14A 250VAC 14A 30VDC Inductive Load 6A 250VAC 6A 30VDC Transformer VA rating...

  • Page 4: Box Contents

    Box contents 1. PL-REM-200 controller 2. Handheld transmitter (DuraLink™ version) 3. Spare battery (type A23 12V) 4. Screws (4x) & wall plugs (4x) 5. Owners’s manual lighting page 4 of 8...

  • Page 5: Installation Instructions

    Installation instructions • Connect a 230VAC power source to the “220-240VAC INPUT” terminal • Connect the swimming pool lights to the “Lamp 12VAC output” terminal Make sure the total load of pool lights does not exceed 200Watt Optional: The “Switch A” & “switch B” terminals can be used to control auxiliary circuits like a pool cover or garden lights.

  • Page 6: Pairing Handheld Transmitter & Controller

    2. Within 25 seconds, press any button on the handheld transmitter. --> If the transmitter is paired correctly, the LED will flash slowly for 5 times --> If the PL-REM-200 pairing memory is full, the LED will flash 15 times. This means 6 handheld devices have already been paired.

  • Page 7: Handheld Transmitter Functions

    Handheld transmitter functions Toggle the lamps ON/OFF Go to next color scenario Toggle Output A ON/OFF Toggle Output B ON/OFF Replacing transmitter battery • Remove the philips head screw and open the transmitter • Replace the battery, respecting the polarity Battery type: A23 12V Troubleshooting PROBLEM...

  • Page 8: Contact Details

    Contact details Propulsion Systems bvba Dooren 72 1785 Merchtem, Belgium Tel +32 2 461 02 53 Fax +32 2 706 59 60 www.propulsionsystems.be info@propulsionsystems.be lighting We reserve the rights to change all or part of the contents of this document without prior notice...
