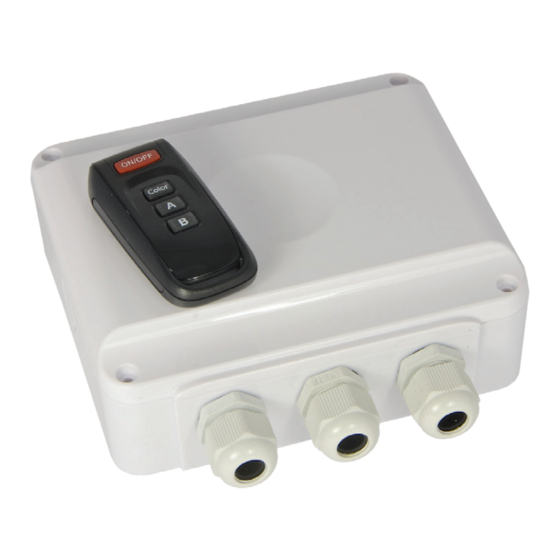

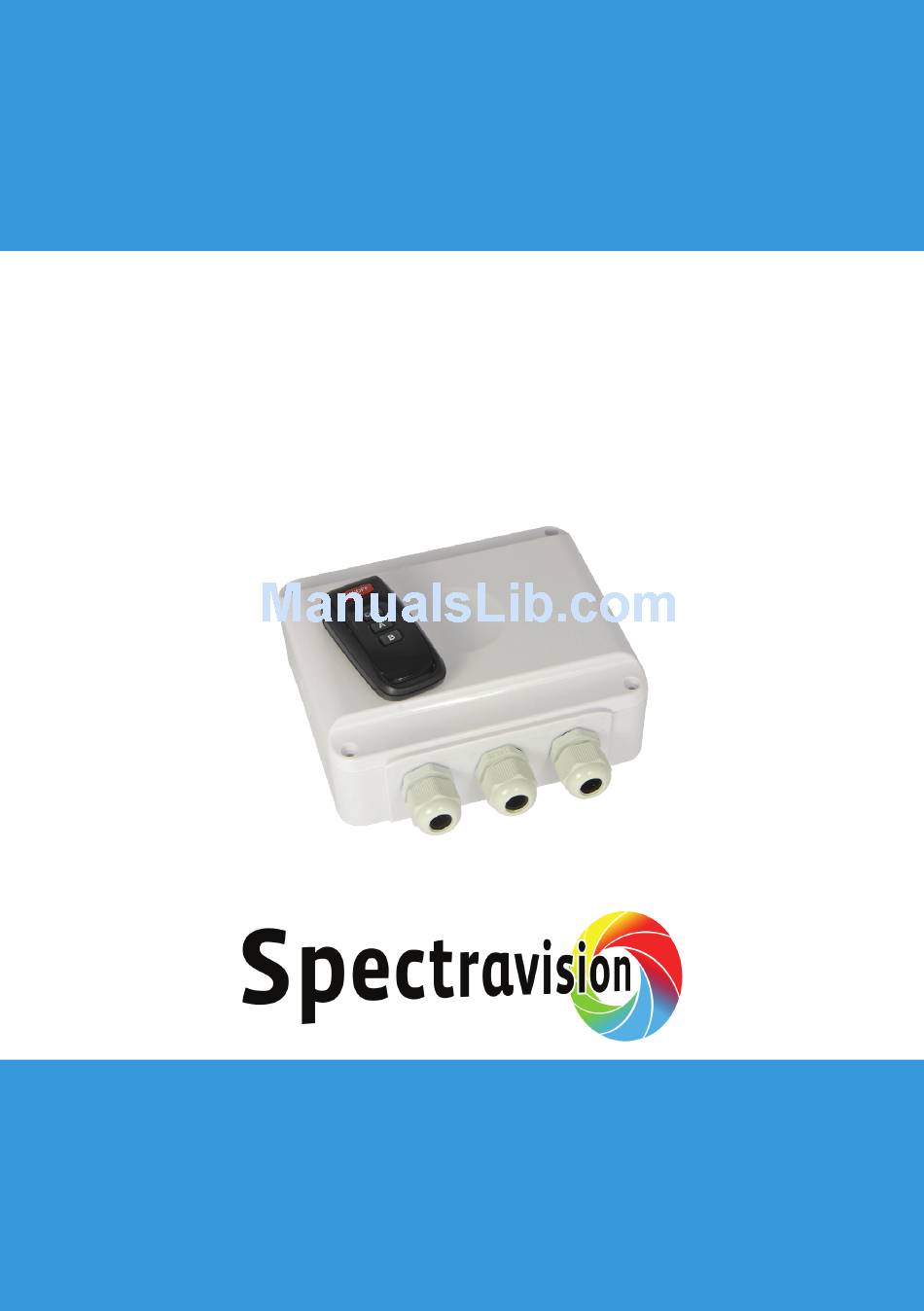

- Page 1 LED pool light Remote Control OWNER’S MANUAL PL-REM-P Long range DuraLink™ version Controls Spectravision Pool Lights and 2 auxiliary circuits...
-
Page 2: Table Of Contents
Table of contents Technical specifications Page 3 Box contents Page 4 Installation instructions Page 5-6 Page 7 Pairing Handheld Transmitter & controller Handheld transmitter functions Page 8 Replacing transmitter battery Page 8 Page 9 Troubleshooting page 2 of 12... -
Page 3: Technical Specifications
Ambient air temperature 0°C ... +40°C Humidity 10% ... 90% RH non condensing Dimensions 150x157x51 mm Weight 500 g Ingress protection rate IP54 For operation only with 12VAC safety isolation transformer to power Spectravision LED Pool Lights ® page 3 of 12... -
Page 4: Box Contents
Box contents 1. PL-REM-P controller 2. Handheld transmitter (DuraLink™ version) 3. Spare battery (type A23 12V) 4. Screws (4x) & wall plugs (4x) 5. Owners’s manual page 4 of 12... -
Page 5: Installation Instructions
• Connect the primary circuit of a 12VAC transformer (sold sepa- rately) in series with the “Color&Light” terminal of the PL-REM-P. Optional: The “Switch A” & “switch B” terminals can be used to control auxiliary circuits like a pool cover or garden lights. - Page 6 • Connect the secondary circuit of a 12VAC transformer (sold sep- arately) in series with the “Color&Light” terminal of the PL-REM-P. Optional: The “Switch A” & “switch B” terminals can be used to control auxiliary circuits like a pool cover or garden lights.
-
Page 7: Pairing Handheld Transmitter & Controller
2. Within 25 seconds, press any button on the handheld transmitter. --> If the transmitter is paired correctly, the LED will flash slowly for 5 times --> If the PL-REM-P pairing memory is full, the LED will flash 15 times. This means 6 handheld devices have already been paired. -
Page 8: Handheld Transmitter Functions
Handheld transmitter functions Toggle the lamps ON/OFF Go to next color scenario Pulse Output A Pulse Output B Replacing transmitter battery • Remove the philips head screw and open the transmitter • Replace the battery, respecting the polarity Battery type: A23 12V page 8 of 12... -
Page 9: Troubleshooting
Troubleshooting PROBLEM SOLUTION The controller doesn’t react • Check the battery of the hand- to transmitter commands held transmitter • The transmitter is not paired- correctly with the controller. Repeat the pairing process • Reduce the distance between handheld transmitter and PL- REM and/or remove obstacles •... -
Page 10: Declaration Of Conformity
3: Specific conditions for Short-Range Devices (SRD) operating on frequencies between 9 kHz and 40 GHz) Equipment: handheld transmitter/receiver for remote control & base unit transmitter / receiver 868MHz band DuraLink™ Trade Mark: SpectraVision™ Model Nr.: Description: PLA-REM (COMMUNICATIONS & REMOTE CONTROL BOX FOR ADAGIO+ RGB DuraLink™) - Page 11 page 11 of 12...
- Page 12 Contact details Propulsion Systems bvba Dooren 72 1785 Merchtem, Belgium Tel +32 2 461 02 53 Fax +32 2 706 59 60 www.propulsionsystems.be info@propulsionsystems.be We reserve the rights to change all or part of the contents of this document without prior notice...
