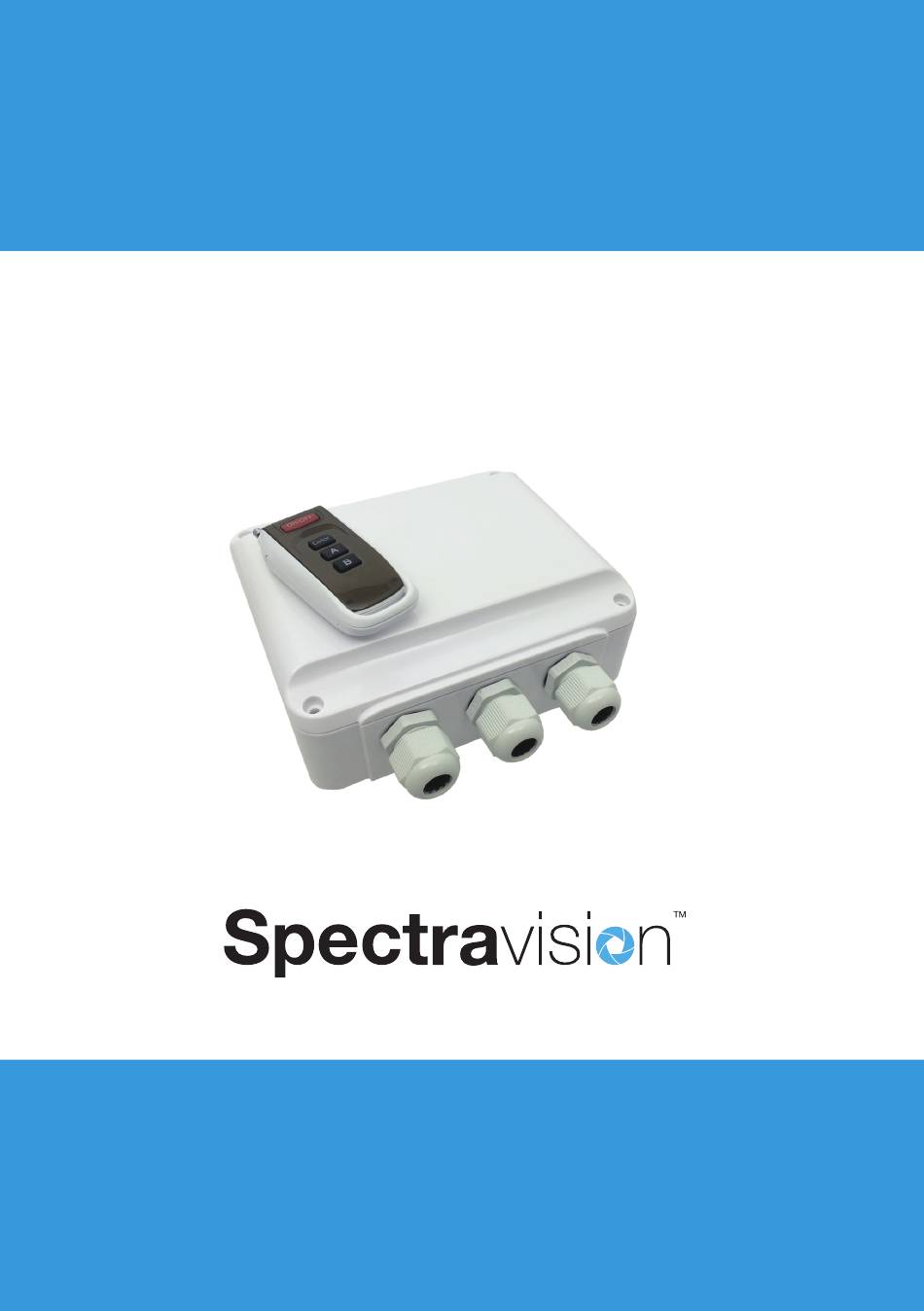

- Page 1 LED pool light Remote Control with built in transformer OWNER’S MANUAL PL-REM-60 lighting Controls Spectravision Pool Lights...
- Page 2 Table of contents Technical specifications Page 3 Box contents Page 4 Installation instructions Page 5 Page 6 Pairing Handheld Transmitter & controller Handheld transmitter functions Page 7 Replacing transmitter battery Page 7 Page 7 Troubleshooting lighting page 2 of 8...
-
Page 3: Technical Specifications
Technical specifications Electrical specifications Nominal Input voltage 230 VAC 50 Hz Output voltage on Lamp Output 12 VAC Max output current on Lamp Output Transformer VA rating 60VA Frequency band transmitter 433 MHz General specifications Controller Ambient air temperature 0°C ... +40°C Humidity 10% ... -
Page 4: Box Contents
Box contents 1. PL-REM-60 controller 2. Handheld transmitter 3. Spare battery 4. Screws (4x) & wall plugs (4x) 5. Owner’s Manual lighting page 4 of 8... -
Page 5: Installation Instructions
Installation instructions • Connect a 230VAC power source to the “220-240VAC INPUT” terminal. • Connect the swimming pool lights to the “Lamp 12VAC output” terminal Make sure the total load of pool lights does not exceed 60Watt 230VAC page 5 of 8... -
Page 6: Pairing Handheld Transmitter & Controller
In case a problem arises, the pairing process can be done as below: Manual Pairing process: Make sure the PL-REM-60 is connected to a power source. 1. Press (and release) the Pairing button on the small circuit board, inside the controller (the button is close to the antenna). -
Page 7: Handheld Transmitter Functions
Handheld transmitter functions Toggle the lamps ON/OFF Go to next color scenario Button A and B have no function with PL-REM-60 Replacing transmitter battery • Remove the philips head screw and open the transmitter • Replace the battery, respecting the polarity... -
Page 8: Contact Details
Contact details Propulsion Systems bvba Dooren 72 1785 Merchtem, Belgium Tel +32 2 461 02 53 Fax +32 2 706 59 60 www.propulsionsystems.be info@propulsionsystems.be lighting We reserve the rights to change all or part of the contents of this document without prior notice...
