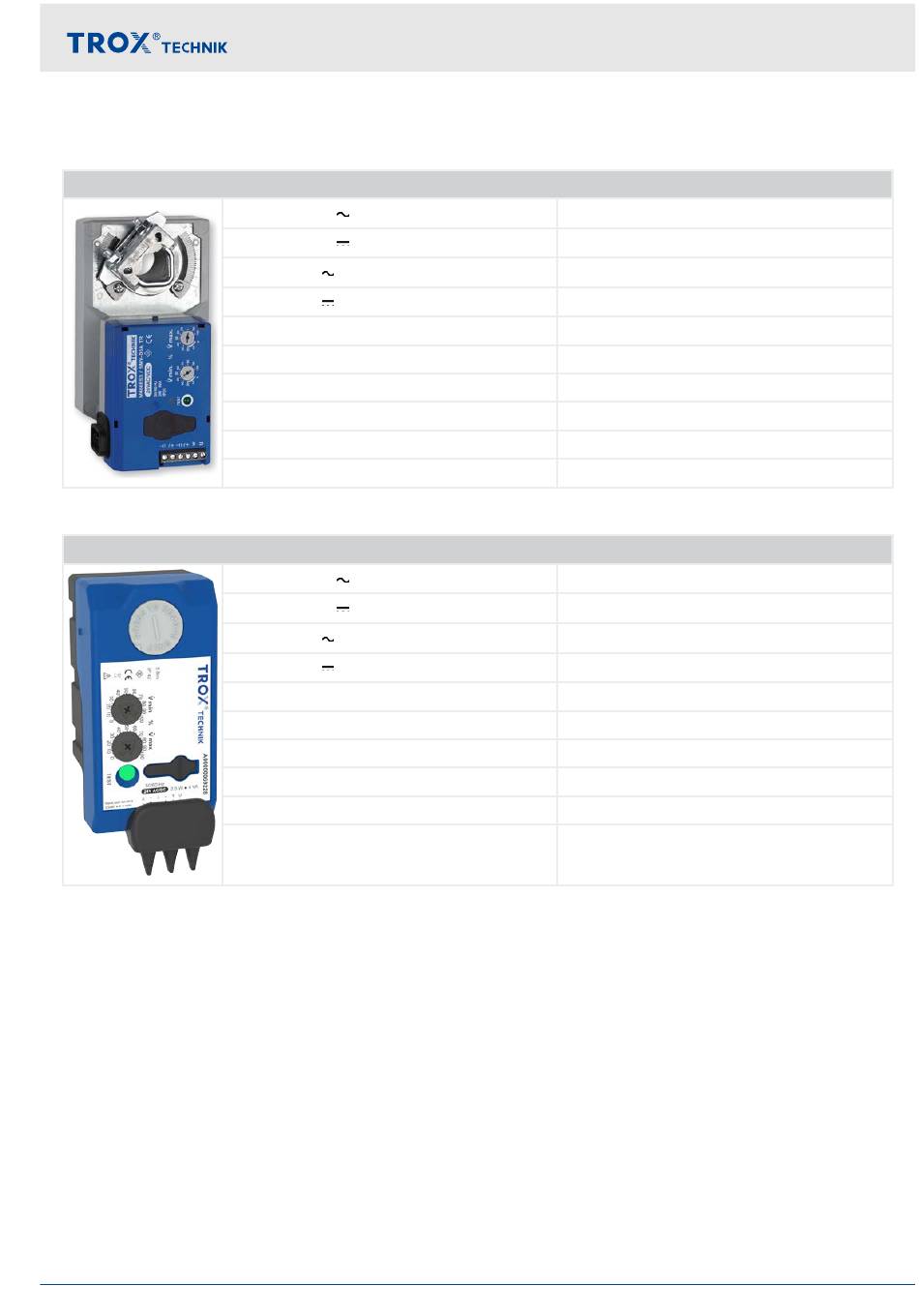

Trox Control component Easy Installation And Commissioning Instructions page 33

Easy controller SMV-D3A
Supply voltage
Supply voltage
Power rating
Power rating
Running time for 90°
Setpoint value signal input
Actual value signal output
IEC protection class
Protection level
EC conformity
Easy controller TROVE-024T-05I-DD15
Supply voltage
Supply voltage
Power rating
Power rating
Running time for 90°
Setpoint value signal input
Actual value signal output
IEC protection class
Protection level
EC conformity
Control component Easy for VAV terminal units
Technical data
24 V AC ± 20%, 50/60 Hz
24 V DC −10/+20%
6 VA max.
Max. 3 W
110 – 150 s
0 – 10 V DC, Ra > 100 kΩ
0 – 10 V DC, max. 0,5 mA
III (protective extra-low voltage)
IP 20
EMC to 2014/30/EU
24 V AC ± 20%, 50/60 Hz
24 V DC −10/+20%
4 VA max.
Max. 2,5 W
100 s
0 – 10 V DC, Ra > 100 kΩ
0 – 10 V DC, max. 0,5 mA
III (protective extra-low voltage)
IP 42
EMC to 2014/30/EU
33
