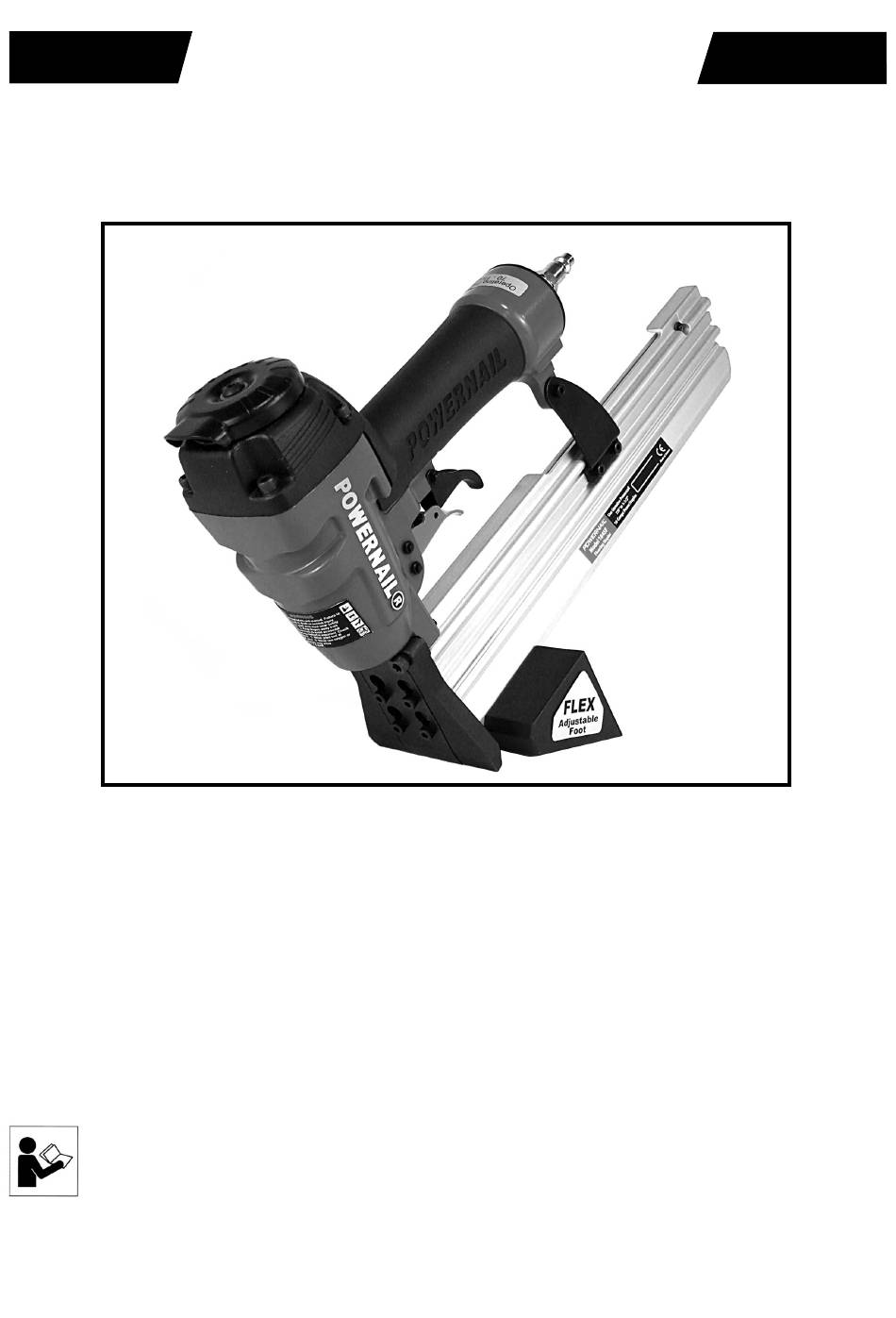

Model 1845F Pneumatic PowerStapler™
OPERATION AND MAINTENANCE MANUAL
MANUAL DE OPERACION Y DE MANTENIMIENTO
MANUEL D'INSTRUCTIONS ET D'ENTRETIEN
WARNING
Read this manual before you use this Powerstapler®. Follow all safety warnings and
instructions. If you are uncertain about the operation of the stapler, call us directly
at 1-800-323-1653 for assistance or contact the closest Powernail Dealer for help.
Please retain this information for future reference.
REV 19.01.24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PowerStapler 1845F and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Powernail PowerStapler 1845F

Summary of Contents for Powernail PowerStapler 1845F

  • Page 1 Read this manual before you use this Powerstapler®. Follow all safety warnings and instructions. If you are uncertain about the operation of the stapler, call us directly at 1-800-323-1653 for assistance or contact the closest Powernail Dealer for help. Please retain this information for future reference.

  • Page 2: Table Of Contents

    POWERNAIL will repair or replace, at its option, any Model 1845F POWERSTAPLER that does not conform to this warranty. Claims must be made no later than fi fteen (15) days after the end of the warranty period. POWERNAIL will perform all repair or replacements itself or through its authorized distributors.
  • Page 3 Excess air pressure can cause the stapler to explode. Do not continue to use a tool that leaks air or does not function properly. Notify your nearest Powernail representative if your tool continues to experience functional problems.

  • Page 4: Operating The Tool

    OPERATION The Model 1845F fastens down fl ooring from The Model 1845F 5/16” to 1/2” using the Powernail FLEX adjustable installs tongue and foot assembly that can be adjusted to fi t different groove fl ooring fl ooring profi les.

  • Page 5: Flex Foot Adjustment

    ***If your Flex Foot needs to be loosened, reverse the process listed above. 1.c) 2.) If you are experiencing trouble in making this adjustment please visit www.powernail.com/f-series- adjustment to view a helpful demonstration video. 1.e) 1.f) 1.g) 1.d)

  • Page 6: Air Supply

    OPERATION, continued... CONNECTING THE TOOL TO AN AIR SUPPLY Your air tool is fully assembled when you receive it. Before using it, attach the air line and desired air system accessories. Be sure the air hose is depressurized when installing or removing adapters to the air line.

  • Page 7: Safety Labels

    5. Never point tool at yourself or others in work area. 6. Never use oxygen or other bottled gasses. Explosion may occur. 7. Do not exceed 110 PSI / 7.5 BAR. Use Genuine Powernail 7/8” to 1-1/2” Model 1845F 18 Gauge PowerStaples...

  • Page 8: Clearing A Jam

    CLEARING A JAM Disassembly: (See pictures below) 1) Loosen the 4 M4 screws (35) with a 3mm allen wrench. 2) Slide the gate plate down until it is free from the nose.. 3) Lift the gate plate (36) off. 4) Inspect and clear any debris from the drive blade (13A) and its path. Reassembly: 1) Install the the gate plate (36) over the four M4 screws (35).

  • Page 9: Troubleshooting Chart

    TROUBLE SHOOTING CHART Here are some common issues that may occur during use. If the stapler is not working as it should, stop using the tool immediately and resolve the issue before continuing. PROBLEM POSSIBLE CAUSE SOLUTION 1. O-ring (32) in trigger valve is damaged. 1.

  • Page 10: Schematic / Parts List

    MODEL 1845F PARTS LIST ITEM Description Avail. PART # ITEM Description Avail. PART # Um.hd.bolt 09-18F001 Hex.soc.hd.bolt 09-18F035 Flat Washer 09-18F002 Driver Guide Cover 09-18F036 Exhaust Cover, Metal 09-18F003 Hex.soc.hd.bolt 09-18F037 Seal 09-18F004 Hex.soc.hd.bolt+Sw 09-18F005 Flat. Hd.bolt 09-18F038 Nose 09-18F039 09-18F006 Anchor 09-18F040...
  • Page 11 MODEL 1845F SCHEMATIC...

  • Page 12: Nail Depth Chart

    1¼” Part #: PS-18087 (5,000 CT.) 1” Part #: PS-18125 (5,000 CT.) 1½” Part #: PS-18100 (5,000 CT.) Part #: PS-18150 ©Powernail Company 2016 POWERNAIL COMPANY, INC. 1300 Rose Road, Lake Zurich, IL 60047 US Phone: 1-800-323-1653 or 847-847-3000 www.powernail.com...
