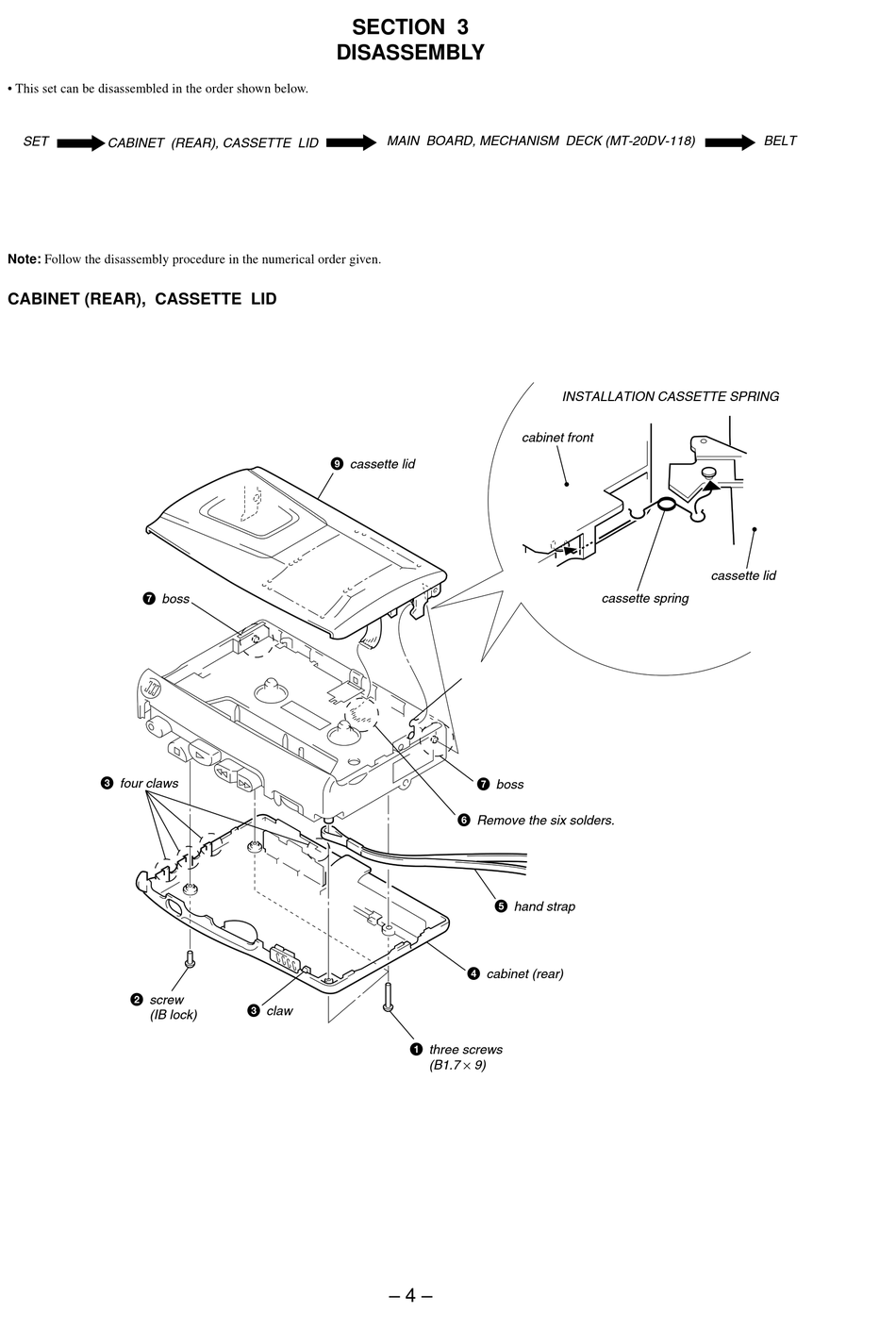

SECTION 3
DISASSEMBLY
• This set can be disassembled in the order shown below.
MAIN BOARD, MECHANISM DECK (MT-20DV-118)
BELT
SET
CABINET (REAR), CASSETTE LID
Note: Follow the disassembly procedure in the numerical order given.
CABINET (REAR), CASSETTE LID
INSTALLATION CASSETTE SPRING
cabinet front
9 cassette lid
cassette lid
cassette spring
7 boss
3 four claws
7 boss
6 Remove the six solders.
5 hand strap
4 cabinet (rear)
2 screw
3 claw
(IB lock)
1 three screws
(B1.7
9)
– 4 –
