Aztech WIPC302 User Manual

Wireless n ip camera
Hide thumbs Also See for WIPC302:
Table of Contents

Advertisement

Quick Links

See also: Quick Manual
All manuals and user guides at all-guides.com
WIPC302
WIPC302
WIPC302
WIPC302
Wireless N IP Camera

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WIPC302 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aztech WIPC302

Summary of Contents for Aztech WIPC302

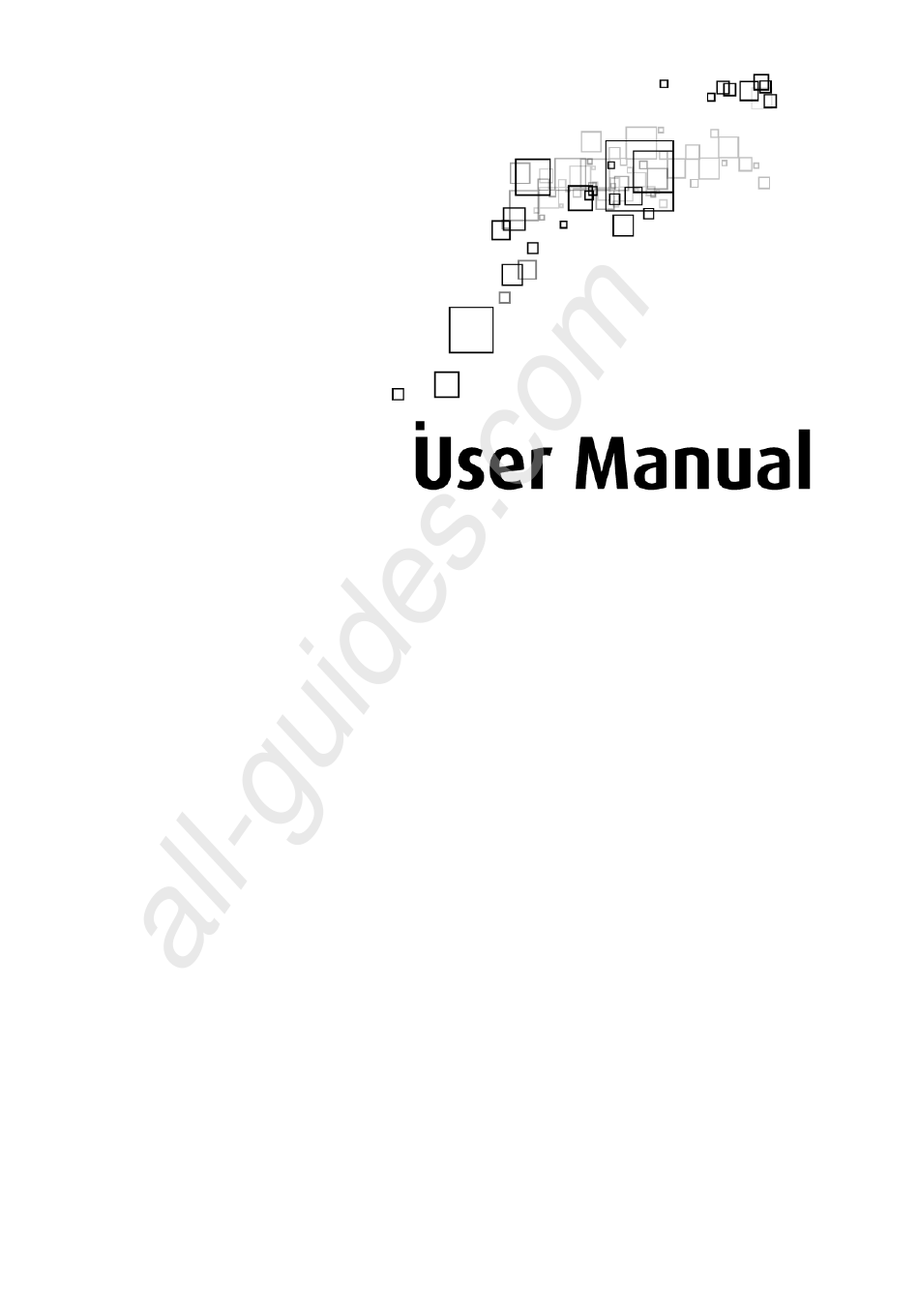

  • Page 1 All manuals and user guides at all-guides.com WIPC302 WIPC302 WIPC302 WIPC302 Wireless N IP Camera...
  • Page 2 All manuals and user guides at all-guides.com User Manual © Copyright 2011 All rights reserved. Ver 1.0 No part of this document may be reproduced, republished, or retransmitted in any form or by any means whatsoever, whether electronically or mechanically, including, but not limited to, by way of photocopying, recording, information recording, or through retrieval systems without the express written permission.

  • Page 3: Table Of Contents

    All manuals and user guides at all-guides.com User Manual Table of Contents About the Device ..........................4 Requirements ........................ 5 Package Contents ......................5 Device Design ........................ 6 Getting Started ..........................8 Planning Your Network ....................9 Remove or Disable Conflicts ..................10 Internet Sharing, Proxy, and Security Applications ..........

  • Page 4: About The Device

    All manuals and user guides at all-guides.com User Manual About the Device Aztech WIPC302 is a Wireless N lite IP Camera that supports 802.11 b/g/n targeted at providing good video quality to the end users via wired and wireless connection. Wireless supports WEP/WPA /WPA2 encryption.

  • Page 5: Requirements

    233MHz processor Ethernet network adapter Package Contents Package contents are listed below. For any missing items, please contact your dealer immediately. Product contents vary for different models. WIPC302 Ethernet cable Camera Stand 5V 2.0A DC Power Adapter Easy Start Guide...

  • Page 6: Device Design

    All manuals and user guides at all-guides.com User Manual Device Design Label Label Label Label Description Description Description Description Ethernet Port Connect to your Modem/Router using an Ethernet cable. Power Jack Connect the 5v 1.5A Power adapter. Camera Lens CMOS sensor with fixed focus LENS. Infrared LED Automatically activates for night vision.
  • Page 7 All manuals and user guides at all-guides.com User Manual Label Label Description Description Label Label Description Description Audio out Connect to your external speaker. Press for 10 seconds or wait until the Network LED to Reset stop blinking. Page 7 of 51...

  • Page 8: Getting Started

    All manuals and user guides at all-guides.com User Manual Getting Started Setting up the device is easy. The flowchart below provides an outline of the steps needed to complete the installation. Brief descriptions appear beside each step. Detailed instructions are provided in the subsequent pages. Plan your Network Remove/Disable You may need to check some...

  • Page 9: Planning Your Network

    All manuals and user guides at all-guides.com User Manual Planning Your Network Before moving ahead to setup your network, it is a good idea to draw out a network diagram to help identify your network devices and plan out how to connect these devices.

  • Page 10: Remove Or Disable Conflicts

    All manuals and user guides at all-guides.com User Manual Remove or Disable Conflicts To make sure the router installation moves on smoothly, you need to remove or disable conflicts that may interfere the installation. Probable conflicts may include: Internet sharing applications Proxy software Security software TCP/IP settings...

  • Page 11: Configuring Tcp/Ip Settings

    All manuals and user guides at all-guides.com User Manual Configuring TCP/IP Settings Configuring TCP/IP Settings Configuring TCP/IP Settings Configuring TCP/IP Settings Check if your computer uses the default TCP/IP settings. To check the TCP/IP properties: 1. Select Start > Run. This opens the Run dialog box. 2.

  • Page 12: Removing Temporary Internet Files

    All manuals and user guides at all-guides.com User Manual Removing Temporary Internet Files Removing Temporary Internet Files Removing Temporary Internet Files Removing Temporary Internet Files Temporary Internet files are files from Web sites that are stored in your computer. Delete these files to clean the cache and remove footprints left by the Web pages you visited.

  • Page 13: Setup The Device

    2. Make user that your Modem/Router's Internet connection is UP to allow you to access your IP camera via the Internet. 3. Connect the Power Adapter to your Aztech WIPC302 and plug it into the power outlet then switch it ON.

  • Page 14: Installing The Utility

    All manuals and user guides at all-guides.com User Manual Installing the Utility WIPC302 Utility is a software application that allows you to configure your IP Camera. Requirements Your computer must meet the following minimum requirements. Any operating system can be used...
  • Page 15 OK For Mac OSX 1. Insert the WIPC302 Resource CD into the CD-ROM drive. 2. Click the Start button on your computer, and then select My Computer. 3. Right click on the D drive (where D: is your CD-ROM drive) then select Explore.
  • Page 16 All manuals and user guides at all-guides.com User Manual 5. Open the MAC Search Tool folder then double click IP Camera tool 6. This will launch the IP Camera tool; ensure that your IP camera and PC are connected to the same router. 7.

  • Page 17: About The Web User Interface

    All manuals and user guides at all-guides.com User Manual About the Web User Interface User has two options in accessing the Web User Interface, use the utility or set a static IP address on your computer to launch the Web User Interface to configure the IP camera’s settings.

  • Page 18: Home

    All manuals and user guides at all-guides.com User Manual Home Home Home Home 1. For first time use click Download and install Player to view the Video smoothly. 2. DVM_IPCam2.exe Message will pop up click Run to install application. Page 18 of 51...

  • Page 19: Quick Setup

    All manuals and user guides at all-guides.com User Manual 3. Right click on the pop-up message and select Run Add-on 4. DVM_IPCam2 ActiveX Control Module message will appear then click Run. Quick Setup Quick Setup Quick Setup Quick Setup Quick Setup will allow user configure the basic settings of the device to be connected to the Internet.
  • Page 20 All manuals and user guides at all-guides.com User Manual Date and Time Settings Date and Time Settings Date and Time Settings Date and Time Settings • Select the Timezone that you would like to set on your IP camera. Network Network Network Network Settings...

  • Page 21: View

    All manuals and user guides at all-guides.com User Manual View View View View This section allows user to monitor and capture live videos. 1 1 1 1 2 2 2 2 Play Play Play Play • Press this to start Live Video. Stop Stop Stop...
  • Page 22 All manuals and user guides at all-guides.com User Manual • Press this to disable Microphone Recording Recording Recording Recording • Press this to enable Recording. • Press this to disable and stop Recording. Snapshot Snapshot Snapshot Snapshot • Press this to capture a snapshot of the live video. Device Device Device...

  • Page 23: Network

    All manuals and user guides at all-guides.com User Manual Network Network Network Network This section allows user to configure Network and Port number settings. Network Settings Network Settings Network Settings Network Settings DHCP/Static • By default your IP camera is set to DHCP wherein it will automatically get an IP address from the DHCP server.
  • Page 24 All manuals and user guides at all-guides.com User Manual Port Number • Input the port number that you would like to use for the IP camera (It is recommended to use the default port number as some router is using port 80). Note Note: Note...
  • Page 25 All manuals and user guides at all-guides.com User Manual UPnP UPnP UPnP UPnP Settings Settings Settings Settings • Enable UPnP – tick the box then click Submit to enable UPnP. DDNS DDNS DDNS DDNS Settings Settings Settings Settings This section allows user to configure the DDNS account. User may choose from Manufacturer’s DDNS or Third Party DDNS.
  • Page 26 All manuals and user guides at all-guides.com User Manual • Use the Manufacturer’s DDNS if you don’t have an active Third Party DDNS account. • Note Note Note Note: It is required to configure Port Forwarding on your router for you to access the IP camera via Internet. •...
  • Page 27 All manuals and user guides at all-guides.com User Manual MSN Config MSN Config MSN Config MSN Config This section allows the IP camera to send its WAN IP address to the MSN friend List. • Input the 1 MSN account under User which will serve as your IP camera’s email address.

  • Page 28: Alarm

    All manuals and user guides at all-guides.com User Manual Alarm Alarm Alarm Alarm Alarm Settings Alarm Settings Alarm Settings Alarm Settings Page 28 of 51...
  • Page 29 All manuals and user guides at all-guides.com User Manual Alarm Detect Alarm Detect enables IP camera to monitor any motion and triggers the alarm. • Motion Detect Armed – Enables motions detection. • Motion Detect Sensibility allows user to set motion sensitivity, highest value has the higher sensitivity.
  • Page 30 All manuals and user guides at all-guides.com User Manual Email Email Email Email This section allows user to configure the email address for the IP camera to send alarm notice. 1. Sender – input the IP camera’s email address on the required field. 2.
  • Page 31 All manuals and user guides at all-guides.com User Manual This section allows user to automatically upload snapshot on the FTP server. 1. FTP Server – input the ftp server’s WAN IP address on the required field. 2. FTP Port number – input the FTP server’s port number on the required field. 3.

  • Page 32: Advanced

    All manuals and user guides at all-guides.com User Manual Alarm Server Alarm Server Alarm Server Alarm Server 1. Server Address – input the Server’s WAN IP address on the required field. 2. Server Port – input the Server’s Port number on the required field. 3.
  • Page 33 All manuals and user guides at all-guides.com User Manual • Administrator – user under this account will have a full access on the device. • Operator – user under this account will only be allowed to change Fps, Resolution, video mode, view, record, talk, hear and capture snapshot of the video •...

  • Page 34: Management

    All manuals and user guides at all-guides.com User Manual • Device List in LAN displays the entire available IP camera that is connected to your network. Click Refresh update the list of available IP camera. Adding another IP camera on the list allows user to view multiple videos. 1.
  • Page 35 All manuals and user guides at all-guides.com User Manual Device Name Device Name Device Name Device Name • Device Name – allows user to set a name of the IP camera to easily distinguish which device you are viewing. 1. Input the name that you would like to set on the IP camera on the required field. 2.
  • Page 36 All manuals and user guides at all-guides.com User Manual Firmware Upgrade Firmware Upgrade Firmware Upgrade Firmware Upgrade This section allows user to change the current firmware and WEB UI version of the IP camera 1. Click Browse to then select the folder path of the Firmware file. 2.
  • Page 37 All manuals and user guides at all-guides.com User Manual This section allows user to view the log files of the IP camera. Page 37 of 51...

  • Page 38: Multiple Device Monitoring System

    2. Click the Start button on your computer, and then select My Computer. 3. Right click on the D drive (where D: is your CD-ROM drive) then select Explore. 4. Double click on WIPC302 Multiple Device Monitoring System.exe to launch the Setup WIPC302_en.
  • Page 39 All manuals and user guides at all-guides.com User Manual 6. Click Next to continue with the installation or click Browse (optional) to change the folder path and save the WIPC302_en file. 7. Click Next to continue with the installation or click Browse (optional) if you want to change the folder path to save the file.
  • Page 40 All manuals and user guides at all-guides.com User Manual 9. Summary page will be displayed click Install to proceed with the installation. 10. Tick Launch then click Finish to complete installation and launch the Multiple Device Monitoring System. Page 40 of 51...

  • Page 41: Multiple Device Monitoring System Web Ui

    All manuals and user guides at all-guides.com User Manual Multiple Device Monitoring System WEB Page 41 of 51...
  • Page 42 All manuals and user guides at all-guides.com User Manual System Settings System Settings System Settings System Settings • Reconnect Settings- it allows utility to reconnect to the device. 0 = utility will always attempt to connect to the device. Alarm action settings •...
  • Page 43 All manuals and user guides at all-guides.com User Manual History History History History This section allows user to play recorded videos files. Devices Management Devices Management Devices Management Devices Management Page 43 of 51...
  • Page 44 All manuals and user guides at all-guides.com User Manual Adding a device • - click this icon to add an IP camera to be monitored. • Input the IP camera’s information on the required field then click Save for the settings to take effect.
  • Page 45 All manuals and user guides at all-guides.com User Manual • Record scheduling allows user to set the start and end time for the IP camera to record videos. Search and add Devices • - click this icon to search and add more devices. •...
  • Page 46 All manuals and user guides at all-guides.com User Manual • This icon will be displayed shown on the right side of a device, in case alarm is enabled. • This icon will be displayed on the right side of a device, in case video recording is scheduled.

  • Page 47: Frequently Asked Questions

    All manuals and user guides at all-guides.com User Manual Frequently Asked Questions 1. 1. 1. 1. Why I can’t access my IP camera when using DDNS? Why I can’t access my IP camera when using DDNS? Why I can’t access my IP camera when using DDNS? Why I can’t access my IP camera when using DDNS? Ensure that the IP camera’s IP address and Port number is configured properly on the router.
  • Page 48 All manuals and user guides at all-guides.com User Manual 5. On the Rule Name box input the IP camera’s name. 6. On the IP address box input the IP camera’s IP address 7. On the Port Range input 8081. 8. Under Protocol set TCP&UDP then click Add rule for the settings to take effect.
  • Page 49 All manuals and user guides at all-guides.com User Manual 2. Input your IP camera’s Manufacturer’s DDNS or input your personal DDNS hostname on the address bar. For Third Party DDNS it is required to include the IP camera’s port number when accessing the video example: http://myhostname.dyndns.org:8081.
  • Page 50 All manuals and user guides at all-guides.com User Manual 4. This will launch WIPC302 IP camera’s Home page click Sign in for Mobile to access live video. 7. 7. 7. 7. How do I access my IP camera on How do I access my IP camera on...
  • Page 51 All manuals and user guides at all-guides.com User Manual 2. This will launch the authentication page, input the username and password that you set on the IP camera then click OK. 3. This will launch the IP camera’s Home Page click Sign in to access the live video.
