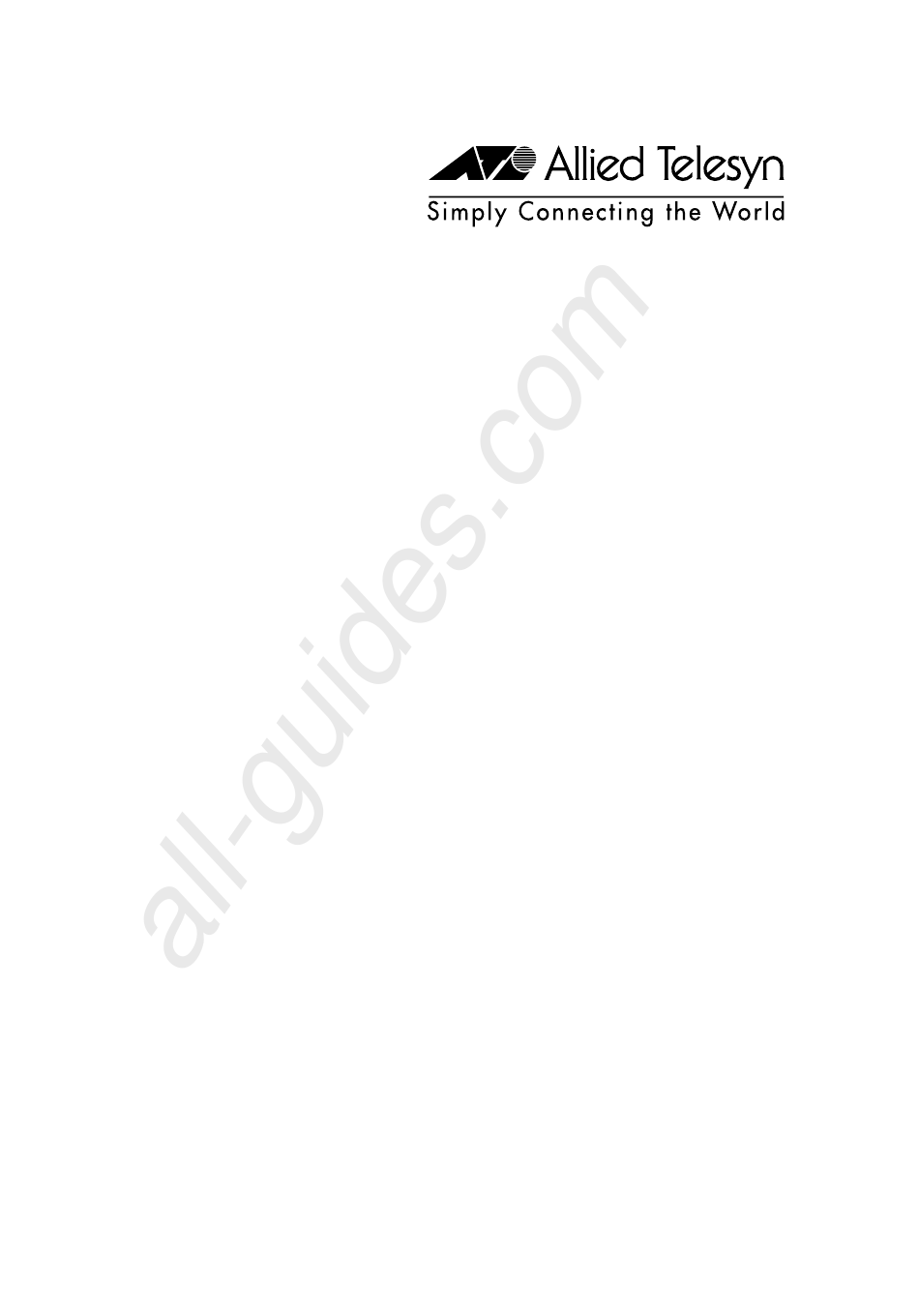

  • Page 1 All manuals and user guides at all-guides.com AT-8216FXL/MT AT-8216FXL/VF AT-8216FXL/SC AT-8224XL AT-8288XL/MT AT-8288XL/SC Fast Ethernet Switches Quick Install Guide PN 613-10810-00 Rev C...
  • Page 2 All manuals and user guides at all-guides.com Copyright  2000 Allied Telesyn International, Corp. 960 Stewart Drive Suite B, Sunnyvale CA 94086, USA All rights reserved. No part of this publication may be reproduced without prior written permission from Allied Telesyn International, Corp. Ethernet is a registered trademark of Xerox Corporation.

  • Page 3: Electrical Safety And Emission Compliance Statement

    All manuals and user guides at all-guides.com Electrical Safety and Emission Compliance Statement Standards: This product meets the following standards. U.S. Federal Communications Commission RADIATED ENERGY Note: This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of FCC Rules.
  • Page 4 All manuals and user guides at all-guides.com...

  • Page 5: Table Of Contents

    All manuals and user guides at all-guides.com Table of Contents Electrical Safety and Emission Compliance Statement ......iii Welcome to Allied Telesyn ................. vii Where to Find Web-based Guides ..............vii Document Conventions ................... viii Contacting Allied Telesyn ................viii Online Support ..................viii Telephone and Fax Support..............
  • Page 6 All manuals and user guides at all-guides.com...

  • Page 7: Welcome To Allied Telesyn

    All manuals and user guides at all-guides.com Welcome to Allied Telesyn This guide contains instructions on how to install AT-8216FXL, AT-8224XL, and AT-8288XL Series Fast Ethernet Switches. Where to Find Web-based Guides The Allied Telesyn web site at www.alliedtelesyn.com provides you with an easy way to access the most recent documentation and technical information for all of our products.

  • Page 8: Document Conventions

    All manuals and user guides at all-guides.com Document Conventions This guide uses several conventions that you should become familiar with first before you begin to install the product. Note A note provides additional information. Caution A caution indicates that performing or omitting a specific action may result in equipment damage or loss of data.

  • Page 9: E-Mail Support

    All manuals and user guides at all-guides.com AT-8216FXL, AT-8224XL, and AT-8288XL Series Quick Install Guide Australia Japan Tel: 1 (800) 000-880 Tel: (+81) 3-3443-5640 Fax: (+61) 2-9438-4966 Fax: (+81) 3-3443-2443 France United Kingdom France, Belgium, Luxembourg, United Kingdom, Denmark, Norway, The Netherlands, Middle East, Africa Sweden, Finland Tel:...

  • Page 10: Ftp Server

    All manuals and user guides at all-guides.com FTP Server If you know the name of a specific device driver that you need for an Allied Telesyn device, you can download the driver by connecting directly to our FTP server at ftp://gateway.centre.com. At login, enter ‘anonymous’.

  • Page 11: At-8216Fxl, At-8224Xl, And At-8288Xl Series Fast Ethernet Switches

    All manuals and user guides at all-guides.com AT-8216FXL, AT-8224XL, and AT-8288XL Series Fast Ethernet Switches The AT-8216FXL, AT-8224XL, and AT-8288XL Series Fast Ethernet Switches provide the following features: " Ethernet, Fast Ethernet, and Gigabit Ethernet connectivity " A small 1.5U high, 19-inch rackmountable enclosure "...

  • Page 12: Installing The Switch

    All manuals and user guides at all-guides.com Installing the Switch The following sections explain how to install the Fast Ethernet switch in your network. Note For information on site requirements, cabling specifications, and network topologies, refer to the AT-8216FXL/MT, AT-8216FXL/VF, AT-8216FXL/SC, AT-8224XL AT-8288XL/MT, and AT-8288XL/SC Installation Guide.

  • Page 13: Reviewing Safety Guidelines

    All manuals and user guides at all-guides.com AT-8216FXL, AT-8224XL, and AT-8288XL Series Quick Install Guide Reviewing Safety Guidelines Please review the following safety guidelines before you begin to install the Fast Ethernet switch. Laser Class 1 laser product. ! 6 Laser Do not stare into the laser beam.

  • Page 14: Installing The Switch On A Table

    All manuals and user guides at all-guides.com Installing the Switch On a Table The Fast Ethernet switch can be installed in a standard 19-inch rack or on a table or desktop. To install the switch in a rack, go to the section “Installing the Switch in a Rack”...
  • Page 15 All manuals and user guides at all-guides.com AT-8216FXL, AT-8224XL, and AT-8288XL Series Quick Install Guide As power is applied to the switch, the Fault LED (shown in Figure 2) flashes as the switch runs a series of internal self tests. After the switch has finished running its self tests, the Fault LED will stop flashing and will remain off.

  • Page 16: Installing The Switch In A Rack

    All manuals and user guides at all-guides.com Installing the Switch in a Rack To install the Ethernet switch in a standard 19-inch rack, perform the following procedure: Remove all components from the shipping package and store the packaging material in a safe location. To prepare the switch, place it on a level, secure surface.
  • Page 17 All manuals and user guides at all-guides.com AT-8216FXL, AT-8224XL, and AT-8288XL Series Quick Install Guide Mount the switch in the rack using standard screws (not provided). Caution Air vents must not be blocked and must have free access to the room ambient air for cooling.

  • Page 18: Setting Up For Local Management

    All manuals and user guides at all-guides.com Setting Up for Local Management If you are installing the switch in a TCP/IP environment or if you intend to manage the switch from a remote site, you must first assign an IP address to the switch using the Omega management software, which comes pre-installed on the switch.

  • Page 19: Switch Leds

    All manuals and user guides at all-guides.com AT-8216FXL, AT-8224XL, and AT-8288XL Series Quick Install Guide Switch LEDs Table 2 and Table 3 describe the functions of the LEDs on the Ethernet switch. Table 2 Power and Fault LEDs LEDs State Description Fault Solid Red...

  • Page 20: At-S24 Software Default Setting

    All manuals and user guides at all-guides.com AT-S24 Software Default Setting Table 4 lists the default settings for the AT-S24 software that comes pre- installed on the Fast Ethernet switch. Table 4 Fast Ethernet Switch Default Settings Settings Default IP Address 0.0.0.0 Subnet Mask 0.0.0.0...

  • Page 21: Warranty Registration

    All manuals and user guides at all-guides.com AT-8216FXL, AT-8224XL, and AT-8288XL Series Quick Install Guide Warranty Registration When you have finished installing the switch, you should register your product by completing the enclosed warranty card and sending it in, or by visiting our web site at www.alliedtelesyn.com/forms/warranty.htm and completing the on-line registration form.
  • Page 22 All manuals and user guides at all-guides.com...

  • Page 23: Translated Electrical Safety Emission Information

    All manuals and user guides at all-guides.com Appendix A Translated Electrical Safety Emission Information Important: This appendix contains multiple-language translations for the safety statements in this guide. Wichtig: Dieser Anhang enthält Übersetzungen der in diesem Handbuch enthaltenen Sicherheitshinweise in mehreren Sprachen. Vigtigt: Dette tillæg indeholder oversættelser i flere sprog af sikkerhedsadvarslerne i denne håndbog.
  • Page 24 All manuals and user guides at all-guides.com Standards: This product meets the following standards. U.S. Federal Communications Commission RADIATED ENERGY Note: This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 25 All manuals and user guides at all-guides.com AT-8216FXL, AT-8224XL, and AT-8288XL Series Quick Install Guide ! 13 CAUTION: Air vents must not be blocked and must have free access to the room ambient air for cooling. ! 14 OPERATING TEMPERATURE: This product is designed for a maximum ambient temperature of 40°...
  • Page 26 All manuals and user guides at all-guides.com Standarder: Dette produkt tilfredsstiller de følgende standarder. Radiofrekvens forstyrrelsesemission EN55022 Klasse A ADVARSEL: I et hjemligt miljø kunne dette produkt forårsage radio forstyrrelse. Bliver det tilfældet, påkræves brugeren muligvis at tage tilstrækkelige foranstaltninger. Immunitet EN50082-1 1997 Elektrisk sikkerhed...
  • Page 27 All manuals and user guides at all-guides.com AT-8216FXL, AT-8224XL, and AT-8288XL Series Quick Install Guide Eisen: Dit product voldoet aan de volgende eisen. RFI Emissie EN55022 Klasse A WAARSCHUWING: Binnenshuis kan dit product radiostoring veroorzaken, in welk geval de gebruiker verplicht kan worden om gepaste maatregelen te nemen. Immuniteit EN50082-1 1997 Electrische Veiligheid...
  • Page 28 All manuals and user guides at all-guides.com Normes: ce produit est conforme aux normes de suivantes: Emission d’interférences radioélectriques EN55022 Classe A MISE EN GARDE: dans un environnement domestique, ce produit peut provoquer des interférences radioélectriques. Auquel cas, l’utilisateur devra prendre les mesures adéquates.
  • Page 29 All manuals and user guides at all-guides.com AT-8216FXL, AT-8224XL, and AT-8288XL Series Quick Install Guide Standardit: Tämä tuote on seuraavien standardien mukainen. Radioaaltojen häirintä EN55022 Luokka A VAROITUS: Kotiolosuhteissa tämä laite voi aiheuttaa radioaaltojen häiröitä, missä tapauksessa laitteen käyttäjän on mahdollisesti ryhdyttävä tarpeellisiin toimenpiteisiin.
  • Page 30 All manuals and user guides at all-guides.com Standard: Questo prodotto è conforme ai seguenti standard. Emissione RFI (interferenza di radiofrequenza) EN55022 Classe A AVVERTENZA: in ambiente domestico questo prodotto potrebbe causare radio interferenza. In questo caso potrebbe richiedersi all’utente di prendere gli adeguati provvedimenti.
  • Page 31 All manuals and user guides at all-guides.com AT-8216FXL, AT-8224XL, and AT-8288XL Series Quick Install Guide Sikkerhetsnormer: Dette produktet tilfredsstiller følgende sikkerhetsnormer. RFI stråling EN55022 Klasse A ADVARSEL: Hvis dette produktet benyttes til privat bruk, kan produktet forårsake radioforstyrrelse. Hvis dette skjer, må brukeren ta de nødvendige forholdsregler. Immunitet EN50082-1 1997 Elektrisk sikkerhet...
  • Page 32 All manuals and user guides at all-guides.com Padrões: Este produto atende aos seguintes padrões. Emissão de interferência de radiofrequência EN55022 Classe A AVISO: Num ambiente doméstico este produto pode causar interferência na radiorrecepção e, neste caso, pode ser necessário que o utente tome as medidas adequadas.
  • Page 33 All manuals and user guides at all-guides.com AT-8216FXL, AT-8224XL, and AT-8288XL Series Quick Install Guide Estándares: Este producto cumple con los siguientes estándares. Emisión RFI EN55022 Clase A ADVERTENCIA: en un entorno doméstico, este producto puede causar radiointerferencias, en cuyo caso, puede requerirse del usuario que tome las medidas que sean convenientes al respecto.
  • Page 34 All manuals and user guides at all-guides.com Standarder: Denna produkt uppfyller följande standarder. Radiostörning EN55022 Klass A VARNING: Denna produkt kan ge upphov till radiostörningar i hemmet, vilket kan tvinga användaren till att vidtaga erforderliga åtgärder. Immunitet EN50082-1 1997 Elsäkerhet EN60950, UL1950, CSA 950 Laser EN60825...

  • Page 35: Technical Support Fax Order

    All manuals and user guides at all-guides.com Appendix B Technical Support Fax Order Name ___________________________________________________________ Company ________________________________________________________ Address _________________________________________________________ City ____________________ State/Province____________________________ Zip/Postal Code _________________Country____________________________ Phone ___________________________ Fax____________________________ Incident Summary Allied Telesyn model number ________________________________________ Firmware release number of Allied Telesyn product (if applicable) _____________ Other network software products I am using (e.g., network management) _______________________________________________________________ _______________________________________________________________...
  • Page 36 All manuals and user guides at all-guides.com...

  • Page 37: At-8216Fxl, At-8224Xl, And At-8288Xl Quick Install Guide Feedback

    All manuals and user guides at all-guides.com Appendix C AT-8216FXL, AT-8224XL, and AT-8288XL Quick Install Guide Feedback Please tell us what additional information you would like to see discussed in this guide. If there are topics you would like information on that were not covered in this guide, please photocopy this page, answer the questions and fax or mail this form back to Allied Telesyn.
  • Page 38 All manuals and user guides at all-guides.com...
