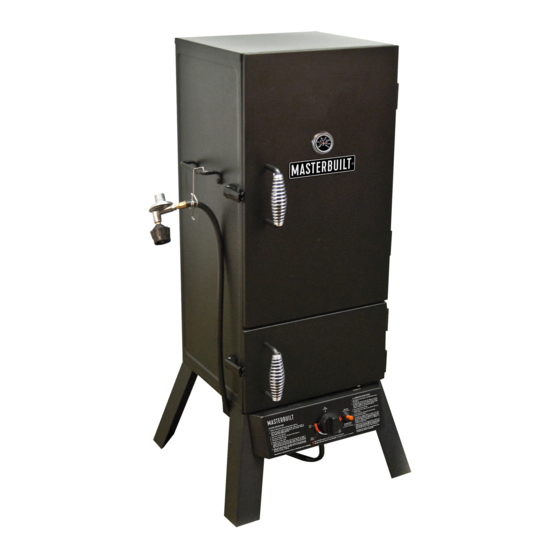

Welcome to the family. Let's get started.
MPS 230S
PROPANE SMOKER
Manual applies to the following model number(s)
MB20053118, MB20053218, MB20053318
Your model number
Mfg. Date - Serial Number
These numbers are located on the rating label of the unit.
IMPORTANT
Please record this information immediately and keep in a safe place for future use.
Manual Code: 9805180005 180830-GSB
AGA certificate No. 8687 G
Master it. Masterbuilt.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MPS 230S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Masterbuilt MPS 230S

Summary of Contents for Masterbuilt MPS 230S

  • Page 1 Welcome to the family. Let’s get started. MPS 230S PROPANE SMOKER Manual applies to the following model number(s) MB20053118, MB20053218, MB20053318 Your model number Mfg. Date - Serial Number These numbers are located on the rating label of the unit.

  • Page 2: Carbon Monoxide Hazard

    CARBON MONOXIDE DANGER HAZARD IF YOU SMELL GAS: Burning wood chips gives off carbon monoxide, which has no odor and can cause death. 1. Shut off gas to the appliance. DO NOT burn wood chips inside homes, 2. Extinguish any open flame. vehicles, tents, 3.

  • Page 3: General Warnings And Safety Information

    • Never use unit for anything other than its intended use. This unit is NOT for commercial use. • Accessory attachments not supplied by Masterbuilt Manufacturing, LLC are NOT recommended and may cause injury. • Use of alcohol, prescription or non-prescription drugs may impair user’s ability to properly assemble or safely operate unit.
  • Page 4 GENERAL WARNINGS AND SAFETY INFORMATION WARNINGS & IMPORTANT SAFEGUARDS CONTINUED FROM PAGE 3 • Keep ventilation openings of cylinder enclosure free and clear of debris. • LP gas cylinder being used must be constructed and marked in accordance with specifications for LP gas cylinders of the US Department of Transportation (DOT) or the Standard for Cylinders, Spheres and Tubes for the Transportation for Dangerous Goods, CAN/CSA-B339.
  • Page 5 • Store only when fire is completely out and all surfaces are cold. • When not in frequent use and using a cover, remember to check your smoker periodically to avoid possible rust and corrosion due to moisture buildup. CHECK OUT MASTERBUILT.COM FOR MORE TIPS AND RECIPE VIDEOS.
  • Page 6 WARNING PERFORM “SOAPY WATER TEST” BEFORE EACH USE. SEE “SOAPY WATER TEST” SECTION IN MANUAL. EXTINGUISH ALL OPEN FLAMES BEFORE CONNECTING REGULATOR TO GAS CYLINDER. TURN GAS OFF AFTER EACH USE. SOAPY WATER TEST WARNINGS & PROCEDURES WARNINGS • Soapy Water Test MUST be performed each time gas cylinder is connected to burner/hose or each time it is used.

  • Page 7: Ignition Instructions

    IGNITION INSTRUCTIONS REGULATOR, BURNER AND GAS VALVE CONNECTION & OPERATION COUNTER • Inspect hose before each use. If there are signs of abrasion, wear, cuts, or leaks, the hose must be CLOCKWISE CLOCKWISE replaced. DO NOT USE. • Inspect burner before each use. Check burner and burner venturi tube for insects and insect nests. A clogged tube can lead to a fire beneath unit.
  • Page 8 MATCH LIGHT INSTRUCTIONS 1. Read all instructions and warnings before lighting. 2. Check control knob and gas cylinder valve to be certain it is in OFF position before connecting to gas cylinder. 3. Perform soapy water test before each use. 4.

  • Page 9: Troubleshooting Guide

    TROUBLESHOOTING GUIDE Symptom Cause Possible Solution Low flame output* Out of fuel Refill or replace with full LP cylinder. Flames blow out* Low on LP gas Refill LP cylinder. Flare-up Excessive grease buildup Clean burner and inside unit. Excessive fat on meat Trim fat off of meat.

  • Page 10: Parts List

    PARTS LIST Actual product may differ from picture shown. PART NO DESCRIPTION Smoker Body Large Smoker Door w/Logo Plate Air Damper (pre-assembled) Rear Legs Control Panel Burner Box Door Handle Body Handle Flame Disk Bowl Water Bowl Water Bowl Holder Cooking Grate Temperature Gauge Valve (pre-assembled)

  • Page 11: Hardware List

    HARDWARE LIST Qty-24 Qty-4 Qty-4 Qty-1 DO NOT RETURN TO RETAILER for assembly assistance, missing or damaged parts. STOP! Please contact Customer Service at 1300 174 876. Please have the model number and serial number available. These numbers are located on the silver rating label on the unit. •...
  • Page 12 ASSEMBLY Actual product may differ from picture shown. Do not fully tighten screws until Step 4 is complete. Leg frames may need to be adjusted during assembly.
  • Page 13 ASSEMBLY Flame Sensor Venturi Valve Orifice Ignition Wire Piezo Ignitor Fully tighten all screws after Step 4 is complete.
  • Page 14 ASSEMBLY Repeat on opposite side.
  • Page 15 ASSEMBLY...
  • Page 16 ASSEMBLY Take out the racks to clean after each use.
  • Page 17 ASSEMBLY Take out the grease cup to clean after each use.
  • Page 18 GASMATE BARBEQUES AND ACCESSORIES PRODUCT RANGE SITRO GROUP AUSTRALIA (S.G.A.) warrants the purchaser of this product against defects in workmanship and materials for the following periods from the date of purchase: For domestic use, this table applies:- Stainless steel components 5 years (surface oxidization excluded) Enamel components 5 years (chips excluded)
  • Page 20 Rest assured, we’re here to help. Do not return to place of purchase. For any queries or assistance call Customer Service (Australia Only) 1300 174 876 Hours of operation: Monday to Friday 8am - 5pm EST Keep your purchase receipt. This will be required to make any claims under the 12 month warranty.
