Bodypoint PC202 Installation And User Instructions
Joystick mounting kits
Hide thumbs
Also See for PC202:
- Installation and user instructions manual (48 pages) ,
- Installation and user instructions (3 pages) ,
- Installation and user instructions manual (45 pages)
Advertisement
Joystick Mounting Kits

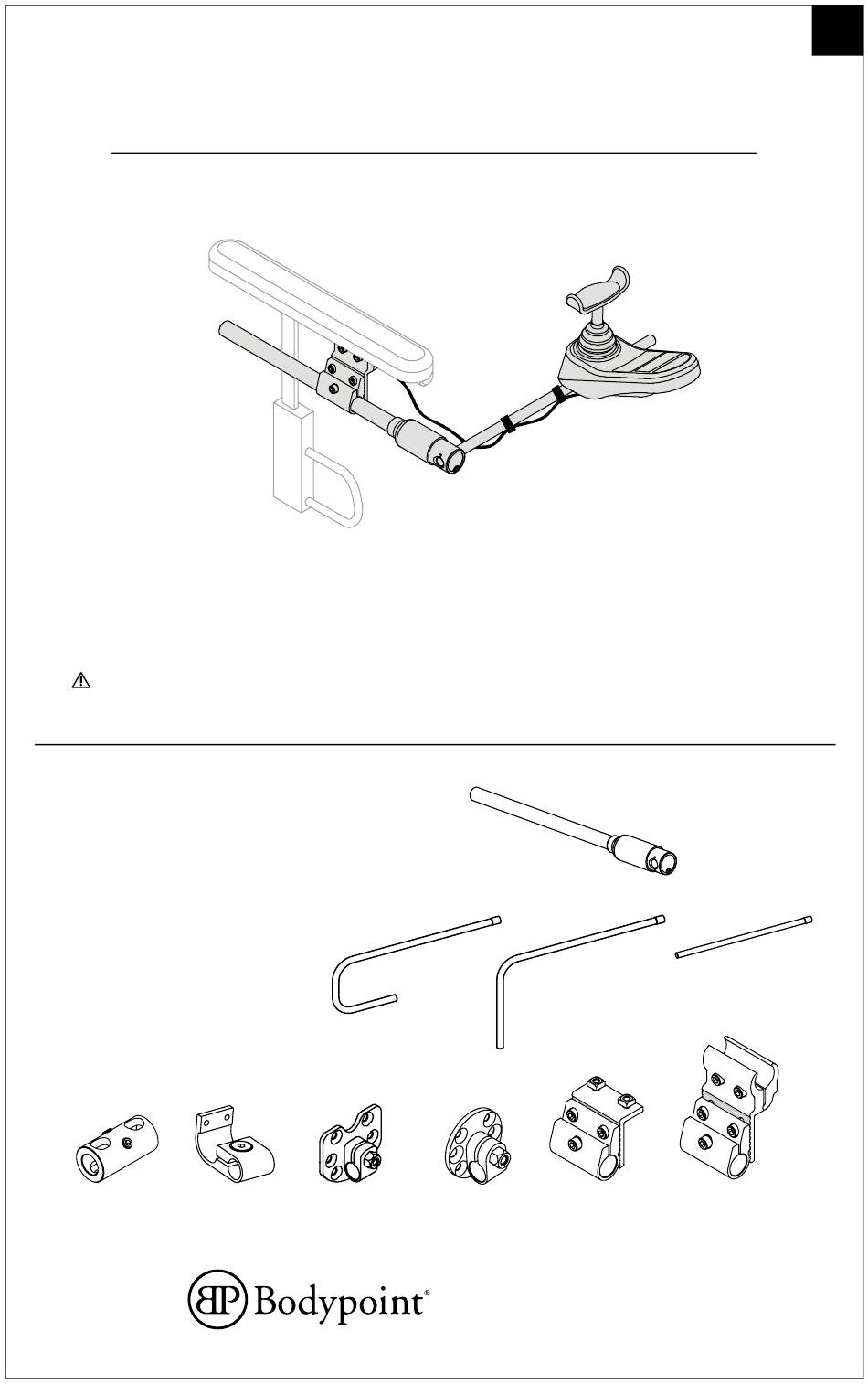

I N S T A L L A T I O N A N D U S E R ' S I N S T R U C T I O N S
A R T N O S . P C 2 0 2 , P C 2 0 5 , P C 2 0 6 & P C 2 0 7
These instructions provide important infor-
mation for the safe use and maintenance
of all Bodypoint Joystick Mounting Kits.
Give these instructions to the user or their
caregiver and review them to ensure that
they are understood.
CAUTION! Turn off wheelchairs electrical
system before installation.
PACKAGE CONTENTS
Package may contain one or
more of the following:
• Joystick Mounting Clamp
• Tri-Lock™ Rotating Shaft
• Midline Arm
• Joystick Mounting Adapter
• Quick Release Lever (Op-
tional) or a complete joystick
Mounting Kit. Art PC202-,
PC205-, PC206-, PC207-
PC042
PC045
WARRANTY: This product carries a limited
lifetime warranty against defects in work-
manship and materials arising under normal
use by the original consumer. Contact your
supplier or Bodypoint for warranty claims.
PC031
PC046
PC047
PC024
PC032
PC033
PC010
PC011
en
BPI031-en 2018.14
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Bodypoint PC202
Summary of Contents for Bodypoint PC202
- Page 1 WARRANTY: This product carries a limited mation for the safe use and maintenance lifetime warranty against defects in work- of all Bodypoint Joystick Mounting Kits. manship and materials arising under normal Give these instructions to the user or their use by the original consumer. Contact your caregiver and review them to ensure that supplier or Bodypoint for warranty claims.
- Page 2 JOYSTICK MOUNTING CLAMP 10mm PC010 15 Nm MAX (132 lbf-in) Joystick Mounting Clamps can be installed on the right or left side. Attach clamp to armrest. Position the clamp as far forward as possi- Ø22mm ble and tighten. 15 Nm MAX (132 lbf-in) Art.
- Page 3 MIDLINE ARMS J-Shaped Midline Arm allows use over a lap tray. NOTE: The aluminum Midline Arm can be cut to length using a hacksaw. JOYSTICK MOUNTING ADAPTERS Attach loose wires with nylon ties included. INVACARE PGDT R-NET & VSI Art. No. PC042 Art.
