Main Features
Flexible Input Configuration
06
Like the BVM-A Series CRT monitors, the BVM-L230 uses a modular slot design, so inputs can be configured according to
individual needs. Four input board slots are available. Optional input boards* can be installed in any board slot, and in
any combination, allowing easier configuration and better cost-per-input value. These option boards utilise only one slot
each, so up to four cards can be installed for maximum flexibility.
* The BVM-L230 input boards are not compatible with other earlier BVM-A Series CRT monitors. They are compatible with the LMD Series.

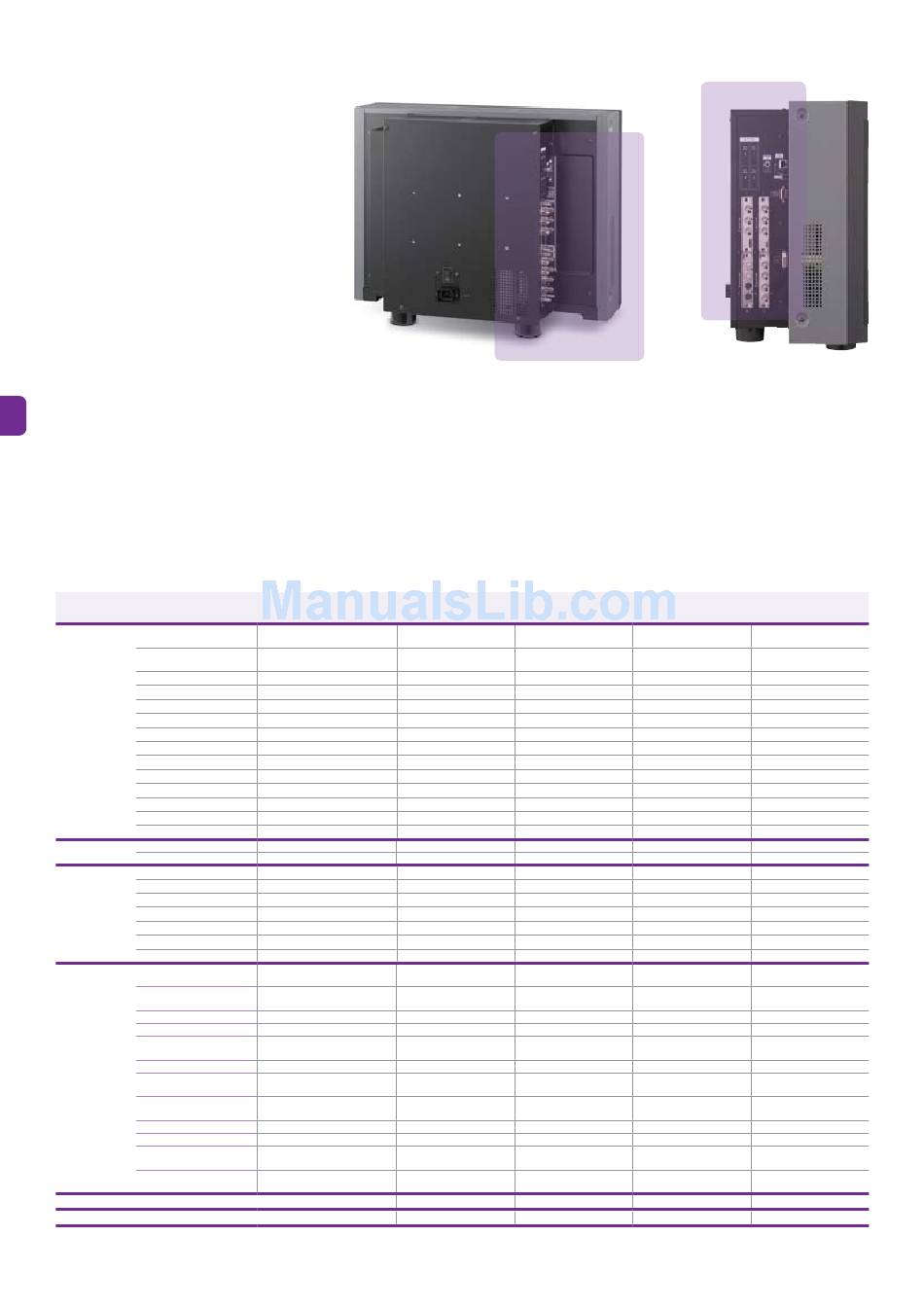

Interface chart by Input Boards
System
Input Signal
Nomenclature
525/59.94i
625/50i
525/59.94i
625/50i
1080/24Psf
1080/24P
Analogue Input
1080/50i (25PsF)
1080/25P
625/50P
525/59.94P
1080/60i (30PsF)**
1080/30P**
720/50P
720/60P**
525/59.94i
SD-SDI
625/50i
1080/24PsF**
1080/25PsF
1080/30PsF**
HD-SDI
1080/50i
1080/60i**
1280 x 720/60P**
1280 x 720/50P
1080/24PsF**
1080/24P**
1080/25PsF
1080/25P
1080/30PsF**
1080/30P**
Dual-Link HD-SDI
1080/50i
1080/60i**
1080/50P
1080/60P**
2048 x 1080/24PsF**
2048 x 1080/24P**
Number of digital inputs
Number of analogue inputs
* Two BKM-243HS optional boards are used.
** Also compatible with 1/1.001 frame rates.
*** BKM-243HS automatically detects SD-SDI and HD-SDI input signals.
Signal Format
BKM-220D
Composite,Y/C
(NTSC/PAL/PAL-M/SECAM)
Composite,Y/C
(NTSC/PAL/PAL-M/SECAM)
Y/PB/PR, GBR
Y/PB/PR, GBR
Y/PB/PR, GBR
Y/PB/PR, GBR
Y/PB/PR, GBR
Y/PB/PR, GBR
Y/PB/PR, GBR
Y/PB/PR, GBR
Y/PB/PR, GBR
Y/PB/PR, GBR
Y/PB/PR, GBR
Y/PB/PR, GBR
Y/PB/PR
Y/PB/PR
10bit 4:2:2 Y/PB/PR
10bit 4:2:2 Y/PB/PR
10bit 4:2:2 Y/PB/PR
10bit 4:2:2 Y/PB/PR
10bit 4:2:2 Y/PB/PR
10bit 4:2:2 Y/PB/PR
10bit 4:2:2 Y/PB/PR
10bit 4:4:4 Y/PB/PR, GBR
12bit 4:4:4 GBR
10bit 4:4:4 Y/PB/PR, GBR
12bit 4:4:4 GBR
10bit 4:4:4 Y/PB/PR, GBR
12bit 4:4:4 GBR
10bit 4:4:4 Y/PB/PR, GBR
12bit 4:4:4 GBR
10bit 4:4:4 Y/PB/PR, GBR
10bit 4:4:4 Y/PB/PR, GBR
12bit 4:4:4 GBR
10bit 4:4:4 Y/PB/PR, GBR
12bit 4:4:4 GBR
10bit 4:2:2 Y/PB/PR
10bit 4:2:2 Y/PB/PR
10bit 4:4:4 Y/PB/PR, GBR
12bit 4:4:4 GBR
10bit 4:4:4 Y/PB/PR, GBR
12bit 4:4:4 GBR
BKM-227W
2
-
-
1
Input Board Slots
BKM-229X
BKM-243HS***
•*
•*
•*
•*
•*
•*
•*
•*
•*
•*
•*
•*
-
2
1
-
