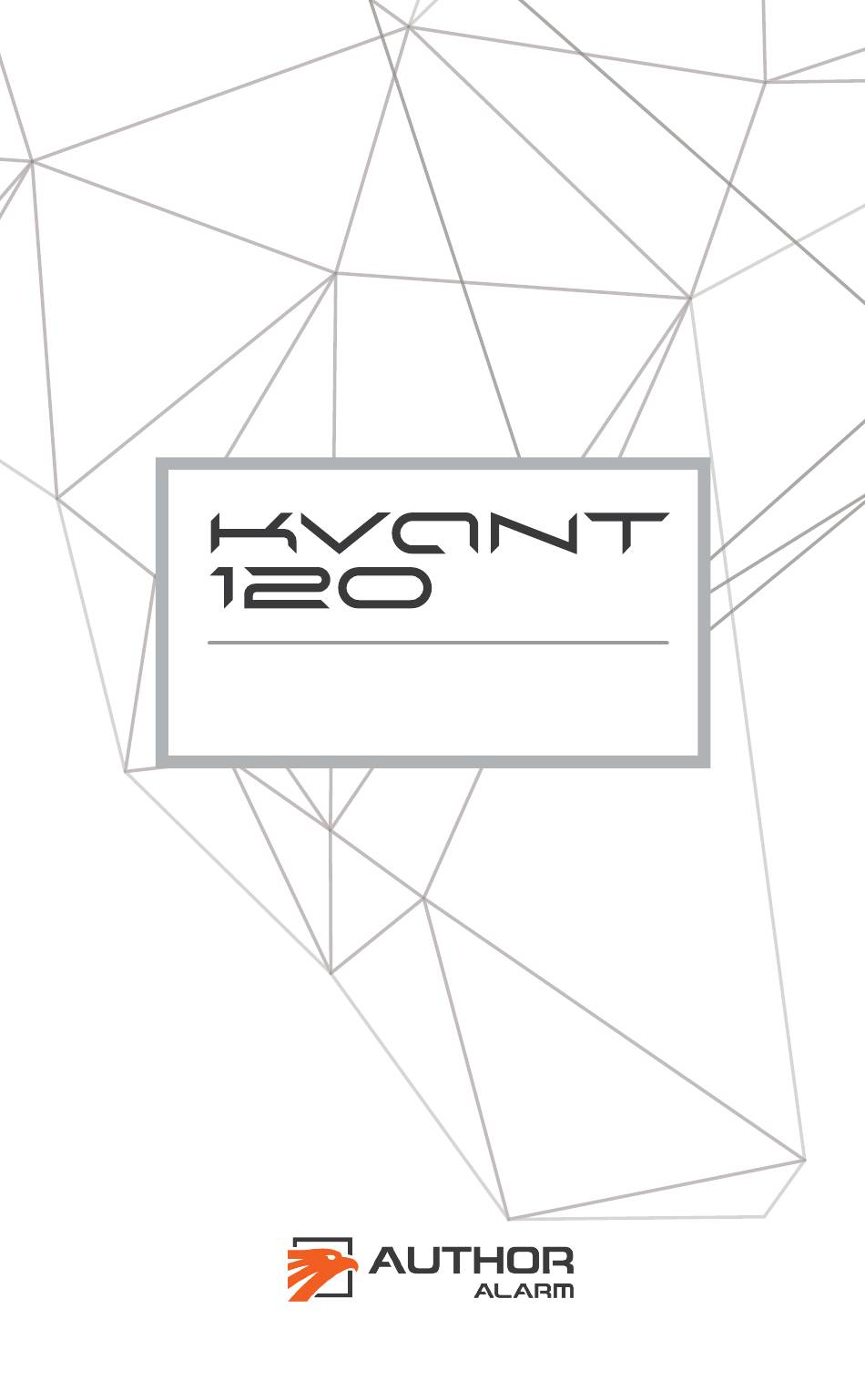

  • Page 1 OPERATING MANUAL...
  • Page 2 Dear car owner! Please note that the AUTHOR Alarm’s anti-theft devices are not intended for self-installation. We strongly recommend to install and configure the purchased equipment only in certified installation centers. ATTENTION! This operating manual contains the secret authorization code intended for an emergency unlocking of the engine.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS General information ............4 Advantages of the system ........... 4 OPERATION CONCEPT ............. 5 Engine locking ..............5 Algorithm of deactivation ..........5 Authorization (PIN-code entering) ........6 Emergency authorization ..........6 Service mode ................ 7 SYSTEM SETTINGS ............. 9 PIN-code setting ...............

  • Page 4: General Information

    General information Immobilizer KVANT 120 is aimed to provide active protection of the car by means of blocking (breaking) electrical chains critical for the engine work. Its special feature is the technology of blocking the engine with the built-in normally closed circuit relay. Blocking...

  • Page 5: Operation Concept

    OPERATION CONCEPT Engine locking KVANT immobilizer prevents hijacking the car by cutting off the engine or by disabling the engine start. Engine locking occurs in the following cases: • the accelerometer fixed the car motion with the ignition «on». • the signal «Ignition» has arrived (optionally) •...

  • Page 6: Authorization (Pin-Code Entering)

    Authorization (PIN-code entering) ATTENTION! The initial PIN-code is set by the specialists of the service centre. For security purposes before driving change the initial PIN-code for the new one and memorize it (see page 12). Enter the PIN-code using the buttons and sequence of pressing that was saved in the system.

  • Page 7: Service Mode

    The emergency authorization code is indicated on the first page of this operating manual and consists of 3 digits. To apply the emergency code switch the ignition On and immediately Off as many times as indicated by the appropriate digit of the code. The ignition switch on/ off time and the pause between the second switch on/ off operation should not exceed 5 seconds.
  • Page 8 After the authorization (the current PIN-code was entered) press 10 times any button wired to the immobilizer entry. Press button not later than 2 minutes after entering the PIN-code. The interval between the pressing of the buttons shall not exceed 2 seconds. The service mode activation will be confirmed by 10 LED or buzzer signals.

  • Page 9: System Settings

    SYSTEM SETTINGS PIN-code setting ATTENTION! PIN-code setting is allowed only for a new «out of box» device or for a device with the restored factory settings (p. 15). The procedure of PIN-code setting when KVANT is connected under the minimum connections scheme (p. 18) to two standard analogue buttons (p.
  • Page 10 A different combination of buttons and sequence of keystrokes is allowed, e.g. if you press the button #1 twice and press the button #2 once, the system will save all the clicks in this order. When you have finished entering the PIN-code, the system will provide 3 confirmation signals of LED or buzzer, regardless the number of clicks.
  • Page 11 System will switch into the learning mode, the dual indication signals of the LED or the buzzer will be provided once in 3 seconds. 4. Disconnect the grey wire, without removing the power from the red wire. The indication will shift to triple signal once in 3 seconds.

  • Page 12: Change Of Pin-Code

    If there are 4 indication signals, it means that the PIN-codes do not match and PIN-code has not been saved. Repeat the steps 1-8 to set PIN-code. 9. Disconnect the red wire from DC+ in order to reboot the device. 10.

  • Page 13: Motion Sensor Sensitivity Adjustment

    The number of pressings shall be in the range from 2 to 9. The interval between the pressings of the buttons shall not exceed 2 seconds. There is no difference between long and short pressings. Buttons must be pressed firmly. A different combination of buttons and sequence of keystrokes is allowed, e.g.
  • Page 14 1. Switch the ignition on without starting the engine. 2. Enter the current PIN-code to authorize. There will be 2 indication signals. 3. Enter the immobilizer Setup menu (Setup menu is available within 2 minutes after the PIN-code entering). For this purpose press any of the buttons connected to the device and retain it pressed during 10 seconds.

  • Page 15: Reset To Factory Settings

    Reset to factory settings ATTENTION! When KVANT immobilizer is connected under the «feeding» scheme (p. 24) you have to complete the initial PIN-code setting procedure after the reset to factory settings (p. 9). Otherwise, when the power supply or the ignition is switched on, the LED or buzzer will indicate single signals with duration of 2 seconds.

  • Page 16: Kvant Immobilizer Options

    KVANT Immobilizer options The options set in default («on» or «off») are marked with grey colour in the table. The option number corresponds to the number of keystrokes to set the required state of the option. Option Entering Setup menu –...
  • Page 17 to the state «switched on» or «switched off» (see the digits corresponding the appropriate option in the table). For example, 5 times to set the sensitivity level «5» motion sensor or 2 times to lock on ignition. The indication signals which correspond to the new value will confirm its record into the system memory.
  • Page 18 KVANT minimum connection diagram +12V +12V Button 1 Ignition «+» LED/buzzer «-» 1. Red. +12V power supply. 2. Grey. For the system learning* Analogue regular button «+». 3. Yellow. Ignition «+». 4. Blue. Light-emitting diode LED/ buzzer «-». 5. Black. Ground/earth. ATTENTION! KVANT minimum connection scheme feature is the limitation of the quantity of buttons for PIN- code setting (only 1 button) and the impossibility...
  • Page 19 6. Purple (0,2 mm ). Normally Closed contact. 7. Green (0,2 mm ). Normally Opened contact. 8. White-black. Common wire (for circuit blocking). * Connect the grey wire (2) to «+» in order to turn on the system learning mode (see p.

  • Page 20: Wiring Map

    KVANT wiring map to regular analogue buttons +12V +12V Button 1 Button 2 AT switch «-» Ignition «+» LED/buzzer «-» +12V 1. Red. +12V power supply. 2. Grey. For the system learning.* Analogue regular button 1 «+». 3. Pink. To the white wire (5). 4.
  • Page 21 11. Purple (0,2 mm ). Normally Closed contact. 12. Green (0,2 mm ). Normally Opened contact. 13. White-black. Common wire (for circuit blocking). * Connect the grey wire (2) to «+» in order to turn on the system learning mode (see p.
  • Page 22 KVANT wiring map for the car «inflow-free» resistor array* +12V +12V Button 1 From resistance array Resistance array AT switch «-» Ignition «+» LED/buzzer «-» +12V 1. Red. +12V power supply. 2. Grey. For the system learning.** Additional analogue regular button «+». 3.
  • Page 23 10. Purple (0,2 mm ). Normally Closed contact. 11. Green (0,2 mm ). Normally Opened contact. 12. White-black. Common wire (for circuit blocking). * «Inflow» – is the method of the device connection, when the usage of the resistor array buttons is allowed in the absence of power supply from ECM (it is a possible to use buttons on the driving wheel of the cars which turn off the resistor array power supply when the ignition is off).
  • Page 24 KVANT wiring map for the car «inflow» resistance array* +12V +12V Button 1 From resistance array (cut here) Resistance array AT switch «-» LED/ Ignition «+» buzzer «-» +12V 1. Red. +12V power supply. 2. Grey. For the system learning.** Additional analogue regular button «+».
  • Page 25 12. Purple (0,2 mm ). Normally Closed contact. 13. Green (0,2 mm ). Normally Opened contact. 14. White-black. Common wire (for circuit blocking). * «Inflow» – is the method of the device connection, when the usage of the resistance array buttons is allowed in the absence of power supply from ECM (it is a possible to use buttons on the driving wheel of the cars which turn off the resistance array power supply when the ignition is off).

  • Page 26: Reference Information

    ....... not more than 5 mA Current of the built-in safety relay ..not more than 2 A Signal control current «Service mode» ......not more than 250 mA Contents of the set Immobilizer KVANT 120 1 pcs. Relay AR20 1 pcs. Buzzer 1 pcs.
  • Page 27 Immobilizer location ATTENTION! Keep the PIN-code in mind or write it down after you have changed the PIN-code. Do not leave PIN-code information as well as this operating manual inside the car!
  • Page 28 WARRANTY CERTIFICATE Warranty is 12 months from the date of the purchase. During this period technical support and maintenance are guaranteed for free. The warranty does not apply to the items with: • mechanical damage, burnt and char pieces, components, conductive tracks etc.;...
  • Page 32 Supported Cars List App.
