OPERATING MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RAPTOR 151 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AUTHOR Alarm RAPTOR 151

Summary of Contents for AUTHOR Alarm RAPTOR 151

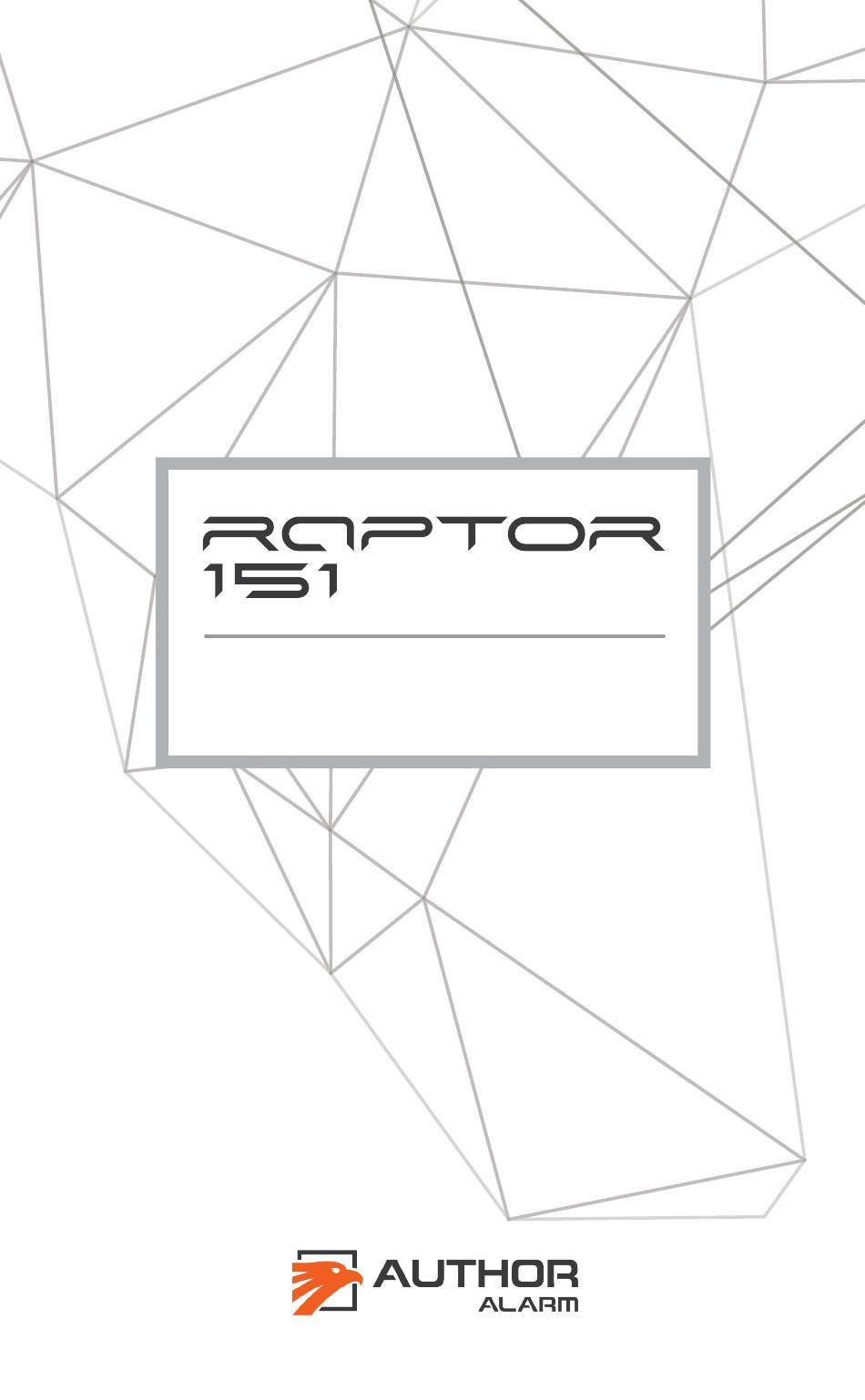

  • Page 1 OPERATING MANUAL...
  • Page 2 Dear car owner! Please note that the AUTHOR Alarm’s anti-theft devices are not intended for self-installation. We strongly recommend to install and configure the purchased equipment only in certified installation centers. version 807.1 nRF51/52...

  • Page 3: Table Of Contents

    TABLЕ OF CONTENTS General information ............4 Benefits of the system ............4 OPERATION CONCEPT ............5 Security deactivation ............5 Authorization via key fob ..........6 Authorization via PIN-code ..........7 Service mode ............... 8 Engine locking ..............9 Device number check ............

  • Page 4: General Information

    General information RAPTOR is unique device developed to protect your car from theft. The device has an innovative mechanism of engine locking that uses standard wiring of the car so there is no additional wiring that can be easily found. The locking is deactivated with the key fob or with the secret code.

  • Page 5: Operation Concept

    OPERATION CONCEPT Security deactivation In order to start driving you should log into the system via one of the following ways: • use the key fob; • enter the Emergency code specified under the protection layer of the plastic card. If the key fob is detected (Emergency code is entered correctly), the system will signal with indication, the engine will not be locked and you can start driving.

  • Page 6: Authorization Via Key Fob

    Authorization via key fob It is enough to have the key fob to authorize in the system. ATTENTION! Do not leave the key fob inside the car when the ride is over. Otherwise the anti-theft functions of the system will be deactivated. Get into the car, switch ON the ignition.

  • Page 7: Authorization Via Pin-Code

    Authorization via PIN-code Get into the car, switch on the ignition and using accelerator and brake pedals enter the Emergency code specified on the plastic card under the protection layer: 1. Switch on the ignition without starting the engine. 2. Press the brake pedal and while keeping it pressed press the accelerator* pedal a certain number of times as far as it can go where the number is equal to the first digit in the Emergency code.

  • Page 8: Service Mode

    Service mode The service mode is used for temporary deactivation of the anti-theft device when you give your car for the maintenance (without giving away the code and saying about the device). In order to switch on the service mode after the authorization (the key fob was detected or the Emergency code is entered) press the accelerator as far as it can go 5 times*.

  • Page 9: Engine Locking

    Engine locking The anti-theft system IGLA prevents the car theft by stall of the running engine the engine start inhibit. The method of locking is set automatically when the device is connected to the car: • for some car models only the engine start inhibit is available;...

  • Page 10: Device Number Check

    Device number check This check is necessary to confirm the connection between the plastic card with Emergency code and the installed device. If the open code card number does not match with the device, the Emergency code can not be used to unlock the system.

  • Page 11: Reference Information

    REFERENCE INFORMATION Options of the anti-theft system RAPTOR The state of option set in the system by default («Switch ON», «Switch OFF») is marked with grey color in the table. The figures in the table show how many times the service button shall be pressed to choose a particular option state.

  • Page 12: Locking Method Selection

    Locking method selection By default the system is set so that the mode for Engine start inhibit is ON. Initial status of an option depends on car brand/model (see the section System compatibility on the web-site author-alarm.com). In order to switch ON or OFF the Engine start inhibit mode do the following: 1.

  • Page 13: Adding Or Deleting Key Fobs

    2. Press the accelerator pedal as far as it can go 23 times. When you press the accelerator last time keep it pressed until the confirmation signals will appear. The indication signals will confirm the action. The system will be in the Firmware update mode. ATTENTION! This opportunity is not supported by all types of firmware and car models.
  • Page 14 All key fobs saved in memory of the RAPTOR device will be deleted. The system will be in the mode of saving new key fobs. 4. For M52 key fobs (see marks on electronics board): Insert the battery into the new key fob. The LED on key fob will start flashing continuously with green light.
  • Page 15 Erase the key fob from the device memory in case of loss in order to prevent car theft. In order to delete the key fob follow the above mentioned steps 1-3 in order to delete the key fob. ATTENTION! During this procedure all saved key fobs will be erased from the memory.
  • Page 16 Additional modules for the standard functions of RAPTOR CONTOUR – is a control module for the hood locks, secures the under hood space when working together with the RAPTOR system. Apart from the hood lock control the system has an option for the control of the additionally installed normally closed locking relay.
  • Page 17 TOR – digital CAN-bus relay aimed to provide complex protection of your car with the RAPTOR system installed. TOR uses the additional locking circuit that is activated in case the connection with the engine control unit via CAN-bus is faulty or disrupted. Locking allows to activate the Running engine stall option for cars without digital locking of the running engine.
  • Page 18 Specifications Current consumption in standby mode (the ignition is off) ............8 mА Operating voltage ............. 6-15 V Radio-channel frequency ........2,4 GHz Battery life time ............. 6 months Key fob battery type ..........CR2032 Contents of the set Anti-theft device RAPTOR 1 pcs.
  • Page 19 Placement of the locking module ATTENTION! Do not leave the plastic card with the code as well as this guide inside the car!
  • Page 20 WARRANTY CERTIFICATE Warranty is 12 months from the date of the purchase. During this period technical support and maintenance are guaranteed for free. The warranty does not apply to the items with: • mechanical damage, burnt and char pieces, components, conductive tracks etc.;...
  • Page 24 Supported Cars List App.
