Summary of Contents for AUTHOR Alarm Kord

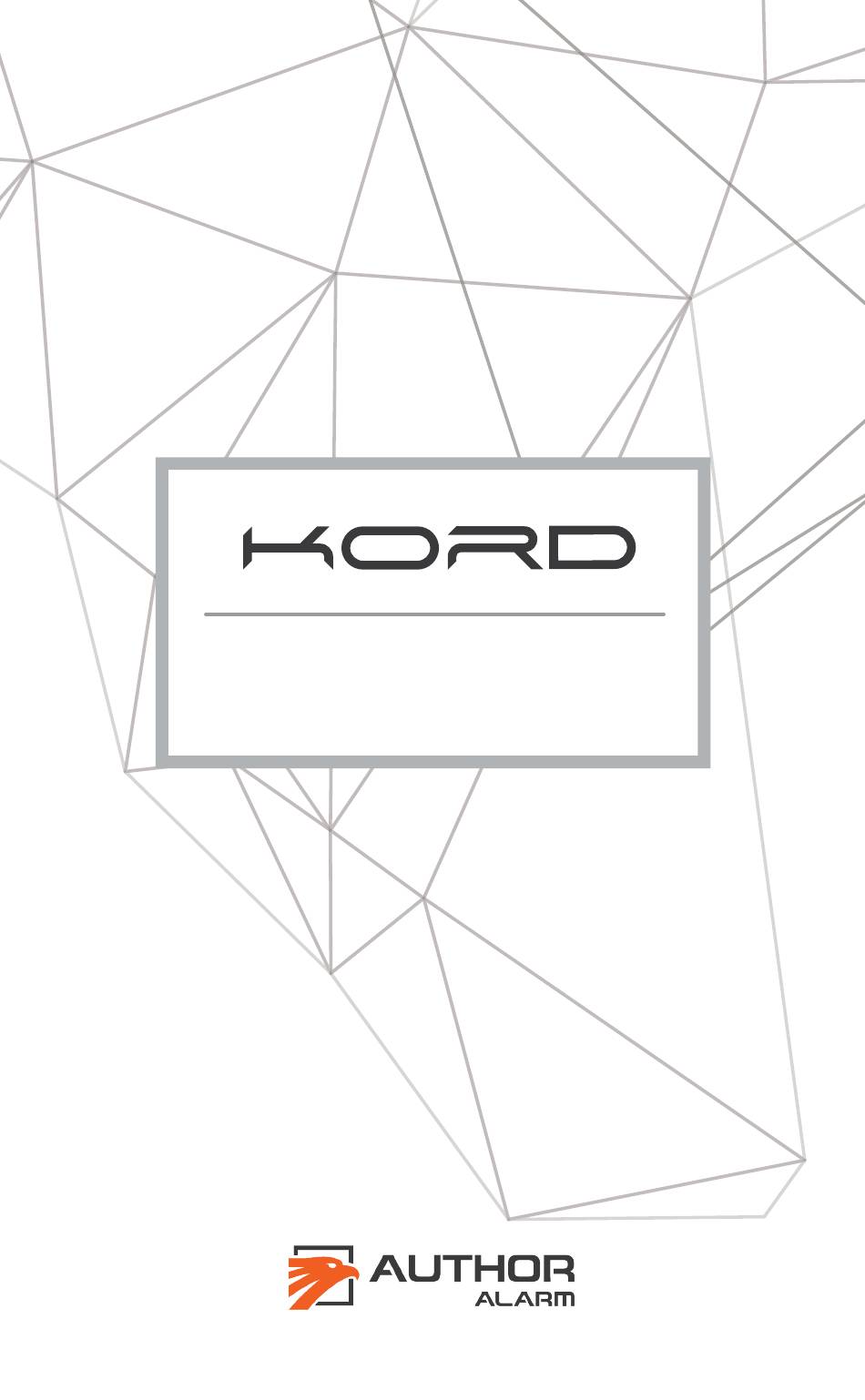

- Page 1 OPERATING MANUAL...
- Page 2 version 802.1...
-
Page 3: Table Of Contents
TABLE OF CONTENTS General information ............4 Installation scheme ............5 Connection between IGLA and KORD ......6 Specifications ............... 7 Contents of the set ............7... -
Page 4: General Information
Devices are connected via standard CAN bus in an encrypted dialogue mode. This excludes unauthorized access to hood lock control features. KORD module controls the status of hood open, in other words the hood lock cannot be locked if the hood is opened.* The hood lock is closed in the following cases: •... -
Page 5: Installation Scheme
Installation scheme To connect KORD module connect its wires the following way: 1. Black. To power supply «-» (ground/earth). 2. Purple. To the hood lock activator (12A max). Power supply «+» to close the lock. 3. Green. To the hood lock activator (12A max). Power supply «+»... -
Page 6: Connection Between Igla And Kord
ATTENTION! If you need to connect 2 and more KORD modules only PIN-code change mode can be used (enter the PIN-code once again with the accelerator pressed*). -
Page 7: Specifications
Current consumption in the standby mode ..... 5 mА Maximum current to the lock activator ....12 А Operating voltage ............6-16 V Contents of the set KORD module ............... 1 pcs. Operating manual ............1 pcs. Packing ................1 pcs. Made in Russia Manufacturer: LLC «DMA Group»... - Page 8 WARRANTY CERTIFICATE Warranty is 12 months from the date of the purchase. During this period technical support and maintenance are guaranteed for free. The warranty does not apply to the items with: • mechanical damage, burnt and char pieces, components, conductive tracks etc.;...
- Page 12 Supported Cars List App.
