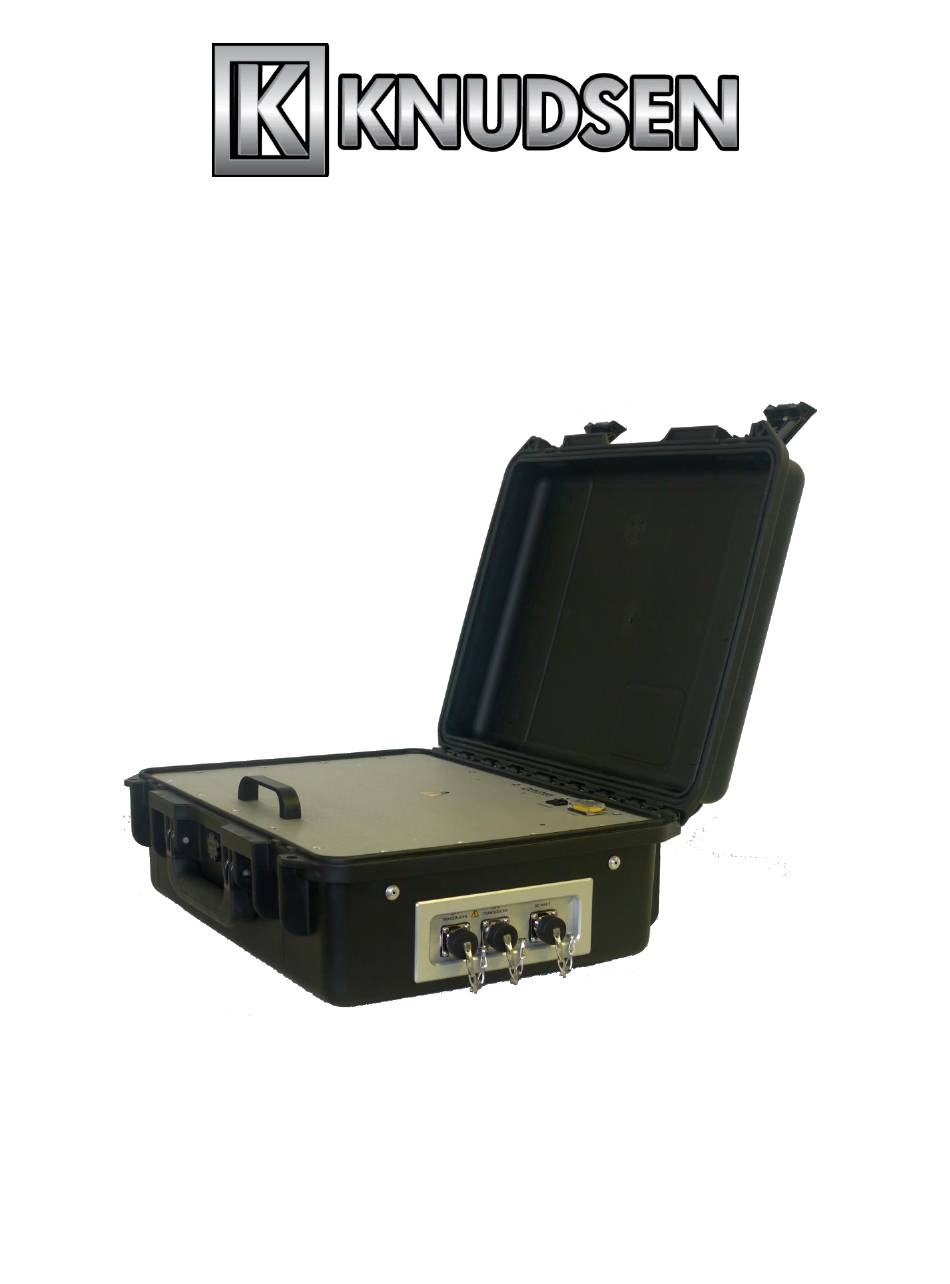

- Page 1 CHIRP 3212 QUICK START GUIDE D101-05733-Rev2.1 For use with Knudsen Chirp 3212 Part Number: D229-04405...
-
Page 2: Table Of Contents
CABLE CONNECTIONS ..........................11 The information contained in this documents is proprietary of Knudsen Engineering Limited. Any disclosure, use, or reproduction of this information for other than the specific purpose intended is expressly prohibited unless agreed to in writing by Knudsen. -
Page 3: Amendment History
Darren Gibson Nolan Pretty The information contained in this documents is proprietary of Knudsen Engineering Limited. Any disclosure, use, or reproduction of this information for other than the specific purpose intended is expressly prohibited unless agreed to in writing by Knudsen. -
Page 4: Introduction
WebSite: http://knudseneng.com/ Unpacking the Shipment The Chirp 3212 is packed with custom made foam end caps and shipping box. Please keep the end caps and box for any possible return shipments. The standard shipment may contain the following items: ... -
Page 5: Description
26 lbs 12 kg The information contained in this documents is proprietary of Knudsen Engineering Limited. Any disclosure, use, or reproduction of this information for other than the specific purpose intended is expressly prohibited unless agreed to in writing by Knudsen. -
Page 6: Installation
4.0 Installation System Overview The Chirp 3212 is a “black box” Echosounder that interfaces to any Windows-based PC to allow the user to control all system parameters, manage peripherals, record entire echogram data, as well as internal and external data logging. The communications link from the Chirp 3212 to the PC is via USB (full speed 2.0). -
Page 7: Analog Output
For additional system protection there is a circuit breaker located next to the Main Power Switch. 4.4.3 Serial Number Plate The Chirp 3212 Part Number and Serial Number are located on the ID plate located on the lid of the echosounder case. This information may be asked for during support. -
Page 8: System Operation
AGC: automatic gain control – an algorithm that adjusts the analog gain on a ping-by-ping basis based on previous data. The information contained in this documents is proprietary of Knudsen Engineering Limited. Any disclosure, use, or reproduction of this information for other than the specific purpose intended is expressly prohibited unless agreed to in writing by Knudsen. -
Page 9: Channel Roles
For a 64ms pulse, min depth = 48m The information contained in this documents is proprietary of Knudsen Engineering Limited. Any disclosure, use, or reproduction of this information for other than the specific purpose intended is expressly prohibited unless agreed to in writing by Knudsen. - Page 10 The information contained in this documents is proprietary of Knudsen Engineering Limited. Any disclosure, use, or reproduction of this information for other than the specific purpose intended is expressly prohibited unless agreed to in writing by Knudsen.
-
Page 11: Basic Troubleshooting
The information contained in this documents is proprietary of Knudsen Engineering Limited. Any disclosure, use, or reproduction of this information for other than the specific purpose intended is expressly prohibited unless agreed to in writing by Knudsen. -
Page 12: Cable Connections
Center Pin: Signal Shell: Ground The information contained in this documents is proprietary of Knudsen Engineering Limited. Any disclosure, use, or reproduction of this information for other than the specific purpose intended is expressly prohibited unless agreed to in writing by Knudsen.
