PREMIER TECHNOLOGIES Hybrid 7100 Series Quick Start Manual

Network Load / Music On Hold System

General Description

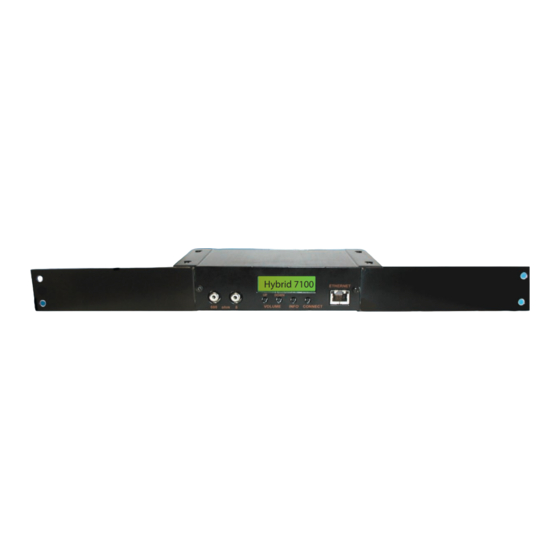

The Hybrid 7100 is an IP-based digital message repeater used for music
and message on-hold applications on phone systems. This device is
intended for reliable, high quality audio distribution over the internet or
a network.The unit continuously plays MP3 audio stored in flash
memory. As a stand-alone device, the Hybrid 7100 is connected to the
music on-hold port of a telephone system and a high-speed data
(Ethernet) port.
Ideal Users
• Multi-locations
- The unit and delivery system scales to an unlimited number of locations
• Global Operations
- Web-based solution allows outreach to anywhere in the world.
• Timely music and message on-hold demands
- Content updates will coincide with time-sensitive ad campaigns
• Current dependence on physical content distribution
- Eliminates delivery of physical media ( cassette tape, CD etc.)
to each location.
Hybrid
Hybrid 7100
Features
Network Delivery:
remote audio upload via the customer Wide Area Network.
The Hybrid 7100 has a built in GUI that allows the user to
upload an MP3 file, assign static IP settings and control volume level.
Flash Memory:
connection will play from solid-state flash memory.
(24 mb storage)
LCD Display:
volume level, and name of current audio file being played.
MP3 Compatible:
64-256 kbps.
Upload Software (optional):
with multiple locations a java application can be provided for
delivery to multiple IP addresses.
Rack Mount (optional):
VoIP systems, the NET 7100 can also be mounted on a server rack
(consumes 1 rack unit).
7100 Series
The Ethernet connection allows for
All audio uploaded via Ethernet
The LCD will display device IP information,
Unit accepts MP3 formats from
For customers
For a cleaner installation on
