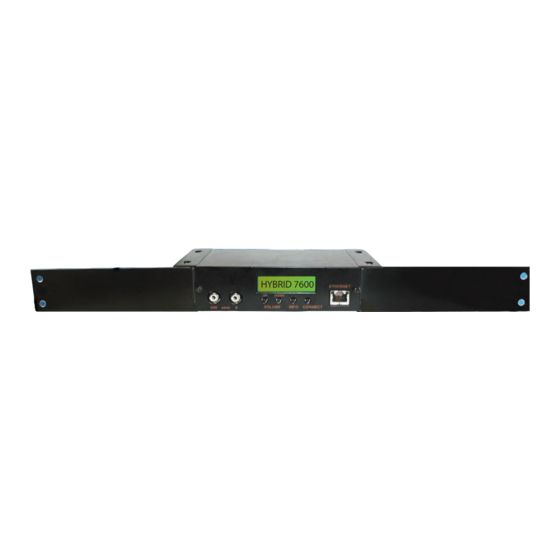

PREMIER TECHNOLOGIES Hybrid 7600 Series Quick Start Manual

General Description

The Premier Technologies hybrid 7600 is a solid-state,
digital audio player used for Music and Message On-Hold
applications. The Hybrid 7600's "dual option" delivery
provides flexibility in updating the device with new On Hold
music and messages.
Users can upload new audio remotely via the Ethernet connection,
or on-site by using a removable USB flash drive. For Ethernet
applications the audio can be delivered and managed remotely via
a LAN/WAN without the need for proprietary software. The USB
port can be used as an alternative for those users choosing to
update via a removable USB flash drive. Both methods of delivery
accept a standard MP3 audio file.
The Hybrid 7600 also offers a flexible installation. You can mount
the device to a wall next to the phone system, or in a server rack
environment.

Ideal Users

- Multi-location customers
- Customers who want to manage their On Hold content remotely
- Users who already have their own audio content
- Companies using a VoIP Phone System

USB Flash Drive

Dual Option MP3 On Hold System

Rear Panel

Hybrid
HYBRID 7600

Features

Network Delivery:
remote audio upload via the customer Wide Area Network.
The Hybrid 7600 has a built in GUI that allows the user to
upload an MP3 file, assign IP settings and even control volume level.
USB Delivery:
can update the audio by means of a removable USB flash drive.
Simply drag/drop the MP3 audio file(s) to the flash drive and insert
into the 7600's rear panel for instant playback.
LCD Display:
volume level, and configuration settings. In USB mode the
LCD will display the audio file currently being played. The LCD
can also display a customized text "banner" which will
continuously scroll across the screen.
Solid-State Playback:
connection will play from solid-state flash memory. Audio uploaded
via USB drive will play directly from USB flash drive.
Rack Mount (optional):
VoIP systems, the Hybrid 7600 can also be mounted on a server
rack (consumes 1 rack unit).
MP3 Compatible:
delivery options are compatible with a standard MP3 audio file.
Recommended bit rate is 64-128 kbps.
7600 Series
The Ethernet connection allows for
If Ethernet delivery is not available, the user
The LCD will display device IP information,
All audio uploaded via Ethernet
For a cleaner installation on
Both the Ethernet and USB flash drive
