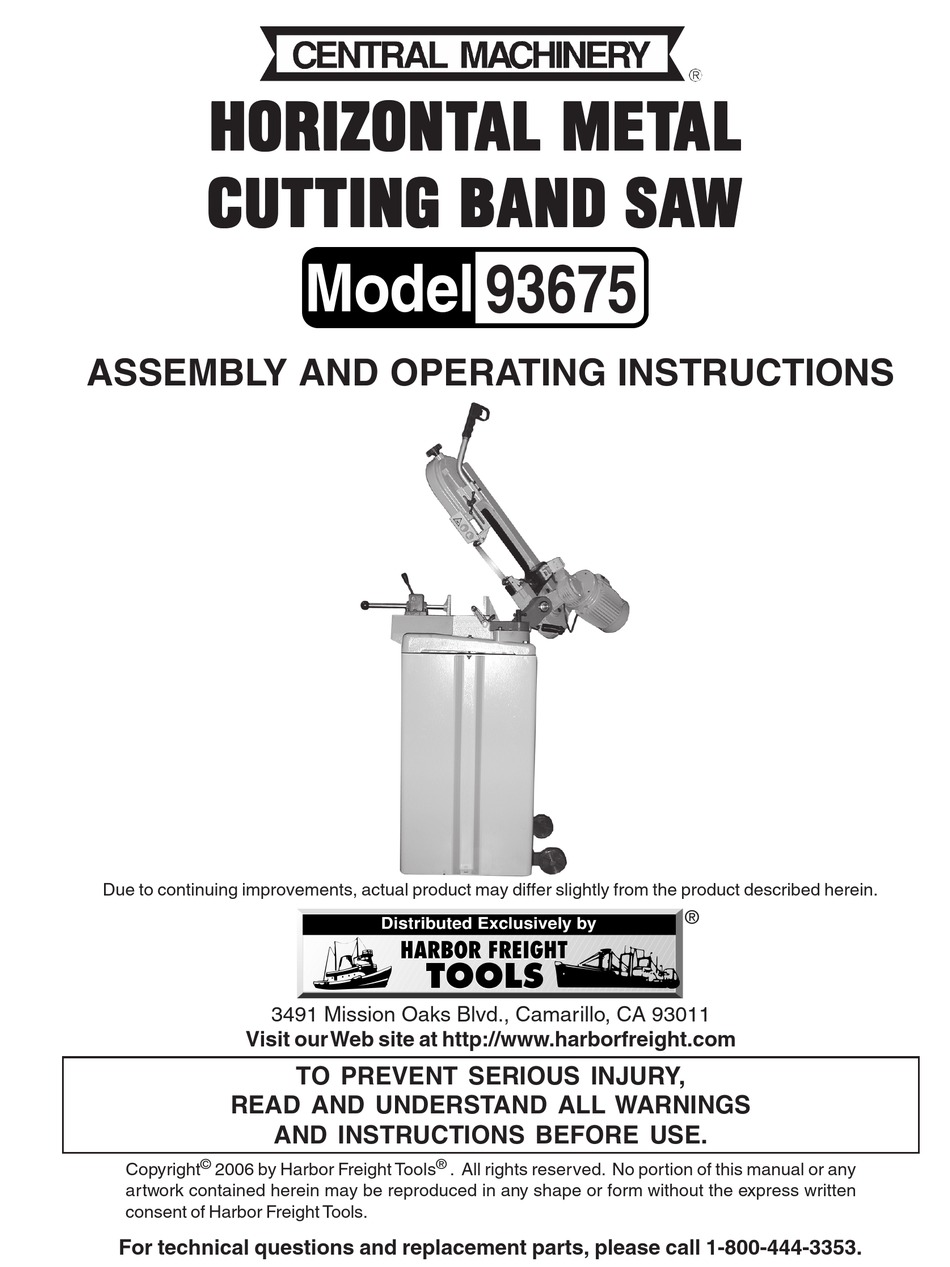

ASSEMBLY AND OPERATING INSTRUCTIONS
Due to continuing improvements, actual product may differ slightly from the product described herein.
Visit our Web site at http://www.harborfreight.com
READ AND UNDERSTAND ALL WARNINGS
©
Copyright
2006 by Harbor Freight Tools
artwork contained herein may be reproduced in any shape or form without the express written
consent of Harbor Freight Tools.
For technical questions and replacement parts, please call 1-800-444-3353.
3491 Mission Oaks Blvd., Camarillo, CA 93011
TO PREVENT SERIOUS INJURY,
AND INSTRUCTIONS BEFORE USE.
®
. All rights reserved. No portion of this manual or any
AL MET
AL MET
AL MET AL
AL MET
93675
AL AL
AL AL
®
Advertisement
Table of Contents
Related Manuals for Harbor Freight Tools 93675
Summary of Contents for Harbor Freight Tools 93675
- Page 1 AND INSTRUCTIONS BEFORE USE. © ® Copyright 2006 by Harbor Freight Tools . All rights reserved. No portion of this manual or any artwork contained herein may be reproduced in any shape or form without the express written consent of Harbor Freight Tools.
-
Page 2: Specifications
Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes. Keep bystanders, children, and visitors away while operating a power tool. Page 2 SKU 93675 For technical questions, please call 1-800-444-3353... -
Page 3: Electrical Safety
12. Avoid accidental starting. Be sure the Power Switch is off before plugging in. Carrying power tools with your finger on the Power Switch, or plugging in power tools with the Power Switch on, invites accidents. Page 3 SKU 93675 For technical questions, please call 1-800-444-3353... -
Page 4: Tool Use And Care
25. When servicing a tool, use only identical replacement parts. Follow instructions in the “Inspection, Maintenance, And Cleaning” section of this manual. Use of unauthorized parts or failure to follow maintenance instructions may create a risk of electric shock or injury. Page 4 SKU 93675 For technical questions, please call 1-800-444-3353... - Page 5 SPECIFIC SAFETY RULES FOR THIS PRODUCT Maintain labels and nameplates on the Band Saw. These carry important information. If unreadable or missing, contact Harbor Freight Tools for a replacement. Always wear ANSI-approved safety impact eye goggles and heavy work gloves when using the Band Saw.
- Page 6 (California Health & Safety Code 25249.5, et seq.) Page 6 SKU 93675 For technical questions, please call 1-800-444-3353...
- Page 7 If it still does not fit, contact a qualified electrician. Never use with an extension cord unless plug can be fully inserted. Do not alter the plug.” Page 7 SKU 93675 For technical questions, please call 1-800-444-3353...
-
Page 8: Extension Cords
3.5 – 5.0 5.1 – 7.0 7.1 – 12.0 12.1 – 16.0 16.1 – 20.0 * Based on limiting the line voltage drop to five volts at 150% of the rated amperes. Page 8 SKU 93675 For technical questions, please call 1-800-444-3353... -
Page 9: Assembly Instructions
When unpacking, check to make sure that all the parts are included. Refer to the Assembly Drawings and Parts Lists. If any parts are missing or broken, please call Harbor Freight Tools at the number on the cover of this manual as soon as possible. -
Page 10: Stand Parts List
Bolt, Hex M8 x 10 Washer Nut, Hex M8 x P1.75 Bolt, Hex M8 x 75 Washer Nut, Hex M8 x P1.75 Wheel Assembly Bolt, Hex M8 x 16 Washer Page 10 SKU 93675 For technical questions, please call 1-800-444-3353... -
Page 11: Operating Instructions
Band Saw assembly to the desired angle as read on the Scale (65). The Scale (65) is marked in one degree increments from 0° (cut 90° to stock) to 45° cut to stock. (87) (44) (65) Page 11 SKU 93675 For technical questions, please call 1-800-444-3353... - Page 12 Motor Flywheel (6). It may be necessary to remove the Body Cover (4) to check this. NOTE: If the Band Saw will not be used over long periods of time, release the tension on the Saw Blade (49). Page 12 SKU 93675 For technical questions, please call 1-800-444-3353...
-
Page 13: Inspection, Maintenance, And Cleaning
Return Flywheel (20) and the Motor Flywheel (6). Replace the Body Cover (4) by replacing the six screws that hold it in place. Page 13 SKU 93675 For technical questions, please call 1-800-444-3353... -
Page 14: Bearing Alignment
1. Saw Blade alignment off where it 1. Realign Blade Guides and/or Saw Blade side touches the Blade Guides or flywheels flywheels 2. Blade Guides loose 2. Align and retighten Blade Guides Page 14 SKU 93675 For technical questions, please call 1-800-444-3353... -
Page 15: Parts List
NICIANS AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO. Page 15 SKU 93675 For technical questions, please call 1-800-444-3353... -
Page 16: Assembly Drawing
ASSEMBLY DRAWING Page 16 SKU 93675 For technical questions, please call 1-800-444-3353...
