OWNER'S MANUAL

Model No. C154

Page 1

01/19

Table of Contents

Need help?

Do you have a question about the Pro Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Weego Pro Series

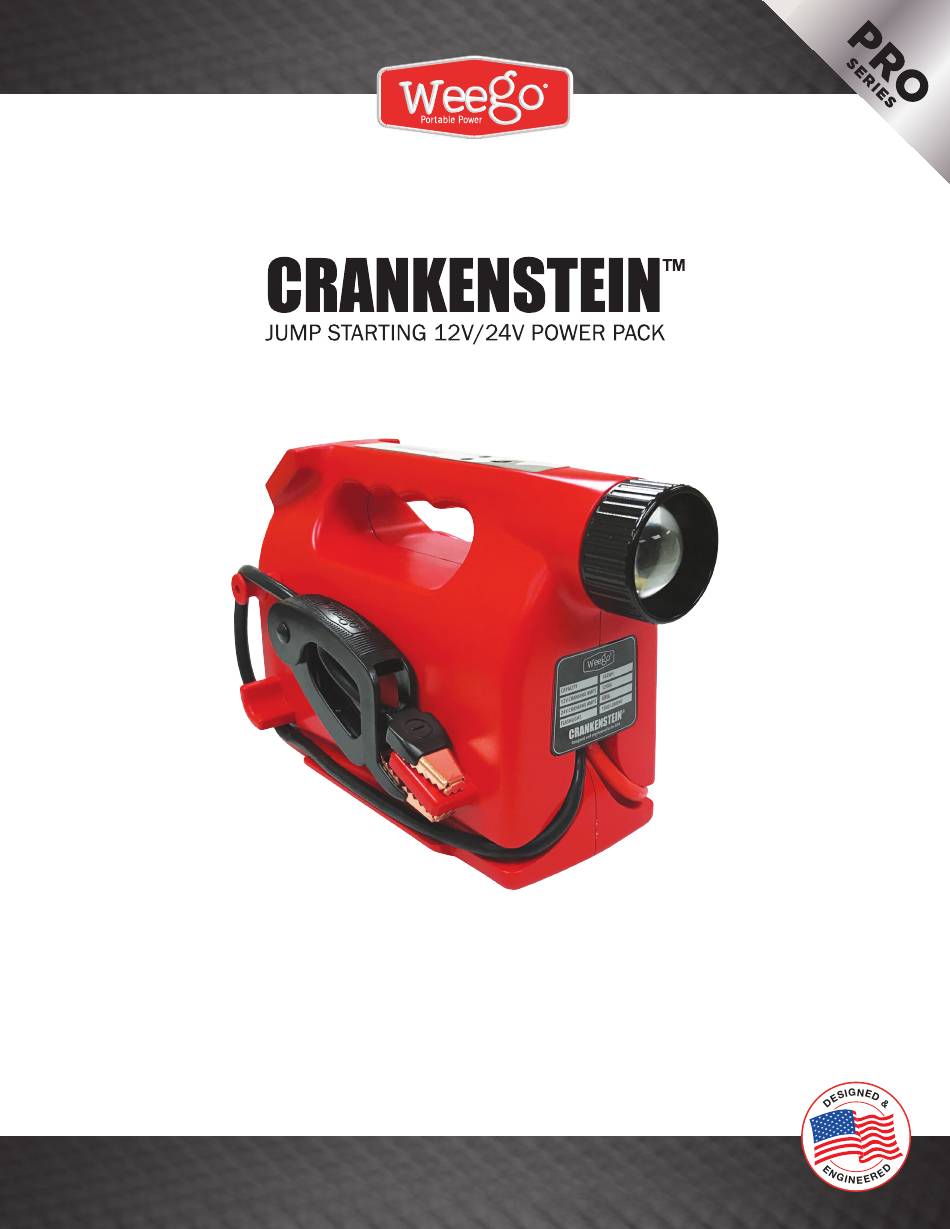

Page 1 OWNER’S MANUAL Model No. C154 Page 1 01/19...
Page 2: Table Of Contents
OLED Message Index ............................... Page 12 Troubleshooting ............................... Page 17 Warranty ................................. Page 18 WEEGO CUSTOMER SERVICE We are dedicated to providing the best possible service. To reach Weego Customer Support, visit us at myweegopro.com/support or email support@myweego.com. Page 2...
Page 3: Specifications
Thank you for choosing Crankenstein This product was developed to be powerful, durable, versatile, and to make jump starting more safe and simple than any alternative. Crankenstein features high-output currents at dual voltages (12V & 24V), as well as advanced lighting, charging and powering features.
Page 4: Key
NOTE: throughout the manual you will see these numbers referenced please refer back to the callouts on this page. Flashlight Button Flashlight Brightness Dial 12 Volt Mode Activation Button USB-A Port 24 Volt Mode Activation Button USB-C Port Flashlight Bezel - Flashlight focus can be adjusted by USB-AC/DC Charging Kit sliding the bezel forward (focus) or backward (flood) Storage Bag...
Page 5: Protections & Features
Connection Detection Connection Detection is a Weego-exclusive feature that helps the user make the best possible connection to the vehicle battery. A poor connection can cause a failed jump start, and therefore we aim to make the quality of the connection known so that the user can adjust the clamps to achieve maximum and optimal connections.
Page 6: Getting Started
Getting Started REGISTER YOUR WEEGO Be sure to register your Crankenstein using the serial number located at the bottom of the unit and on the charging screen (the screen that appears when you’re charging your unit). This will allow us to best serve you if any issues arise. Register online at myweegopro.com/product-registration.
Page 7: Jump Starting
Jump Starting BEFORE YOU JUMP • Read all instructions and safety information prior to using this product. • Read the owner’s manual of your equipment; it may have specific instructions on how to jump start. • This product is for use on 12V or 24V lead-acid batteries ONLY. •...
Page 8: Lighting, 12V Cla Power, Usb Charging
12V Mini Clamps Weego’s 12V Mini Clamps allow you to power your tools and devices through the 12V/20A CLA port located on the back of the Crankenstein unit. Check to make sure the device you’re connecting to will draw 20A of power or less; if not, Crankenstein will not operate. To use the Mini Clamps: 1.
Page 9: Weego Temperature Ranges
Weego Temperature Ranges All lithium iron phosphate batteries have recommended temperature ranges for different scenarios - there’s one for using your product, one for recharging your product and one for storing your product. All should be adhered to ensure the safety, longevity and performance of your Crankenstein.
Page 10: Important Safety Information
Read all instructions and warnings prior to using this product. Improper use of this product will void your warranty and may result in product damage, excess heat, toxic fumes, fire, and other unsafe situations for which Weego is not responsible.
Page 11: Voltage Disparity Table
Voltage Disparity Table Below is a guide to Crankenstein’s voltage limitations when the unit is in either 12V or 24V mode. The built-in volt meter will measure and display your vehicle’s battery voltage (VB) in the lower right corner of the OLED screen. If the battery voltage does not align with the chosen jump mode, you will receive a warning message (refer to the OLED Message Index on pages 12 - 16 for a list of warning messages).
Page 12: Oled Message Index
OLED Message Index MODE SCREENS Mode Screen 1 This screen displays when the unit is in recharge mode. The battery indicator will display the progress of the recharge. Your unit’s serial number also displays during the recharge. Record your serial number here: ___________________ for when you register your product.
Page 13 OLED Message Index MODE SCREENS CONTINUED Mode Screen 7 When this screen displays it means that Crankenstein has entered Hotfoot™ mode. Hotfoot enacts when you turn on Crankenstein and it senses that its internal batteries are between -5°F and -28°F. Crankenstein will warm itself up to -5°F, at which point you can effectively jump start.
Page 14 OLED Message Index 12V WARNING SCREENS Warning When you select 12V jump mode, this screen will appear to confirm that the 12V jump mode was activated. Screen 1 Warning When you are in 12V jump mode and your vehicle’s battery voltage is measuring above 15V, this screen will appear.
Page 15 OLED Message Index 24V WARNING SCREENS CONTINUED Warning When you are in 24V jump mode and your vehicle’s battery is measuring below 2V (even after Crankenstein has tried Screen 4 to “trickle charge”), this screen will appear. Your battery is unable to reach/hold 2V and you will be unable to jump.
Page 16 OLED Message Index ADDITIONAL WARNING SCREENS CONTINUED Warning Crankenstein is equipped with temperature protection to ensure the safety of you and your product. If the temperature Screen 4 surpasses the allowable limit, this screen will appear. You will not be able to use the unit until this message disappears, indicating that the batteries have cooled to an acceptable temperature.
Page 17: Troubleshooting
Troubleshooting Issue Solution Crankenstein does not automatically awaken when connecting the It’s posible your battery is sitting at a very low voltage (< 0.5V). clamps to a vehicle battery. Select the voltage mode in which you wish to jump (12V or 24V) to power on the system.
Page 18: Warranty
Failure to register your product and to provide proof of purchase may void the warranty. Check for the latest product updates at myweegopro.com when registering your purchase or when obtaining service. To obtain warranty service, contact our Weego Customer Service Specialist on our CONTACT PAGE.
