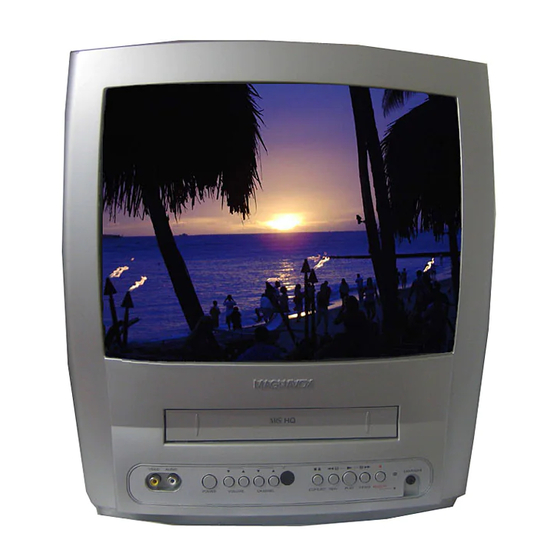

Third generation. tv-vcr combination
Hide thumbs Also See for MC132EMG/17:

Advertisement

www.freeservicemanuals.info
TV-VCR Combination
Service
Service
Service
Service Manual
Contents
Chapter
Sec. 1: Adjustment Procedures
Schematic Diagrams and CBA's
Exploded Views
Mechanical and Electrical Parts Lists
Sec. 2: Standard Maintenance
Mechanism Alignment Procedures
Disassembly / Assembly of Mechanism
Deck Exploded Views
Deck Parts List
This service manual is for MC132EMG/17 Third
Generation model, which is different from the
previous generation MC132EMG/17 models.
For Third Generation model, the serial number begins
with DD5Axxxxxxxxxx.
Refer to the rating label illustration at right.
c Copyright 2005 Philips Consumer Electronics B.V. Eindhoven, The Netherlands.
All rights reserved. No part of this publication may be reproduced, stored in a retrieval
system or transmitted, in any form or by any means, electronic, mechanical, photocopying,
or otherwise without the prior permission of Philips.
Published by FU-KC 0524 Service AV Systems
Survey of versions:
/17
NTSC
Printed in The Netherlands
MC132EMG/
Third Generation
rating label
serial number
Subject to modification
It`s Free
17
EN 3139 785 31370
